Assembly Airhead / Valve LP 32226300 Replacement
Regular price
₹0.00
Assembly Airhead / Valve LP 32226300 Replacement
Regular price
₹0.00
DESCRIPTION
Assembly Airhead / Valve Low Pressure 32226300 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Assembly, Airhead/Valve - Low Pressure 32226300 for Ingersoll Rand Air Compressor - Type-30 from India

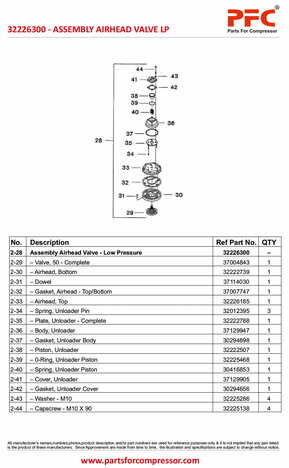

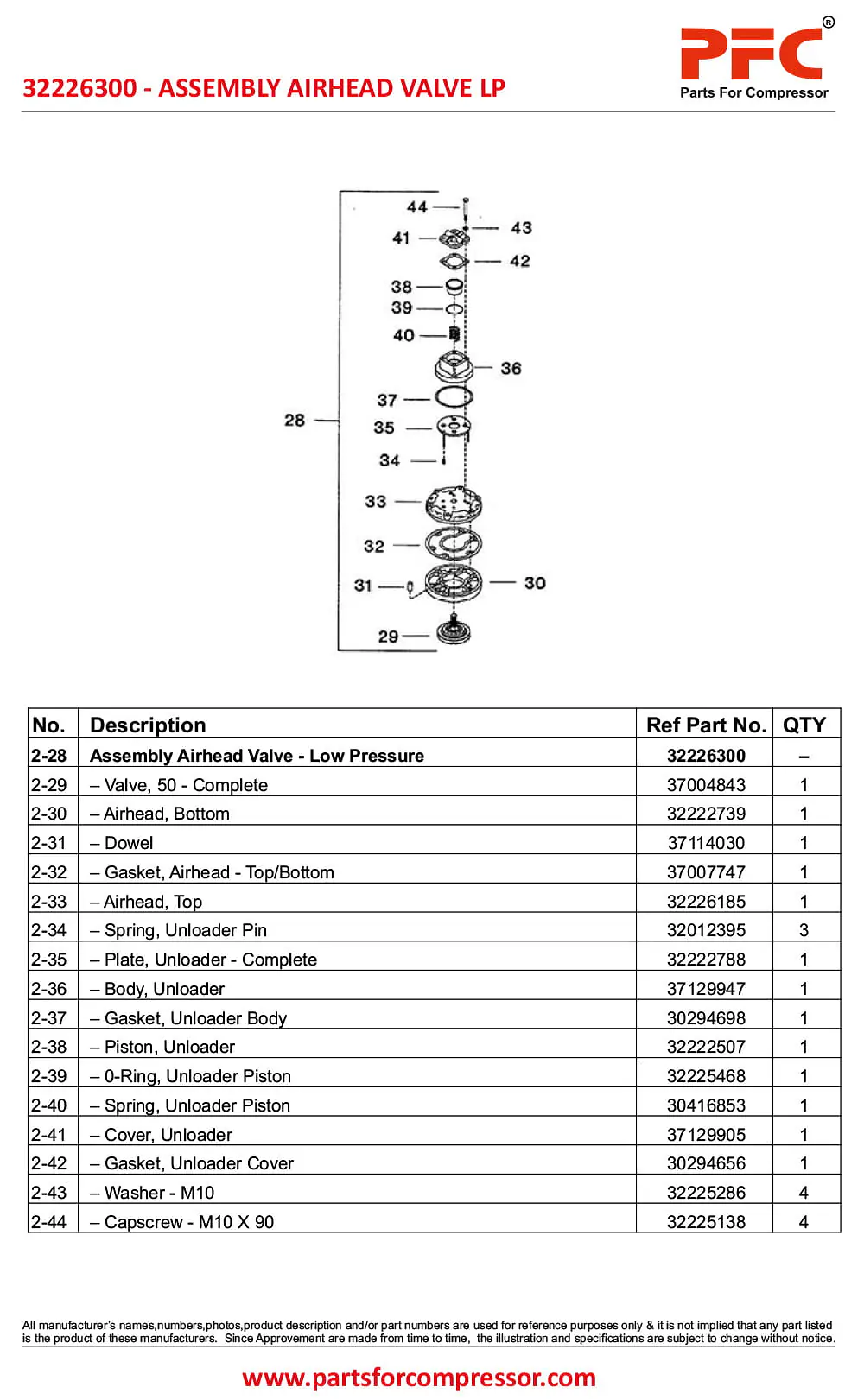

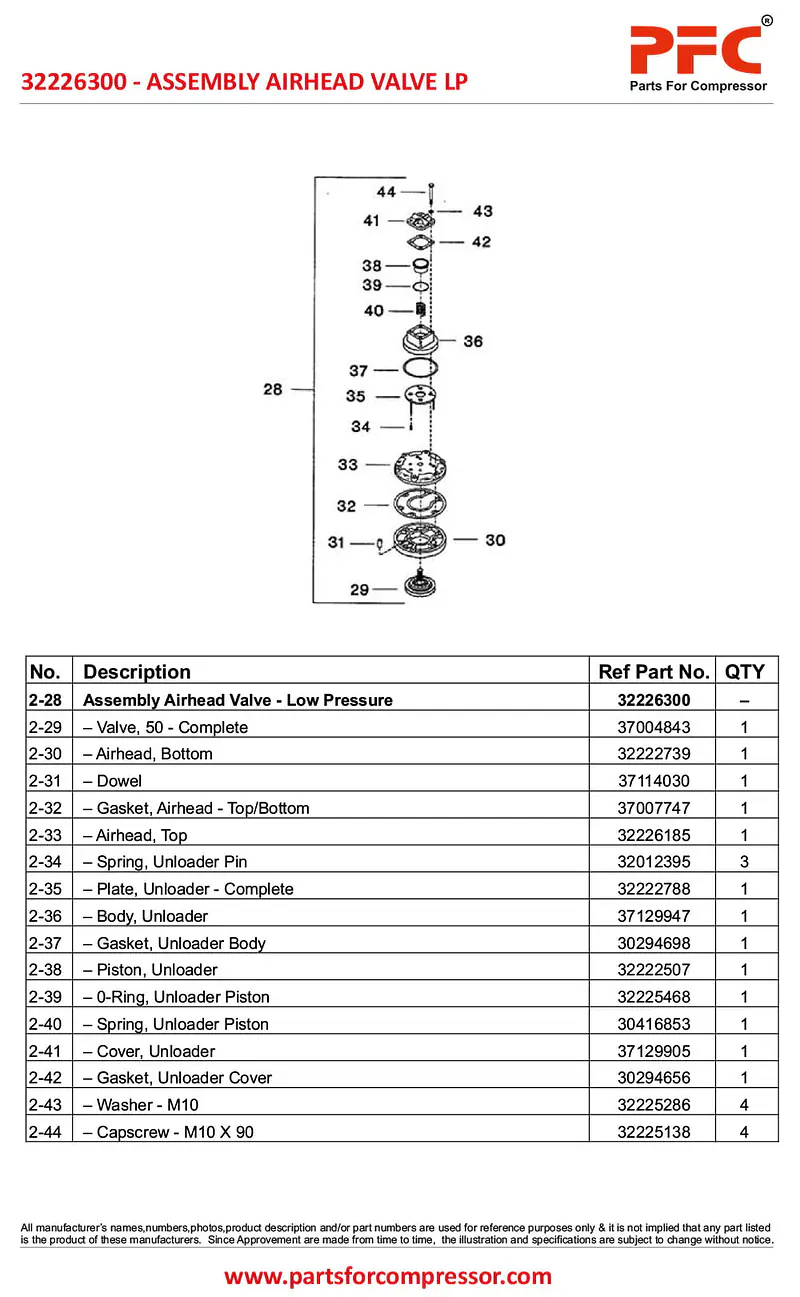

32226300 - ASSEMBLY AIRHEAD VALVE LP
| No. | Description | Ref Part No. | QTY |
| 2-28 | Assembly Airhead Valve - Low Pressure | 32226300 | – |
| 2-29 | – Valve, 50 - Complete | 37004843 | 1 |
| 2-30 | – Airhead, Bottom | 32222739 | 1 |
| 2-31 | – Dowel | 37114030 | 1 |
| 2-32 | – Gasket, Airhead - Top/Bottom | 37007747 | 1 |
| 2-33 | – Airhead, Top | 32226185 | 1 |
| 2-34 | – Spring, Unloader Pin | 32012395 | 3 |
| 2-35 | – Plate, Unloader - Complete | 32222788 | 1 |
| 2-36 | – Body, Unloader | 37129947 | 1 |
| 2-37 | – Gasket, Unloader Body | 30294698 | 1 |
| 2-38 | – Piston, Unloader | 32222507 | 1 |
| 2-39 | – 0-Ring, Unloader Piston | 32225468 | 1 |
| 2-40 | – Spring, Unloader Piston | 30416853 | 1 |
| 2-41 | – Cover, Unloader | 37129905 | 1 |
| 2-42 | – Gasket, Unloader Cover | 30294656 | 1 |
| 2-43 | – Washer - M10 | 32225286 | 4 |
| 2-44 | – Capscrew - M10 X 90 | 32225138 | 4 |
