Assembly Valve Inlet & Fau A67 70204359
Regular price
₹0.00
Assembly Valve Inlet & Fau A67 70204359
Regular price
₹0.00
DESCRIPTION

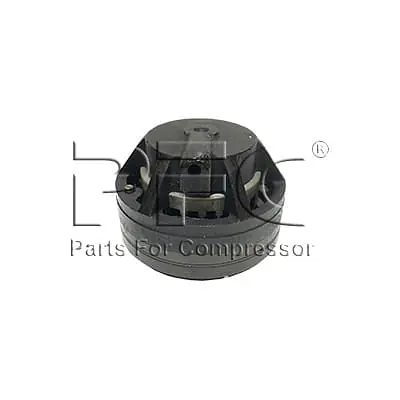

Assembly Valve Inlet & Fau A67 70204359 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Assembly Valve Inlet & Fau A67 70204359 for Ingersoll Rand Air Compressor - IHE from India.

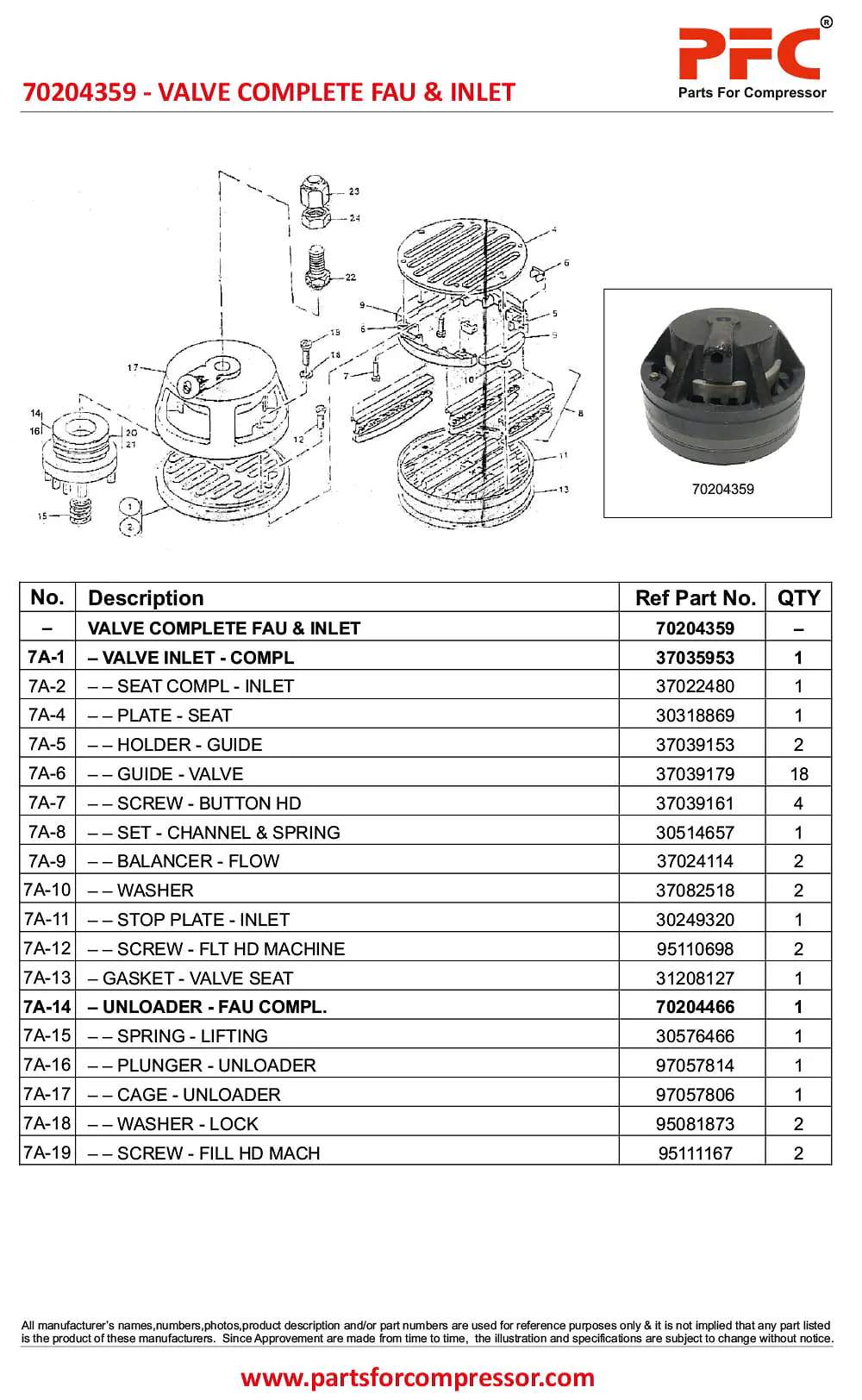

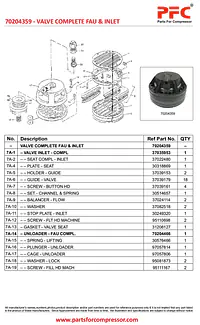

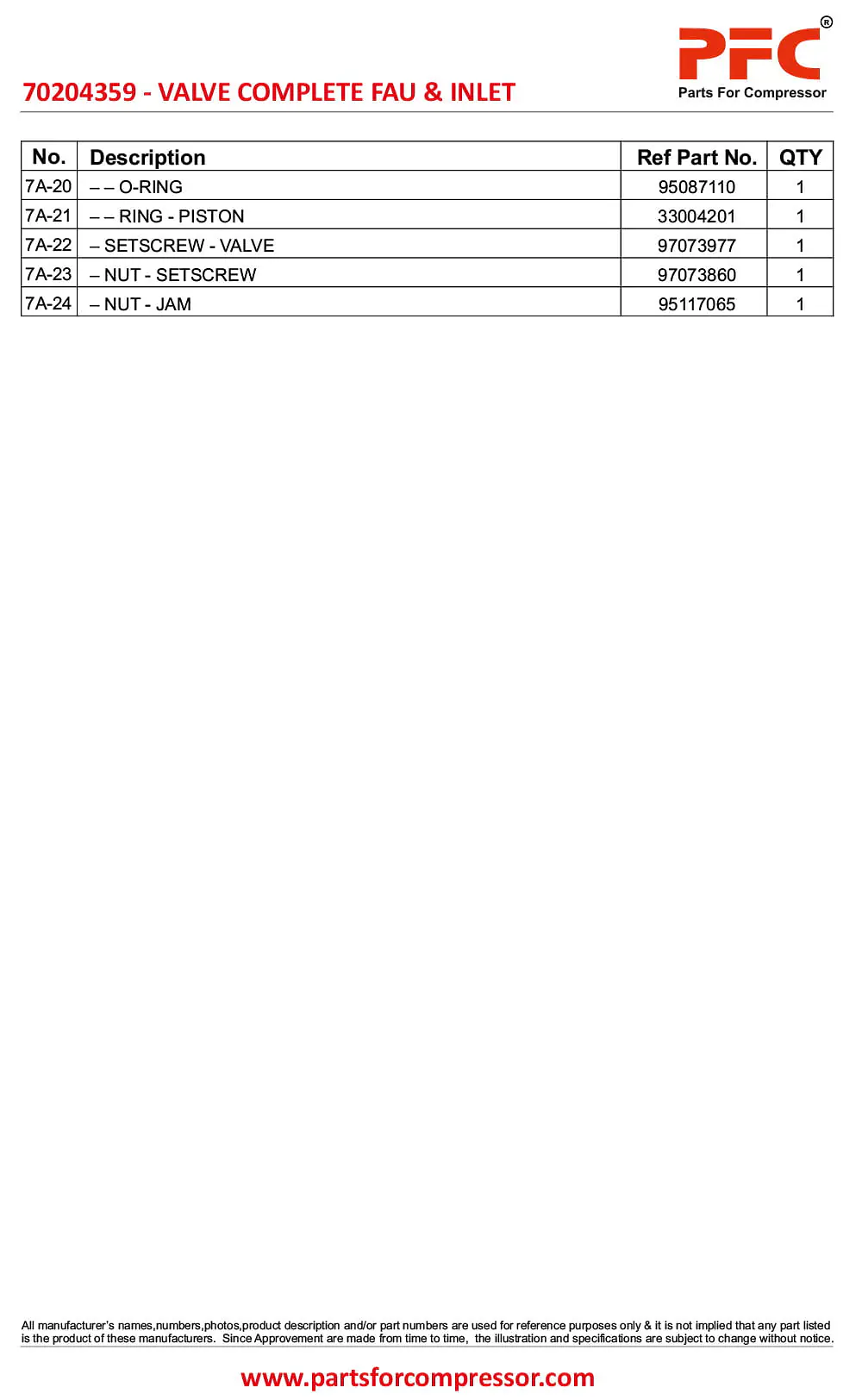

Assembly Valve Inlet & Fau A67 70204359
| No. | Description | Ref Part No. | QTY |
| - | VALVE COMPLETE FAU & INLET | 70204359 | - |
| 7A-1 | – VALVE INLET - COMPL | 37035953 | 1 |
| 7A-2 | – – SEAT COMPL - INLET | 37022480 | 1 |
| 7A-4 | – – PLATE - SEAT | 30318869 | 1 |
| 7A-5 | – – HOLDER - GUIDE | 37039153 | 2 |
| 7A-6 | – – GUIDE - VALVE | 37039179 | 18 |
| 7A-7 | – – SCREW - BUTTON HD | 37039161 | 4 |
| 7A-8 | – – SET CHANNEL & SPRING | 30514657 | 1 |
| 7A-9 | – – BALANCER - FLOW | 37024114 | 2 |
| 7A-10 | – – WASHER | 37082518 | 2 |
| 7A-11 | – – STOP PLATE - INLET | 30249320 | 1 |
| 7A-12 | – – SCREW - FLT HD MACHINE | 95110698 | 2 |
| 7A-13 | – GASKET - VALVE SEAT | 31208127 | 1 |
| 7A-14 | – UNLOADER - FAU COMPL. | 70204466 | 1 |
| 7A-15 | – – SPRING-LIFTING | 30576466 | 1 |
| 7A-16 | – – PLUNGER - UNLOADER | 97057814 | 1 |
| 7A-17 | – – CAGE - UNLOADER | 97057806 | 1 |
| 7A-18 | – – WASHER-LOCK | 95081873 | 2 |
| 7A-19 | – – SCREW - FILL HD MACH | 95111167 | 2 |
| 7A-20 | – –O-RING | 95087110 | 1 |
| 7A-21 | – –RING - PISTON | 33004201 | 1 |
| 7A-22 | – SETSCREW - VALVE | 97073977 | 1 |
| 7A-23 | – NUT-SETSCREW | 97073860 | 1 |
| 7A-24 | – NUT - JAM | 95117065 | 1 |
