DESCRIPTION

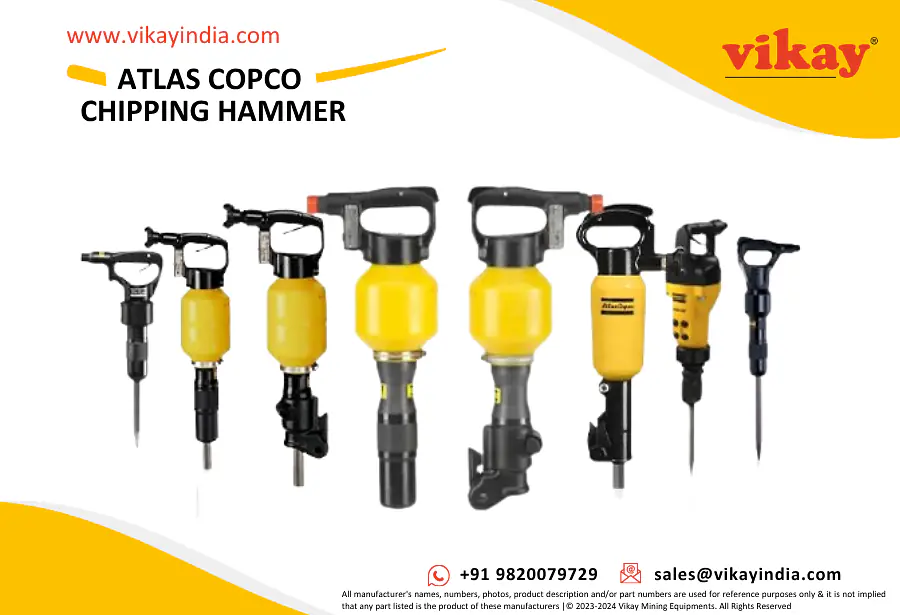

Atlas Copco Chipping Hammers
Vikay Mining Equipments is a worldwide distributor of OEM quality Atlas Copco Chipping Hammers - TEX 03 PS, TEX 05 PE, TEX 09 PS KL, TEX 10 PS, TEX 12 PS suitable for all types of construction and industrial applications from India.
| Pneumatic hammers | TEX 05PE | TEX 07PE | TEX 09PE | TEX 12 PE |
| Weight - kg | 65 | 87 | 105 | 12 |
| Length - mm | 450 | 525 | 560 | 590 |
| Air consumption - l/s | 10 | 17 | 17 | 20 |
| Impact rate - blows/min | 2640 | 1770 | 1800 | 1620 |
| Vibration level 3 axes (ISO 28927-10) - m/s² | 24 | 124 | 42 | 40 |
| Sound power level guaranteed (2000/14/EC) - Lw dB(A) | 105 | 104 | 105 | 105 |
| Sound pressure level (ISO 11203) - Lp r=1m | 87 | 87 | 93 | 93 |
| Tool retainer | cap | cap | latch | latch |
| Shank size HEX - mm | 19x50 | 19x50 | 22x825 | 22x825 |
| Part number (HEX shank) | 8461021910 | 8461020920 | 8461021135 | 8461021138 |
| Shank size round shank - mm | - | - | 25x75 | 25x75 |
| Part number (R) | - | - | 8461021136 | 8461021139 |
| Pneumatic hammers | TEX 03 PS | TEX 10 PS | TEX 12 PS |
| Weight - kg | 40 | 10 | 105 |
| Length - mm | 300 | 520 | 550 |
| Air consumption - l/s | 69 | 17 | 213 |
| Impact rate - blows/min | 4140 | 1350 | 1600 |
| Vibration level 3 axes (ISO 28927-10) - m/s² | 165 | 224 | 154 |
| Sound power level guaranteed (2000/14/EC) - Lw dB(A) | 105 | 102 | 105 |
| Sound pressure level (ISO 11203) - Lp r=1m | 89 | 90 | 93 |
| Tool retainer - | cap | cap | cap |
| Shank size HEX - mm | 19x50 | 22x825 | 22x825 |
| Part number (HEX shank) - | 8461020801 | 8461021130 | 8461021113 |
| Part number KIT - | 8461020802 | 8381020040 | |
| Shank size round shank - mm | 25x75 | 25x75 | |
| Part number (round shank) - | - | 8461021131 | 8461021114 |
| Pneumatic hammers | TEX 09 PS KL | TEX 10 PS KL | TEX 12 PS KL |
| Weight - kg | 12 | 105 | 125 |
| Length - mm | 500 | 500 | 545 |
| Air consumption - l/s | 185 | 17 | 213 |
| Impact rate - blows/min | 1800 | 1350 | 1600 |
| Vibration level 3 axes (ISO 28927-10) - m/s² | 161 | 224 | 154 |
| Sound power level guaranteed (2000/14/EC) - Lw dB(A) | 105 | 103 | 105 |
| Sound pressure level (ISO 11203) - Lp r=1m | 93 | 91 | 92 |
| Tool retainer | kick-latch | kick-latch | kick-latch |
| Shank size HEX - mm | 22x825 | 22x825 | 22x825 |
| Part number (HEX shank) | 8461021105 | 8461021132 | 8461021112 |
| Part number KIT | 8381020038 | 8381020041 | |
| Shank size round shank - mm | 25x75 | ||
| Part number (round shank) | - | - | 8461021115 |
