Atlas Copco Hand Drill
Regular price
₹0.00
Atlas Copco Hand Drill
Regular price
₹0.00
DESCRIPTION

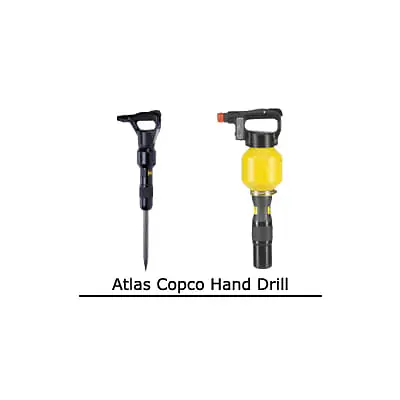

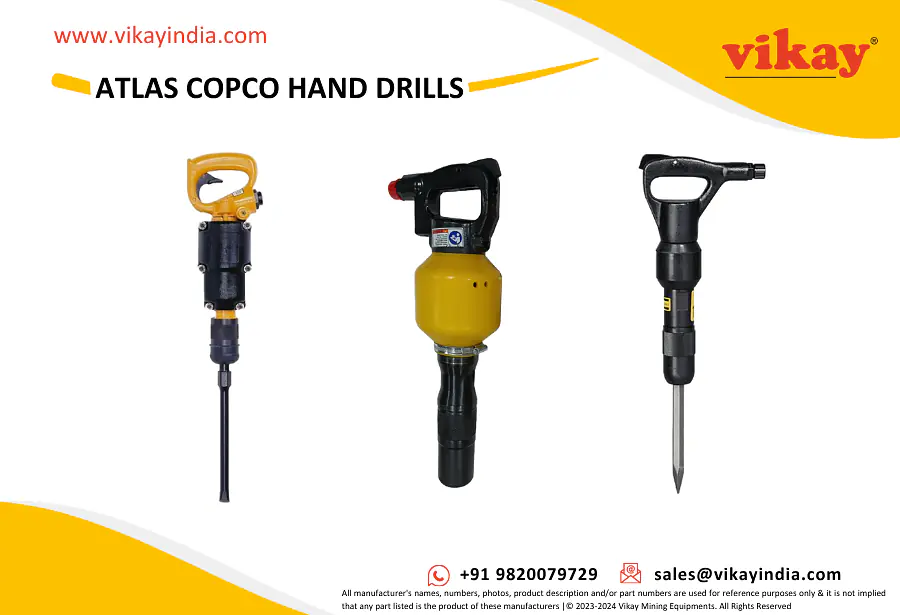

Atlas Copco Hand Drill
Vikay Mining Equipments is a global supplier of Hand Drill - TEX 05P Hammer Atlas Copco Hand Drill, TEX 09PS Hammer Atlas Copco Hand Drill from India.
| Particulars | TEX 05P | TEX 09PS |
| Hammer type | Chipping hammer | Pick Hammer |
| Hammer version | Standard | Standard |
| Tool retainer | cap | Cap |
| Weight (kg) | 5.5 kg | 10 Kg |
| Length (mm) | 380 mm | 500 mm |
| Air consumption (l/s) | 9.5 l/s | 18.5 l/s |
| Impact Rate (bpm) | 2760 blows/min | 1800 blows/min |
| Vibration level 3 axes (ISO 28927-10) | 13 m/s² | 16.1 m/s² |
| Sound power level guaranteed Lw (2000/14/EC)** | 104 dB(A) | 103 dB(A) |
| Sound pressure level (ISO 11203)** Lp r=1m | 92 dB(A) | 91 dB(A) |
| Shank Size (mm) | Hex 19x50 | Hex 22x825 |
| Shank Size (inch) | Hex 3/4x2 | Hex 7/8x3 ¼ |
| Part Number | 8461021900 | 8461021102 |
| Stock Code No | 8461021901 |
| Pneumatic Combi Drills / Pneumatic Hammers | DKR 36 | DKR 36R |
| Weight - kg | 45 | 45 |
| Length - mm | 375 | 375 |
| Air consumption at 6 bar - l/s | 10 | 10 |
| Impact rate - blows/min | 2820 | 2820 |
| Revolutions - rpm | 250 | 250 |
| Penetration rate - mm/min | 180 /160 | 180 /160 |
| Hose connection - mm | 19 | 19 |
| Vibration level 3 axes (ISO 28927-10) - m/s² | 202 (breaking) 212 (drilling) | 202 (breaking) 212 (drilling) |
| Sound power level guaranteed (2000/14/EC) - Lw dB(A) | 103 | 103 |
| Sound pressure level (ISO 11203) - Lp r=1m | 88 | 88 |
| Shank size - mm | R19 x H147 x 89 | R19 x 95 |
| Part number | 8463010360 | 8463010350 |
