DESCRIPTION

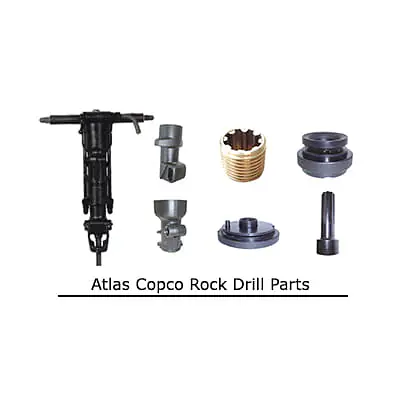

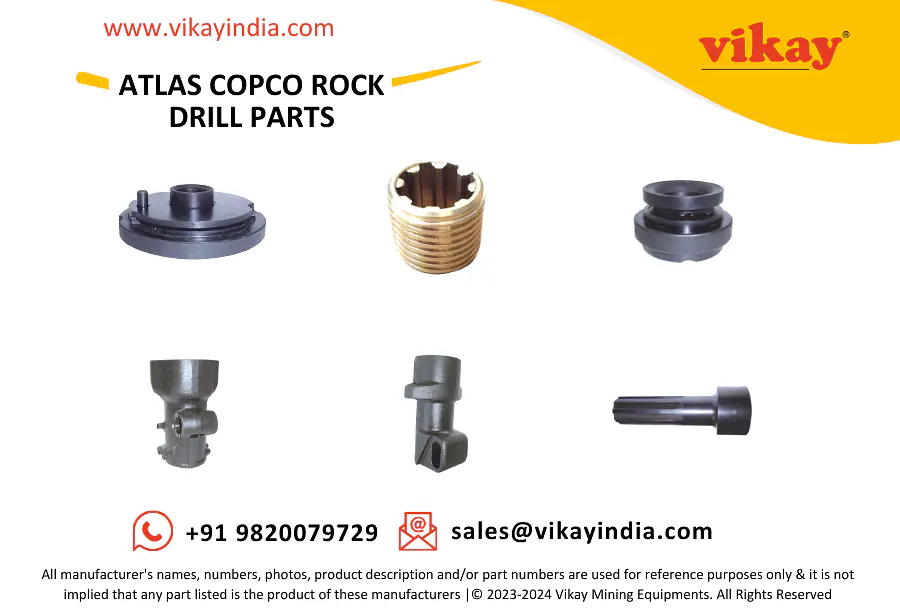

Atlas Copco Rock Drill Parts
Vikay Mining Equipments is a global supplier of Atlas Copco Rock Drill Parts - Rh 658 Atlas Copco Rock Drill Parts, Rh 571 Atlas Copco Rock Drill Parts, Rh 572E Atlas Copco Rock Drill Parts, Bbd 12D Atlas Copco Rock Drill Parts, Bbd 12T01 Atlas Copco Rock Drill Parts, Bbd 15E Atlas Copco Rock Drill Parts, Bbc 34 DSI Atlas Copco Rock Drill Parts, Bbd 94 DSI Atlas Copco Rock Drill Parts from India.
| RH 571 | RH 658 | BBD 12D | |||
| Description | Ref. Part No. | Description | Ref. Part No. | Description | Ref. Part No. |
| Drill steel retainer | 3121085100 | Drill steel retainer Hexagon 22 mm | 3121085100 | Drill retainer | 3115247500 |
| Retainer pin | 3121085200 | Retainer pin | 3121085200 | Retainer pin | 3115248000 |
| Tension pin | 108339200 | Tension pin | 108339200 | Sleeve | 3115248100 |
| Rubber buffer | 3121003000 | Rubber buffer | 3121003000 | Slotted spring pin | 108135900 |
| Buffer plate | 3121002900 | Buffer plate | 3121002900 | Rubber buffer | 3111005700 |
| Front head | 3111014100 | Dome nut | 3121029200 | Buffer plate | 3111005600 |
| Nut | 266120800 | Front head | 3121034200 | Front head | 3111005300 |
| Rotation chuck, complete (9-10) | 3111018580 | Rotation chuck, complete (9-11) | 3121076980 | Cap nut | 3111003100 |
| - Rotation Chuck | --- | - Rotation chuck | --- | Conical spring | 3111002300 |
| - Chuck bushing Hexagon 22 x 108 mm | 3111018600 | - Rotation chuck bushing Hexagon 22 x 108 mm | 3121002300 | Pawl | 3111002000 |
| Intermediate part | 3111014300 | - Chuck nut | 3115122100 | Drill chuck | 3111005100 |
| Piston, complete (13-14) | 3111016280 | Intermediate part | 3121033900 | Driver | 3111002400 |
| - Piston | --- | Piston, complete (14-15) | 3100847880 | Ratchet wheel | 3111001900 |
| - Rifle nut | 3100929908 | - Piston | --- | Intermediate part | 3111001700 |
| Cylinder | 3106082500 | - Rifle nut | 3100929905 | Piston | 3111001600 |
| Spring pin | 108123800 | Cylinder | 3121033700 | Cylinder | 3111001500 |
| Main valve | 3101158601 | Outlet valve | 3115177800 | Cover compl. | 3111001380 |
| Throttle housing, complete (19-25) | 3115116380 | Lever for extra blowing | 3115177900 | - Cover | |
| - Throttle housing | --- | Guide disc | 3106868300 | - Guide pin | 3111001400 |
| - Lever | 3115119100 | Ratchet box | 3106868200 | - Pin | 108324100 |
| - Hexagon nipple | 9000034500 | Tension pin | 108133600 | Main valve | 3111001200 |
| - Throttle valve | 3115119000 | Rifle bar | 3101315400 | Handle compl. | 3115248380 |
| - Lever | 3101366400 | Pawl, complete (24-26) | 3115920090 | - Handle | |
| - Coil spring | 3001395701 | - Pressure spring | 3100914002 | - Trigger | 3111000200 |
| - Exhaust valve | 3101498800 | - Plunger | 3100964101 | - Pin | 108132700 |
| Nut | 3000134500 | - Pawl | 3101315900 | - Nut | 3510014300 |
| Lock washer | 333313900 | Guide pin | 3100966500 | - Valve pin | 3111000300 |
| Bolt | 3100019406 | Cover, complete (29-30) | 3106868080 | - Rubber ball | 3111019600 |
| Hose nipple | 3115154300 | - Cover | - | - Conical spring | 3111000400 |
| Wing nut | 9000033800 | - Bushing | 3100989401 | - Washer | 3111001000 |
| Cover | 3106082700 | Main valve | 3106868100 | - Ball retainer | 3111000500 |
| Rifle bar | 3111014500 | Back head | 3115056900 | Side bolt | 3111019700 |
| Pawl, complete (34-36) | 3115920090 | Throttle valve | 3121034900 | Hose nipple | 9000024300 |
| - Pressure spring | 3100914002 | Washer | 3115104500 | Silencer,compl. | 8092010449 |
| - Pawl pin | 3100964101 | Adapter | 9000034500 | - Hose clamp | 347611700 |
| - Pawl | 3101315900 | Hose nipple | 3115117000 | - Silencer upper part | 3115077100 |
| Ratchet ring | 3115116700 | Cap nut | 9000033300 | O Ring | 663615100 |
| Back head | 3115116600 | Pin | 3121032900 | - Silencer lower part | 3115077200 |
| Rubber packing | 3000012100 | Coil spring | 3121500051 | - Hose clamp | 347611600 |
| Spring pin | 108136000 | Lock washer | 3121033200 | - Bushing | 3115077300 |
| Handle, complete (42-43) | 3310056980 | O-ring | 663212800 | ||
| - Handle | --- | Throttle lever | 3115057300 | ||
| - Bushing | 3310057200 | Nut | 3006873400 | ||
| Air flushing tube | 3111014000 | Handle grip | 3101137200 | ||
| Seal washer | 3100934100 | Washer | 3000011901 | ||
| Side bolt | 3111014400 | Dome nut | 3121029200 | ||
| Plug | 3100012000 | Side bolt | 3121034300 | ||
| Data Plate | --- | Washer | 3115057400 | ||
| Safety label | 3310160200 | Air flushing tube | 3121035200 | ||
| Packing | 3121033600 | ||||
| Sealing washer | 3000934102 | ||||
| Adapter | 3100962301 | ||||
| Sealing washer | 3101414600 | ||||
| Protective nut | 3100964301 | ||||
| Handle bolt | 3121036000 | ||||
| Data plate | - | ||||
| Safety label | 3310160200 |
