DESCRIPTION
Bare Compressor For Ingersoll Rand Type 30 - Model 2340
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Bare Compressor For Ingersoll Rand Type 30 - Model 2340 from India.

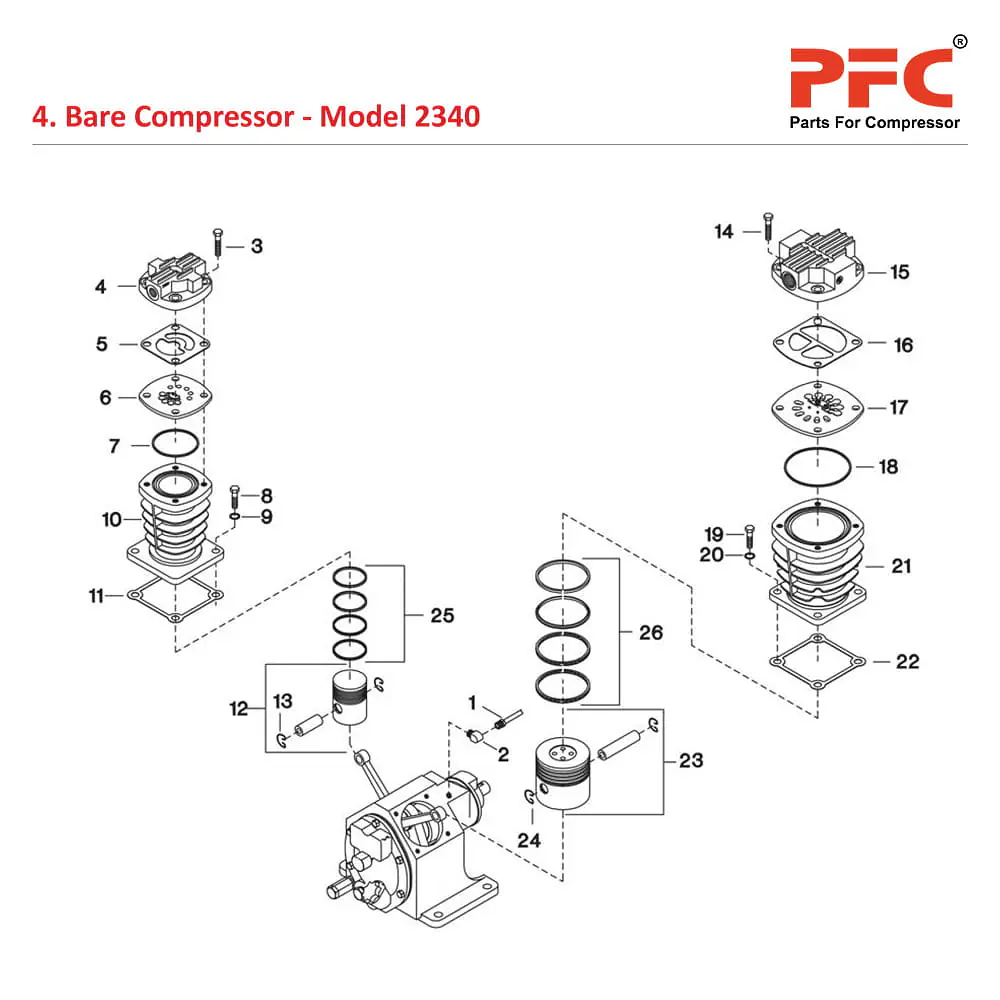

Bare Compressor
| Sr.No | Ref. Part Number | Description | Qty |
| 4-1 | 32295651 | Assy., Tube - Breather | 1 |
| 4-2 | 95031860 | Elbow, Tube -5/16 X 1/8" | 2 |
| 4-3 | 95104188 | Capscrew, Hex -1/2-13 X 1 -3/4" | 4 |
| 4-4 | 32247827 | Head, HP | 1 |
| 4-5 | 32247926 | Gasket, Head - HP | 1 |
| 4-6 | REF. | Assy., Valve Plate - HP (See Fig. B) | 1 |
| 4-7 | 32246878 | O-Ring - HP | 1 |
| 4-8 | 95035333 | Capscrew, Hex -3/8-16 X 1" | 4 |
| 4-9 | 95674677 | Gasket, Copper - 3/8" | 4 |
| 4-10 | 32294415 | Cylinder, Air - HP | 1 |
| 4-11 | 32293623 | Gasket, Flange | 1 |
| 4-12 | 32496606 | Assy., HP Piston - Complete | 1 |
| 4-13 | 35151067 | – Ring, Lock | 2 |
| 4-14 | 95104188 | Capscrew, Hex - 1/2 -13 X 1-3/4" | 4 |
| 4-15 | 32247694 | Head, LP | 1 |
| 4-16 | 32247934 | Gasket, Head - LP | 1 |
| 4-17 | REF. | Assy., Valve Plate - LP (See Fig. C) | 1 |
| 4-18 | 32246910 | O-Ring - LP | 1 |
| 4-19 | 95035333 | Capscrew, Hex - 3/8-16 X 1" | 4 |
| 4-20 | 95674677 | Gasket, Copper - 3/8" | 4 |
| 4-21 | 32293656 | Cylinder - LP | 1 |
| 4-22 | 32293623 | Gasket, Flange | 1 |
| 4-23 | 32496572 | Assy., LP Piston - Complete | 1 |
| 4-24 | 35151067 | – Ring, Lock | 2 |
| 4-25 | 37138237 | Set, Ring - HP | 1 |
| 4-26 | 32194276 | Set, Ring - LP | 1 |
