DESCRIPTION
Bare Compressor for Type 30 Model 3000 Replacement Parts
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for -Bare Compressor for Ingersoll Rand Type 30 Model 3000 from India.

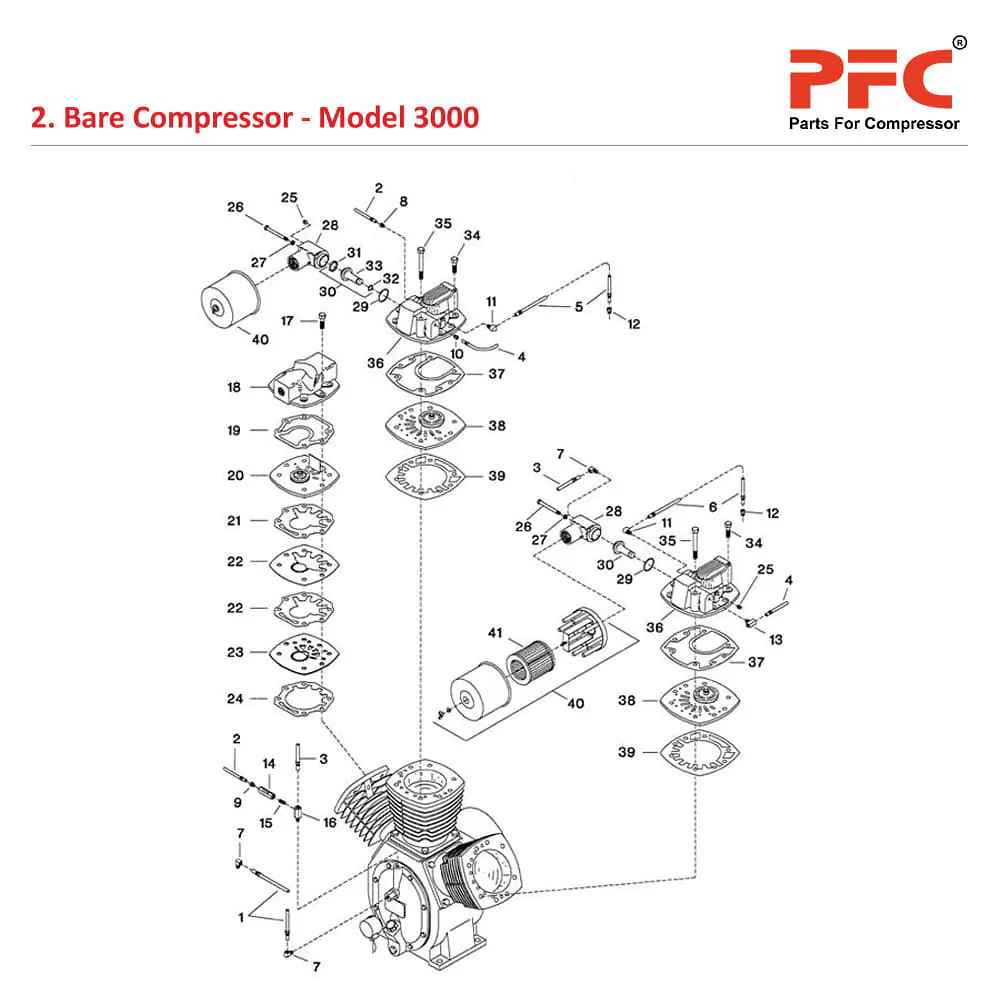

Bare Compressor
| Sr.No | Ref. Part Number | Description | Qty |
| 2-1 | 32172751 | Assembly, Tube -Pilot Valve/Intetcooler - 5/16" Dia. | 1 |
| 2-2 | 32200503 | Assembly, Tube -Check Valve/Center Head -5/16" Dia. | 1 |
| 2-3 | 32203432 | Assembly, Tube -Check Valve/Right-Hand Head -5/16" | 1 |
| 2-4 | 32183303 | Assembly, Tube -Center Head/Tee -5/16" Dia. | 1 |
| 2-5 | 32176695 | Assembly, Tube -Breather/Center Head - 3/8" Dia. | 1 |
| 2-6 | 32172777 | Assembly, Tube -Breather/Right-Hand Head -3/8" Dia. | 1 |
| 2-7 | 95110441 | Elbow, Tube - 5/16 X 1/4" | 3 |
| 2-8 | 32157554 | Connector, Male - 5/16 X 1/4" | 1 |
| 2-9 | 95082483 | Connector, Tube - 5/16 X 1/8" | 1 |
| 2-10 | 37144508 | Orifice, Connector - Tube | 1 |
| 2-11 | 95040143 | Elbow, Tube - 3/8 X 1/4" | 2 |
| 2-12 | 95083143 | Connector, Male - 3/8" X 1/4" | 2 |
| 2-13 | 32255721 | Tee, Unloader Orifice | 1 |
| 2-14 | 32001141 | Valve, Check | 1 |
| 2-15 | 95796017 | Nipple, Close - 1/8" X 3/4" | 1 |
| 2-16 | 32203242 | Connector, Tube - 5/16 X 1/4" Male Long | 1 |
| 2-17 | 95104196 | Capscrew, Hex - 1/2-13 X 2" | 6 |
| 2-18 | 32172199 | Head, Second Stage (High Pressure) | 1 |
| 2-19 | 32252801 | Gasket, Head - Second Stage | 1 |
| 2-20 | REF. | Assembly, Valve Plate - Second Stage (See Fig. C) | 1 |
| 2-21 | 32252819 | Gasket, Spacer Plate - Second Stage | 2 |
| 2-22 | 32228280 | Plate, Spacer - Second Stage | 1 |
| 2-23 | 32228272 | Plate, Disc - Second Stage | 1 |
| 2-24 | 32252827 | Gasket, Valve Plate - Second Stage | 1 |
| 2-25 | 95252409 | Plug, Pipe - Hex Head - 1/4" | 2 |
| 2-26 | 95035259 | Capscrew, Hex - 5/16-18 X 3-3/4" | 4 |
| 2-27 | 95043188 | Lockwasher, Spring - 5/16" | 4 |
| 2-28 | 32174336 | Cover, Unloader | 2 |
| 2-29 | 95026183 | O-Ring | 2 |
| 2-30 | 32256257 | Assembly, Unloader Piston | 2 |
| 2-31 | 32254740 | – Seal, Unloader Piston | 1 |
| 2-32 | 32188385 | – O-Ring, Unloader Piston | 1 |
| 2-33 | NSS | – Piston, Unloader | 1 |
| 2-34 | 95104188 | Capscrew - Hex 1/2-13 X 1-3/4" | 14 |
| 2-35 | 95104279 | Capscrew - Hex 1/2-13 X 4-1/4" | 2 |
| 2-36 | 32172207 | Head, First Stage (Low Pressure) | 2 |
| 2-37 | 32267502 | Gasket, Head - First Stage | 2 |
| 2-38 | REF. | Assembly, Valve Plate - First Stage (See Fig. D) | 2 |
| 2-39 | 32267510 | Gasket, Valve Plate - First Stage | 2 |
| 2-40 | 32109779 | Filter, Inlet - Complete | 2 |
| 2-41 | 32012957 | – Element, Filter - 10 Micron | 2 |
