BBC 120F Pneumatic Drifter | VK 12 Pneumatic Drifter

₹1.00

Pinch to
zoom

Quantity

DESCRIPTION

BBC 120F Pneumatic Drifter | VK 12 Pneumatic Drifter

The BBC 120F Pneumatic Drifter | VK 12 Pneumatic Drifter are powerful pneumatic rock drills designed for long hole drilling, bench drilling, and drifting operations. BBC 120 Pneumatic Drifters are suitable for both surface and underground applications, handling hole sizes from 51 mm to 89 mm (2" to 3½").

The BBC 120 model can be equipped with either 1¼-inch or 1½-inch shanks to suit different drilling requirements.



Key Features of BBC 120F Drifter

  • Remote Control Operation:
    BBC 120F drifter is equipped with a rifle-bar actuated rotation motor featuring eight pawls (four for each direction) for smooth and efficient engagement and disengagement.
  • Versatile Flushing System:
    BBC 120F Drifter is easily switchable between water flushing and air blowing modes, depending on drilling conditions.

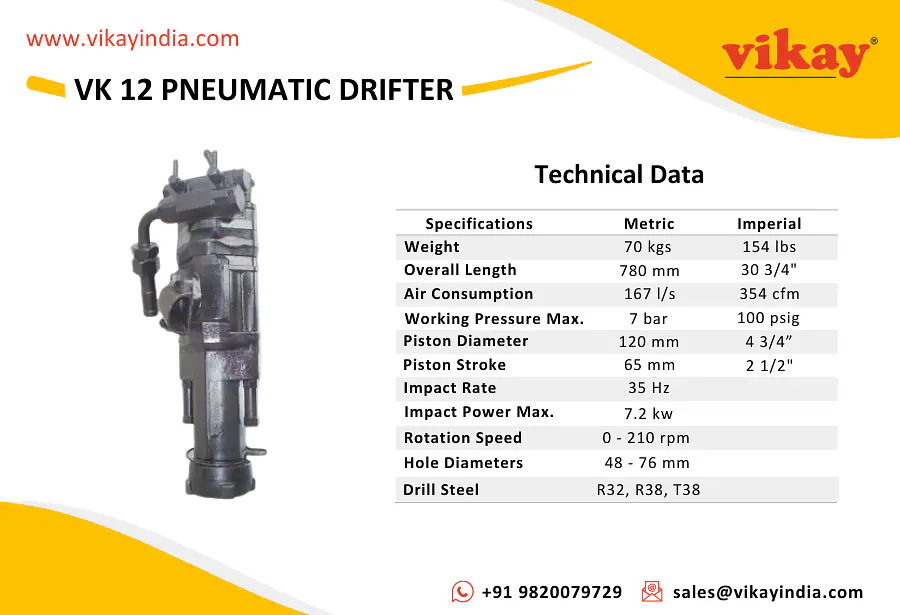

Technical Details

Model VK-12 (BBC 120F)
Weight 70 Kgs 154 lbs
Overall Length 780 mm 30 3/4"
Air Consumption 167 l/s 354 cfm
Working Pressure Max.      7 bar 100 psig
Piston Diameter 120 mm 4 3/4"
Piston Stroke 65 mm 2 1/2"
Impac Rate 35 Hz
Impact Power Max. 7.2 kW
Rotation Speed 0 - 210 rpm
Hole Diameters 48 - 76 mm
Drill Steel R32, R38, T38
