BBC-120FZ Atlas Copco Drifter Parts - Spare Parts for BBC 120FZ
Regular price
₹1.00
DESCRIPTION
BBC-120FZ Atlas Copco Drifter Parts - Spare Parts for BBC 120FZ

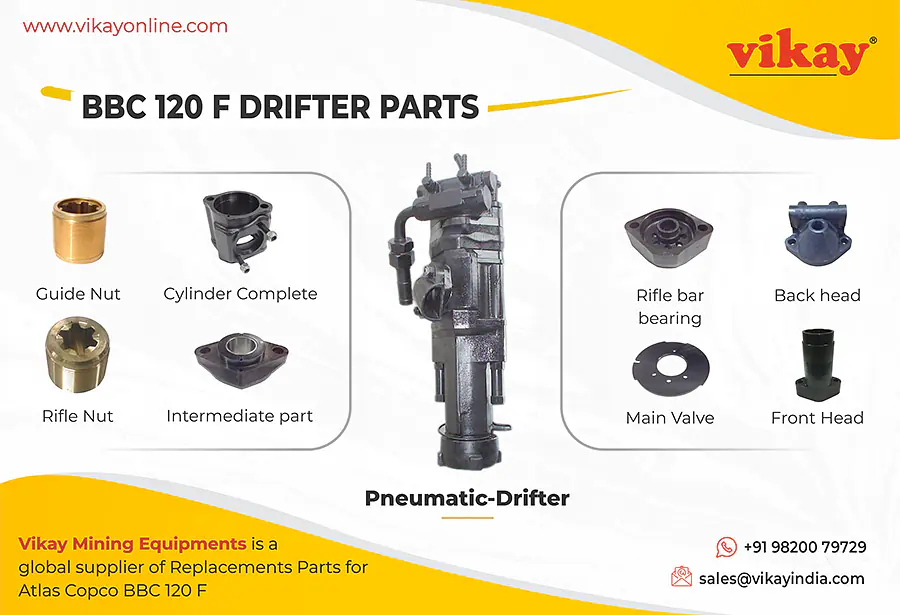

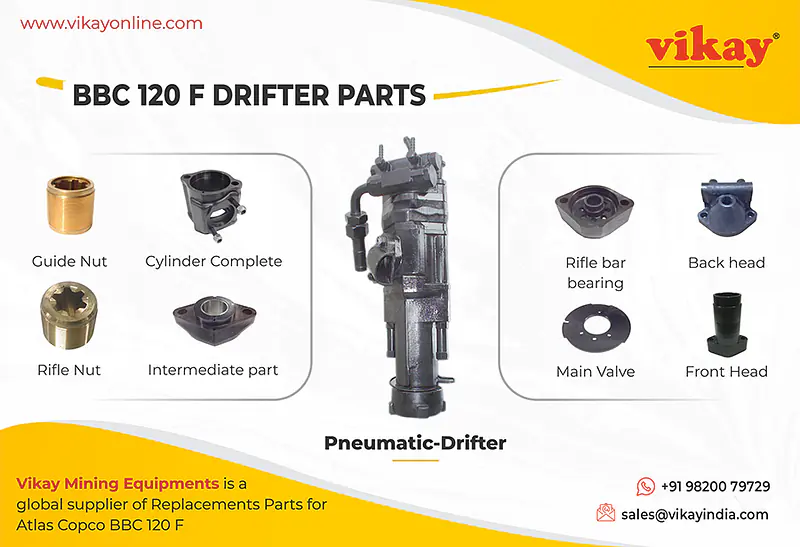

Vikay is a worldwide distributor of BBC 120FZ Atlas Copco Pneumatic Drifter Parts suitable for Atlas Copco / Epiroc BBC 120FZ Pneumatic Drifter (VK 12FZ) from India.
| Sr. No | Description | b |
| 1 | Cover | 3161023000 |
| 2 | Lock Spring | 3161099300 |
| 3 | Stop Ring | 3161021500 |
| 4 | Rotation Chuck | 3161021600 |
| 5 | Front Head | 3161023100 |
| Rotation chuck Complete | 3161032880 | |
| 6 | - Rotation chuck | --- |
| 7 | - Rotation Chuck Bushing | 3161021800 |
| 8 | Guide Nut | 3161032900 |
| 9 | Nut | 3141007200 |
| 10 | Nut | 3141007100 |
| Intermediate Part Complete | 3161081980 | |
| 11 | - Intermediate Part | --- |
| 12 | - Bushing | 3161023500 |
| Piston With Rifle Nut Complete | 3161030780 | |
| 13 | - Piston | --- |
| 14 | - Rifle Nut | 3161030800 |
| 15 | Nut | 291111400 |
| 16 | Exhaust Guard | 3115012200 |
| Cylinder Complete | 3161052480 | |
| 17 | - Cylinder | --- |
| 18 | - Stud | 196148100 |
| Cover With Guide Pin Complete | 3141008780 | |
| 19 | - Cover | |
| 20 | - Guide Pin | 3141008800 |
| 21 | Main Valve | 3161033300 |
| 22 | Rifle Bar Bearing | 3141009000 |
| 23 | Rifle Bar | 3161036900 |
| 24 | Pawls | 3161037000 |
| 25 | Pawl Pin | 3141008300 |
| 26 | Pawl Spring | 3115077400 |
| 27 | Damper | 3161052500 |
| 28 | Ratchet Box | 3161037700 |
| 29 | Pawl Lifting Ring | 3161037800 |
| 30 | Coupling Nut | 9000033500 |
| 31 | Hose Nipple | 9000017700 |
| 32 | Adapter | 9000048500 |
| 33 | Adapter | 3000992200 |
| 34 | Inlet Nipple | 3161007000 |
| 35 | O Ring | 663213200 |
| 36 | Backhead | 3141009300 |
| 37 | Pressure Screw | 3161082000 |
| 38 | Banjo Connection | 3161022900 |
| 39 | Plug | 3161006900 |
| 40 | Operating Piston | 3141009500 |
| 41 | Spring Guide | 3141009600 |
| 42 | Pressure Spring | 3141009700 |
| 43 | O Ring | 663213200 |
| 44 | Plug | 3141009800 |
| 45 | Gasket | 3121047700 |
| 46 | Side Bolt | 3141007000 |
| 47 | Nut | 3141022400 |
| 48 | Water Flushing Tube | 3161037600 |
| 49 | Adapter | 3161082100 |
| 50 | O Ring | 663212400 |
| 51 | Hose Nipple | 3161082200 |
| 52 | Coupling Nut | 3161082300 |
2. Optional
| No. | Description | Ref. Part No. |
| Parts For Sealed Chuck 32 mm (1 1/4) Leyner Shank | ||
| 3 | Stop Ring | 3161038300 |
| 4 | Rotation Chuck | 3161038200 |
| Rotation Chuck Complete | 3161032881 | |
| 6 | Rotation Chuck | |
| 7 | Rotation Chuck bushing | 3161022600 |
| 8 | Guide Nut | 3161032900 |
| Only For Air Flushing | ||
| Air Flushing Tube | 3161046600 | |
| Parts To Adjustable Exhaust Connection For 64 mm | ||
| (2 ½”) Hose, Especially For “Simba” | ||
| Rubber Ring | 3161074200 | |
| Nipple | 3161040800 | |
| Lock Ring | 3161074100 | |
| Parts For Protecting When Drilling Upwards | ||
| Rubber hood | 3161022600 | |
| For BBC 120FZ | ||
| 1 | Cover | 3115223900 |
| 2 | O-Ring | 663614500 |
| 3 | Front Head | 3115229100 |
| 4 | Side Bolt | 3115224000 |
| 5 | Washer | 3115028700 |
| 6 | Dome Nut | 3115028600 |
