BBC 120FZ Pneumatic Drifter | VK 12FZ Pneumatic Drifter

₹1.00

Pinch to
zoom

Quantity

DESCRIPTION

BBC 120FZ Pneumatic Drifter | VK 12FZ Pneumatic Drifter

The BBC 120FZ Pneumatic Drifter | VK 12FZ Pneumatic Drifter is also a powerful pneumatic rock drills designed for long hole drilling, bench drilling, and drifting operations. BBC 120F Pneumatic Drifters is tyically used for surface drilling whereas the BBC 120FZ Pneumatic Drfiter is used mainly for underground applications, handling hole sizes from 51 mm to 89 mm (2" to 3½").

The BBC 120 model can be equipped with either 1¼-inch or 1½-inch shanks to suit different drilling requirements.

Key Features of BBC 120FZ Drifter

  • Remote Control Operation:
    Just like BBC 120F Pneumatic Drifter even BBC 120FZ Pneumatic Drifter is equipped with a rifle-bar actuated rotation motor featuring eight pawls (four for each direction) for smooth and efficient engagement and disengagement.
  • Versatile Flushing System:
    BBC 120FZ Pneumatic Drifter is easily switchable between water flushing and air blowing modes, depending on drilling conditions.

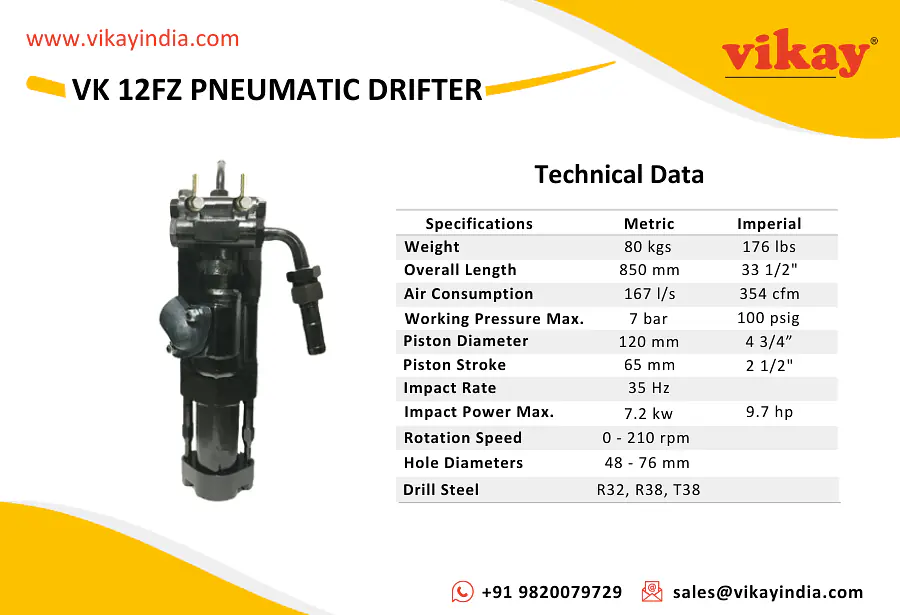

Technical Details

ModelVK-12FZ
Weight80 kgs176 lbs
Overall Length850 mm33 1/2"
Air Consumption167 l/s354 cfm
Working Pressure Max.7 bar100 psig
Piston Diameter120 mm4 3/4"
Piston Stroke65 mm2 1/2"
Impac Rate35 Hz
Impact Power Max.7.2 kw9.7 hp
Rotation Speed0 - 210 rpm
Hole Diameters48 - 76 mm
Drill SteelR32, R38, T38
