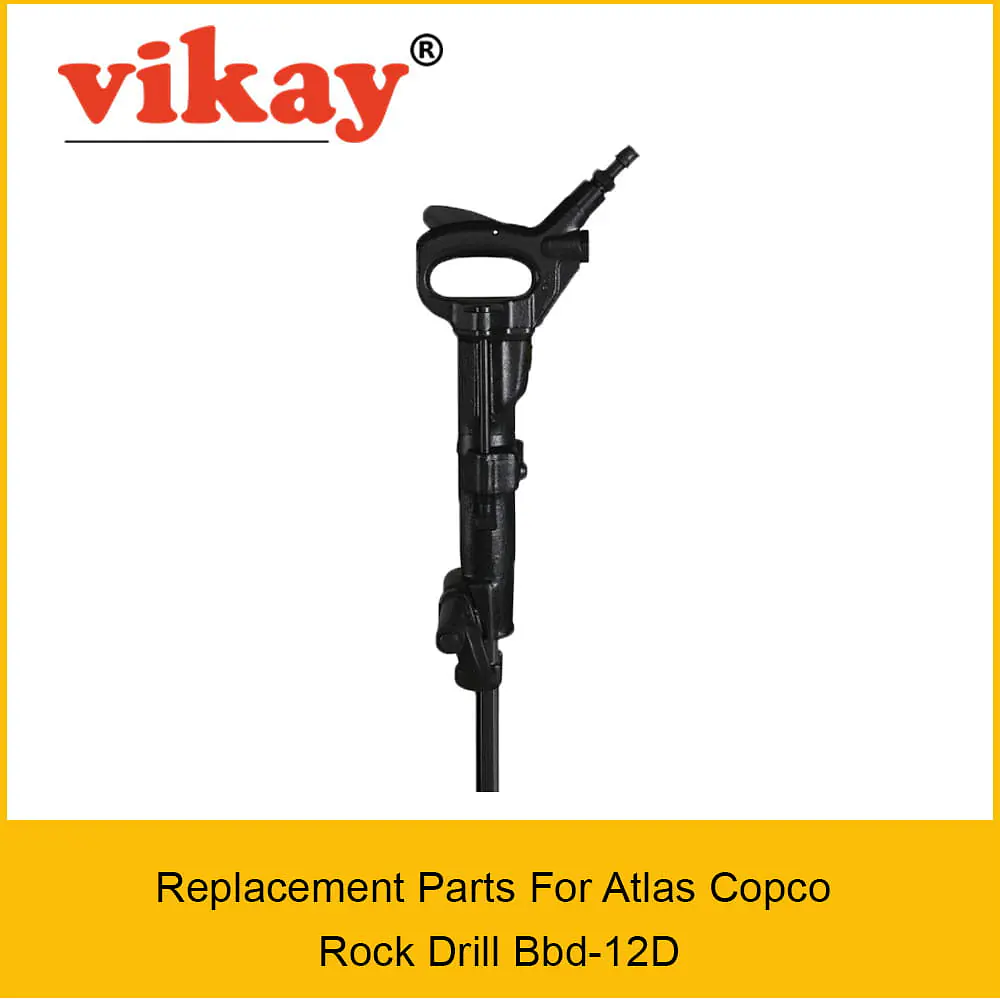

Bbd-12D Light Weight Rock Drill Atlas Copco Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco Light Weight Rock Drill Bbd-12D from India.
Product
- Page 1

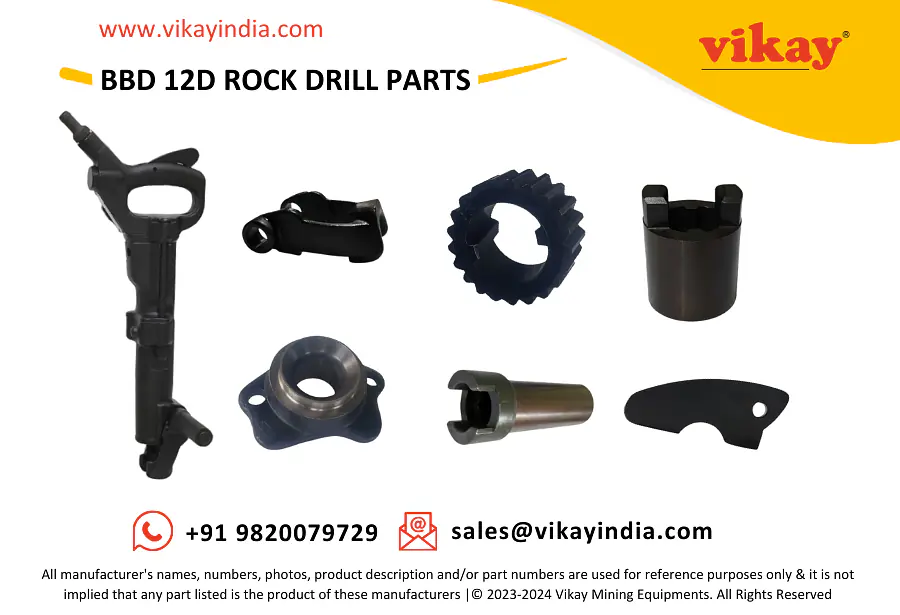

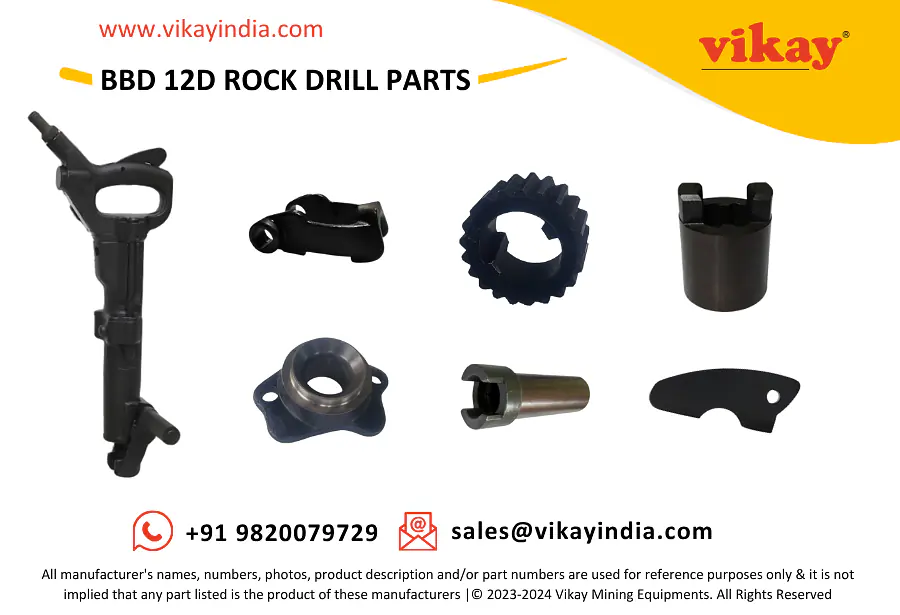

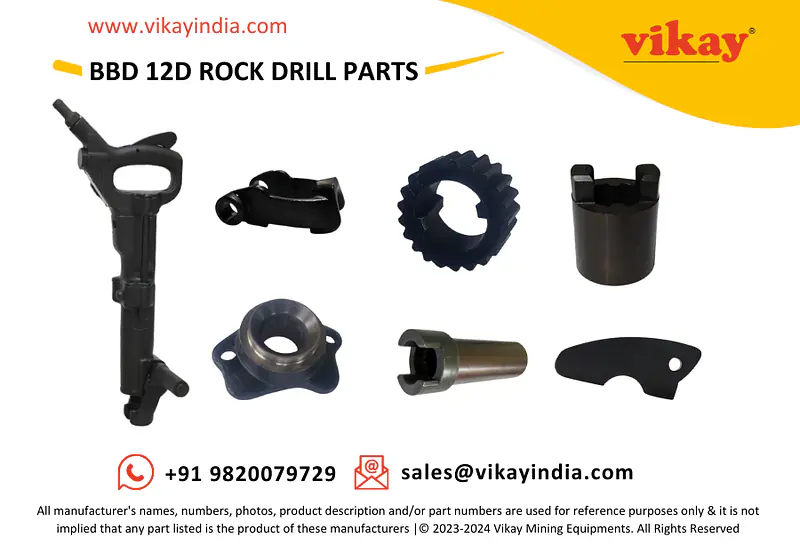

Bbd-12D Rock Drill Parts
| Sr. No | Description | - | Ref. Part No. |
| 1 | Drill retainer | - | 3115247500 |
| 2 | Retainer pin | - | 3115248000 |
| 3 | Sleeve | - | 3115248100 |
| 4 | Slotted spring pin | - | 0108135900 |
| 5 | Rubber buffer | - | 3111005700 |
| 6 | Buffer plate | - | 3111005600 |
| 7 | Front head | - | 3111005300 |
| 8 | Cap nut | - | 3111003100 |
| 9 | Conical spring | - | 3111002300 |
| 10 | Pawl | - | 3111002000 |
| 11 | Drill chuck | - | 3111005100 |
| 12 | Driver | - | 3111002400 |
| 13 | Ratchet wheel | - | 3111001900 |
| 14 | Intermediate part | - | 3111001700 |
| 15 | Piston | - | 3111001600 |
| 16 | Cylinder | - | 3111001500 |
| - | Cover compl. | - | 3111001380 |
| 17 | - Cover | - | - |
| 18 | - Guide pin | - | 3111001400 |
| 19 | - Pin | - | 0108324100 |
| 20 | Main valve | - | 3111001200 |
| - | Handle compl. | - | 3115248380 |
| 21 | - Handle | - | - |
| 22 | - Trigger | - | 3111000200 |
| 23 | - Pin | - | 0108132700 |
| 24 | - Nut | - | 3510014300 |
| 25 | - Valve pin | - | 3111000300 |
| 26 | - Rubber ball | - | 3111019600 |
| 27 | - Conical spring | - | 3111000400 |
| 28 | - Washer | - | 3111001000 |
| 29 | - Ball retainer | - | 3111000500 |
| 30 | Side bolt | - | 3111019700 |
| 31 | Hose nipple | - | 9000024300 |
| - | Silencer,compl. | - | 8092010449 |
| 32 | - Hose clamp | - | 0347611700 |
| 33 | - Silencer upper part | - | 3115077100 |
| 34 | O Ring | - | 0663615100 |
| 35 | - Silencer lower part | - | 3115077200 |
| 36 | - Hose clamp | - | 0347611600 |
| 37 | - Bushing | - | 3115077300 |
