DESCRIPTION

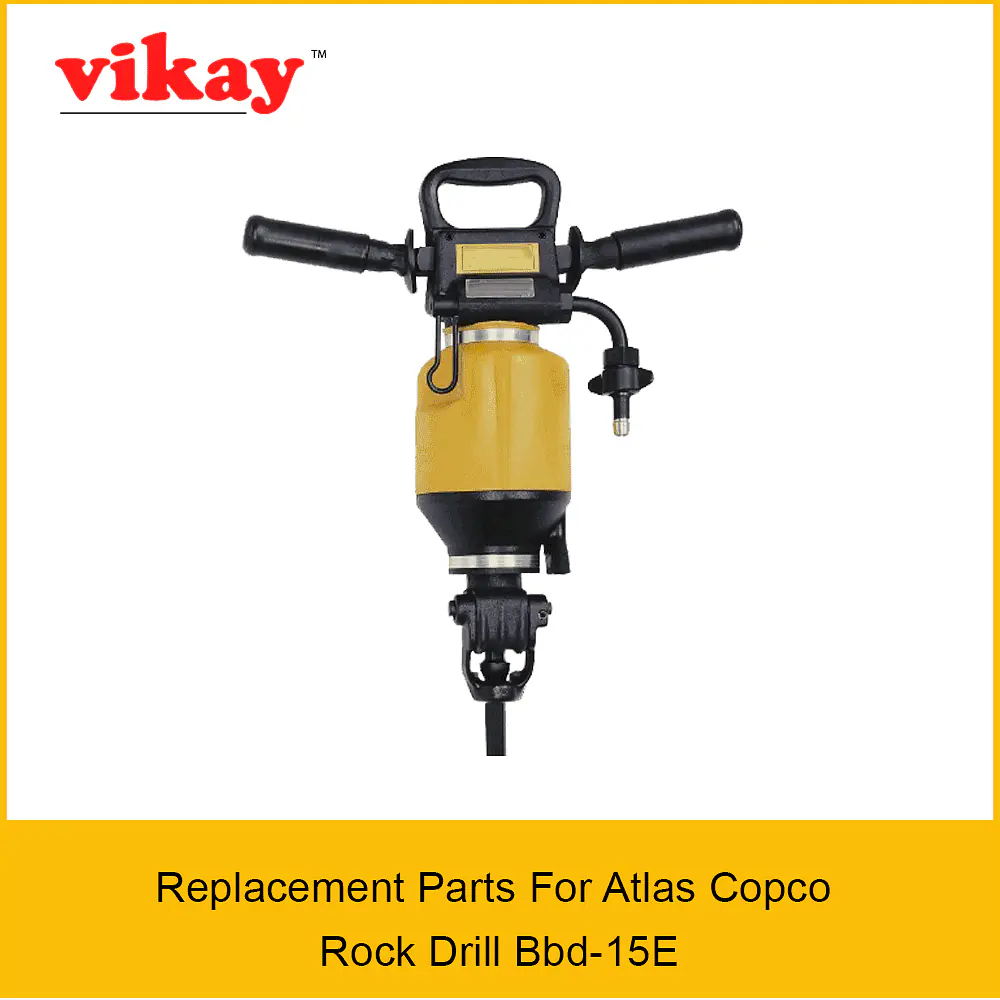

Bbd-15E Light Weight Rock Drill Atlas Copco Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco Light Weight Rock Drill Bbd-15E from India

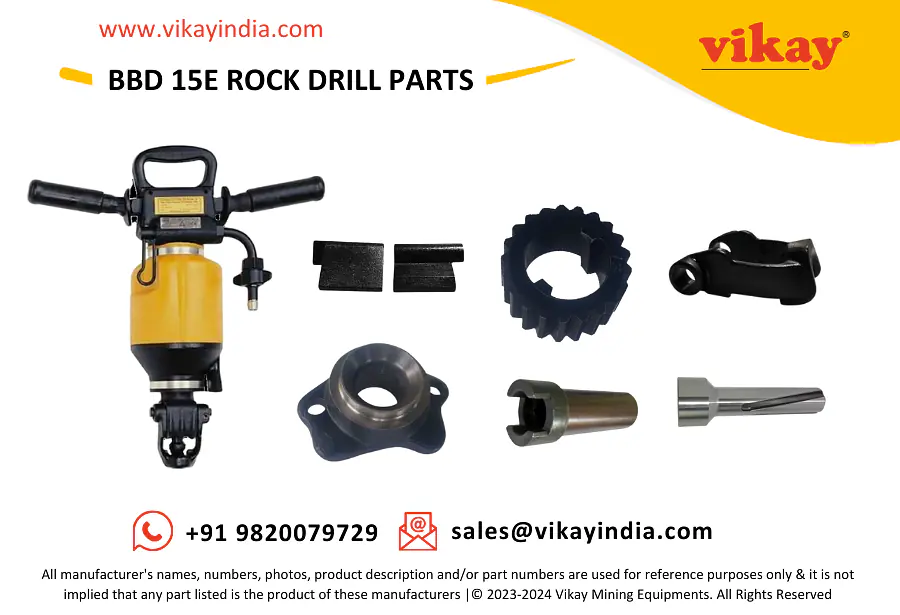

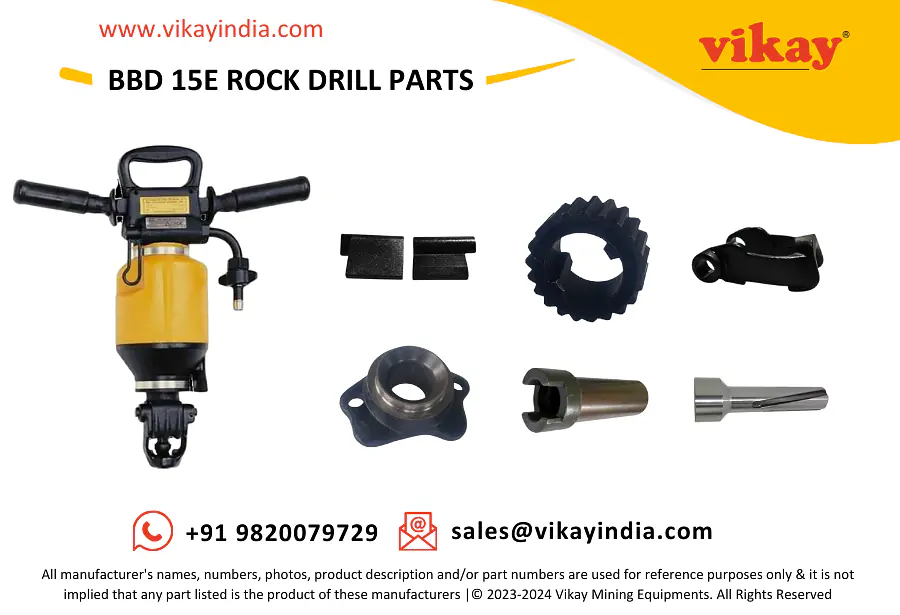

Bbd-15E Rock Drill Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Drill steel retainer | 3115247500 | |
| 2 | Retainer pin | 3115206800 | |
| 3 | Rubber buffer | 3111005700 | |
| 4 | Buffer plate | 3111005600 | |
| 5 | Slotted spring pin | 0108135900 | |
| 6 | Front head | 3111005300 | |
| 7 | Cap nut | 3111006200 | |
| 8 | Conical spring | 3111002300**) | |
| 9 | Pawl | 3111002000**) | |
| 10 | Rotation chuck 19x108 mm | 3111005100 | |
| 10 | Rotation chuck 22x108 mm | 3111006600 | |
| 10 | Rotation chuck 22x82.5 mm | 3115249600 | |
| 11 | Driver | 3111002400 | |
| 12 | Ratchet wheel | 3111001900 | |
| 13 | Intermediate part | 3111001700 | |
| 14 | Piston | 3111005000 | |
| 15 | Cylinder | 3111001500 | |
| - | Cover, compl. | 3111004780 | |
| 16 | - Cover | --- | |
| 17 | - Bushing | 3111004800 | |
| 18 | - Spiral spring pin | 0108324100 | |
| 19 | Main valve | 3111004900 | |
| 20 | Throttle housing | 3115196600 | |
| 21 | Lever | 3115208600 | |
| 22 | Spring | 3115188900 | |
| 23 | Handle | 3115188600 | |
| 24 | Rubber sleeve | 3310085200 | |
| 26 | Slotted spring pin | 0108136500 | |
| 27 | Handle | 3115207000 | |
| 28 | Valve | 3115196700 | |
| 29 | Inlet nipple | 3111004400 | |
| 30 | Adapter | 3111004300 | |
| 31 | Adapter | 3000582502 | |
| 32 | Hose nipple | 3115154300 | |
| 32 | Hose nipple | 9000010100 | |
| 33 | Wing nut | 9000033800 | |
| 34 | Side bolt | 3115196900 | |
| 35 | Flushing tube | 3111004500 | |
| 36 | Gasket | 3111009500 | |
| - | Silencer, compl. | 3115248880 | |
| 37 | - Silencer, upper part | 3115248800 | |
| 38 | - O Ring | 0663615100 | |
| 39 | - Silencer, lower part | 3115077200 | |
| 40 | - Hose clamp | 0347611600 | |
| 41 | - Bushing | 3115077300 | |
| 42 | Rubber washer | 3115247800 | |
| - | Rebuilding kit | 8311010495 | |
| 43 | - Adapter | 3115249400 | |
| 44 | - Conical spring | 3310032600 | |
| 45 | - Handle right | 3115249100 | |
| 46 | - Sleeve | 3115249500 | |
| 47 | - Trigger | 3115249200 | |
| 48 | - Valve cone | 3310028800 | |
| 49 | - Valve stem | 3115249300 | |
| 50 | - Back head | 3115249000 | |
| 51 | - Spring pin | 0108133600 | |
| 52 | - Spring pin | 0108169032 |
