DESCRIPTION

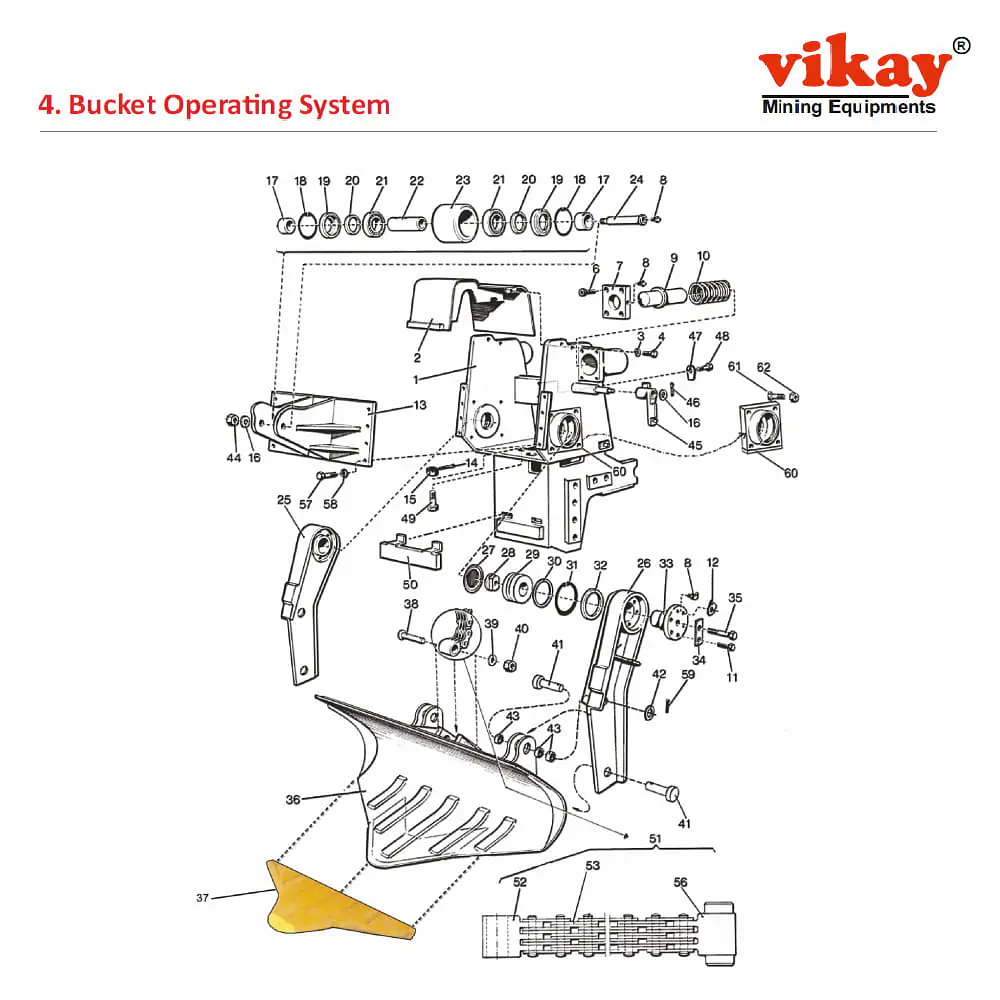

Bucket Operating System
Vikay is a global supplier of new aftermarket replacement parts - Bucket Operating System for Atlas Copco Mucking Loader Cavo-310 from India.
Product
Bucket Operating System
| No. | Description | Modified | Ref. Part No. | ||
| 1 | Frame | 5112056901 | * | M10140 | |
| 2 | Cover | 5112036200 | |||
| 3 | Spring Washer | 0333213000 | |||
| 4 | Screw | 0147136400 | |||
| 6 | Screw | 0211147300 | |||
| 7 | Cover | 5112058700 | * | M10146 | |
| 8 | Grease Nipple/ Lubricating Nipple | 0544216200 | * | M9040 | |
| 9 | Buffer | 5112011800 | |||
| 10 | Spring | 5112098500 | |||
| 11 | Screw | 0147147700 | |||
| 13 | Bracket | 5112111000 | |||
| 14 | Split Pin | 0111137900 | |||
| 15 | Nut | 0281136800 | |||
| 16 | Washer | 0301221000 | |||
| 17 | Spacer | 5112013400 | |||
| 18 | Circlip | 0335216500 | |||
| 19 | Spacer | 5112013500 | |||
| 20 | Seal Ring | 0666443700 | |||
| 21 | Bearing | 0508230800 | |||
| 22 | Spacer | 5112013600 | |||
| 23 | Idler Roller | 5112013300 | |||
| 24 | Axle | 5112013200 | |||
| 25 | Rocker Arm Right | 5112110500 | |||
| 26 | Rocker Arm Left | 5112110400 | |||
| 27 | Spacer | 5112030900 | |||
| 28 | Lock Nut | 5112031000 | |||
| 29 | Spherical Bearing (3 Piece) | 0506511100 | * | M10168 | |
| 30 | Spacer | 5112012100 | |||
| 31 | Circlip | 0335217600 | |||
| 32 | Seal Ring | 0666472500 | |||
| 33 | Axle | 5112031300 | |||
| 34 | Lock Washer | 5112031200 | |||
| 35 | Screw | 5112031100 | |||
| 36 | Bucket | 5112110200 | |||
| 37 | Bucket Lip only | 5112089000 | * | M10176 | |
| - | Bucket Lip (Complete) as shown in Fig. | - | |||
| 38 | Bolt | M10177 | |||
| 39 | Washer | 5112039200 | |||
| 40 | Nut | M10179 | |||
| 41 | Pin | 5112105700 | |||
| 42 | Washer | 5112110700 | |||
| 43 | Bushing | 5112105600 | |||
| 44 | Nut | 0291111800 | |||
| 45 | Hook | 5112024805 | |||
| 46 | Split Pin | 0111144900 | |||
| 47 | Lock Washer | 5091436300 | |||
| 48 | Screw | 0147154900 | |||
| 49 | Screw | 5112029900 | |||
| 50 | Buffer | 5112029300 | |||
| 51 | Chain Complete | 5112029182 | |||
| 52 | - End Link | 5112039300 | |||
| 53 | - Chain (Not Delivered Separately) | - | |||
| 56 | - End Link | 5103041600 | |||
| 57 | Screw | 0147147900 | |||
| 58 | Spring Washer | 0333214300 | * | M9025 | |
| 59 | Spilt Pin | 0111158000 | |||
| 60 | Bearing Housing | * | M10651 | ||
| 61 | Bolt | * | M10652 | ||
| 62 | Nut | * | M10653 | ||
| Chain Roller Complete | - |
