Cage VK RRWP* Replacement Parts

Vikay is a global supplier of new aftermarket replacement parts - Cage VK RRWP* for Alimak Pneumatic Raise Climber from India

Product

  • Page 1

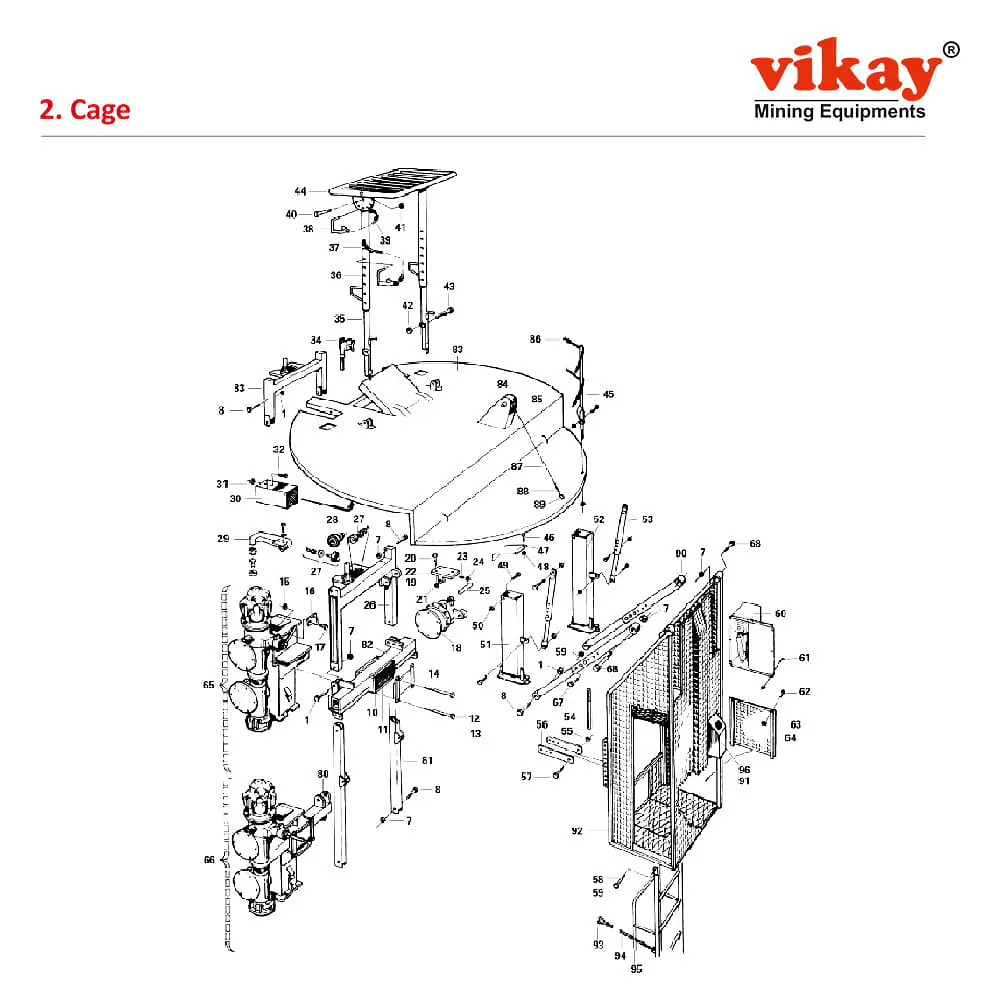

Cage VK RRWP*

No. Description   Designation   Ref. Part No.
  Work Platform With Cages & Safety Equipments*       VK RRWP*
1 Screw   M6S 24x150-8.8-fz   3000071736
2
3
4
5
6
7 Nut   L-K M6M 24-8.-fz   3000438128
8 Screw   M6S 24x140-8.8-fz   3000071735
9
10 Rubber sheet       0471149000
11 Rubber sheet       0471150000
12 Screw   M6S 20x200-8.8-fz   3000071697
13 Nut   L-K M6M 20-8.fz   3000438126
14 Anchoring plate       9001011000
15 Lock nut   L-K M6M 16-8. fz   3000438124
16 Stop cleat       0471155000
17 Screw   M6S 16x45-8.8-fz   3000071629
18 Safety device       0184338000
19 Grease nipple       3000221026
20 Screw   M6S 16x50-8.8-fz   3000071630
21 Lock nut   L-K M6M 16-8.- fz   3000438124
22 Anchoring plate       9064710000
23 Stop screw   T6SS 8x25   3000150453
24 Nut   M6M 8-8.-fz   3000081118
25 Shaft       0484360000
26 Frame       0271156000
27 Guide roller   438665   9018650000
28 Guide roller       0471138000
  Screw   MC6S 20x70-8.8.-fz   3000669678
  Lock nut   L-K M6M20-8.-fz   3000438126
29 Hose guide       0373683000
  Hexagon nipple       3000969347
  Hose nipple       3000969177
  Nut       3000970335
  Screw   M6S 16x30-8.8-fz   3000071624
  Washer   BRB 17x30-fz   3000091186
30 Tool box       0274736000
31 Lock nut   L-K M6M 10-8.-fz   3000438120
32 Screw   M6S 10x30-8.8-fz   3000071495
33 Extra roller assy       0377128000
34 Mounting pin       0381399000
35-43 Compl. support leg       0374295000
35 Support leg       0374293000
36 Support leg,       0374292000
  upper part
37 Chain       3000308040
38 Cotter       0474294000
39 Chain       3000308040
40 Screw   M6S 20x120-8.8-fz   3000071688
41 Lock nut   L-K M6M 20-8.-fz   3000438126
42 Lock nut   L-K M6M 20-8.-fz   3000438126
43 Screw   M6S 20x120-8.8-fz   3000071688
44 Safety roof       0274291000
45 Rail post       0373481000
46 Screw   M6S 12x35-8.8-fz   3000071538
47 Cover       0374503000
48 Lock nut   L-K M6M 12-8.-fz   3000438122
49 Screw   M6S 12x35-8.8-fz   3000071538
50 Lock nut   L-K M6M 12-8-fz   3000438122
51 Drill holder       0374859000
52 Drill holder       0374864000
53 Telescopic pipe       0474863000
54 Hand lever       0417396000
55 Nut   L-K M6M 16-8.-fz   3000438124
56 Bracket       0487703000
57 Screw   M6S 16x50-8.8-fz   3000071630
58 Screw   M6S 20x50-8.8-fz   3000071674
59 Nut   L-K M6M 20-8.-fz   3000438126
60 Box w. telephone   See circuit diagram
61 Hook       9001068000
62 Screw   M6S 8x25-8.8-fz   3000071453
63 Nut   L-K M6M 8-8.-fz   3000438118
64 Door plate       0486973000
65 Machinery, upper       0145271000
66 Machinery, lower   Exkl. pos 80   0145271000
67 Screw   M6S 20x130-8.8-fz   3000071690
68 Screw   M6S 24x180-8.8-fz   3000071739
80 Supporting beam.       0381556000
  lower
81 Connection beam       0481557000
82 Supporting beam,       0381555000
  upper
83 Plate form
84 Shaft       0476712000
85 Pulley wheel       0313289000
86 Chain       0444814000
87 Steel wire       3001114110
88 Cable joint       3000211204
89 Cable shoe       3000305611
90 Support leg       *
91 Winch       3001152101
92 Cage excl. winsch       0182621101
93 Linkchain       3000860105
94 Chain       3000308080
95 Ladder       *
96 Cover       0284055000

Stdben                             *                 Stege                  *
Support leg                  Pos./Item          Ladder          Pos./ltem
Sttzbein                          90                Leiter                 95
2350 3450 mm        0482630000     1500 mm       0391649150
2500 3800 mm        0444339000     1800 mm       0391649180
                                                                 2100 mm       0391649210




**** Ange lngden i meter / State length in meters / Die Lnge in Meter angeben


OBS: Manverventil med fste, se STH-5L

NOTE: Control valve with bracket, see STH-5L

ACHTUNG: Bedienungsventil mit Befestigung, sehen Sie STH-5L
