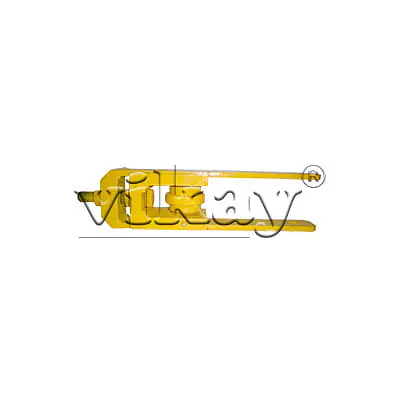

Chain Tensioner 3162047081 Replacement
Regular price
₹0.00
Chain Tensioner 3162047081 Replacement
Regular price
₹0.00
DESCRIPTION
Chain Tensioner 3162047081 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Chain Tensioner 3162047081 for Atlas Copco Wagon Drill Bvb-25 from India
Product

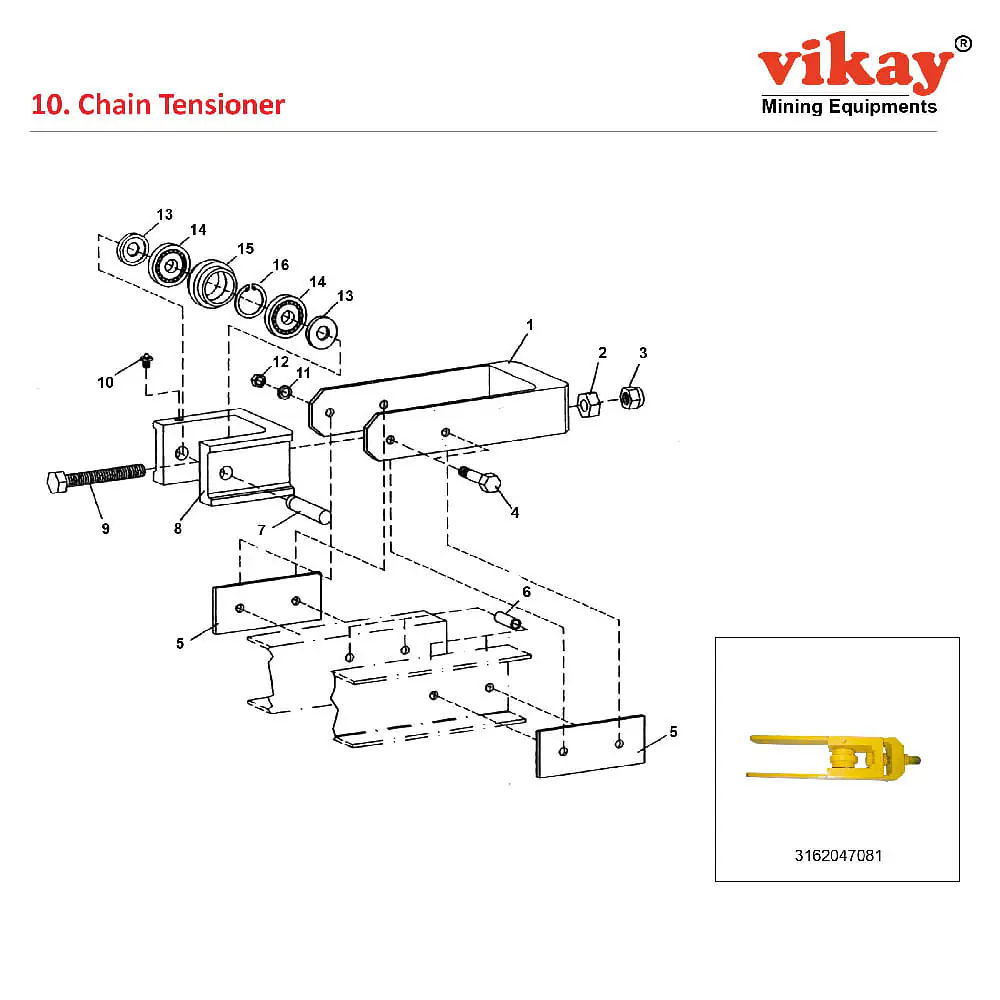

Chain Tensioner Parts
| No. | Description | Modified | Ref. Part No. | ||
| - | Chain Tensioner Complete (1-16) | 3162047081 | |||
| 1 | - Yoke | 3162047000 | |||
| 2 | - Nut | 0266111600 | |||
| 3 | - Lock Nut | 0291111600 | |||
| 4 | - Screw | 0147149200 | |||
| 5 | - Spacer | 3162051500 | |||
| 6 | - Spacer Sleeve | 3162047100 | |||
| 7 | - Shaft | 3162047300 | |||
| 8 | - Yoke | 3162046900 | |||
| 9 | - Bolt | 3162047200 | |||
| 10 | - Lubricating Nipple | 0544216200 | |||
| 11 | - Spring Washe | 0333214300 | |||
| 12 | - Nut | 0266111400 | |||
| 13 | - Washer | 3162158100 | |||
| 14 | - Ball Bearing | 0502210400 | |||
| 15 | - Pulley Wheel | 9718351300 | |||
| 16 | - Circlip | 0335214300 |
