DESCRIPTION

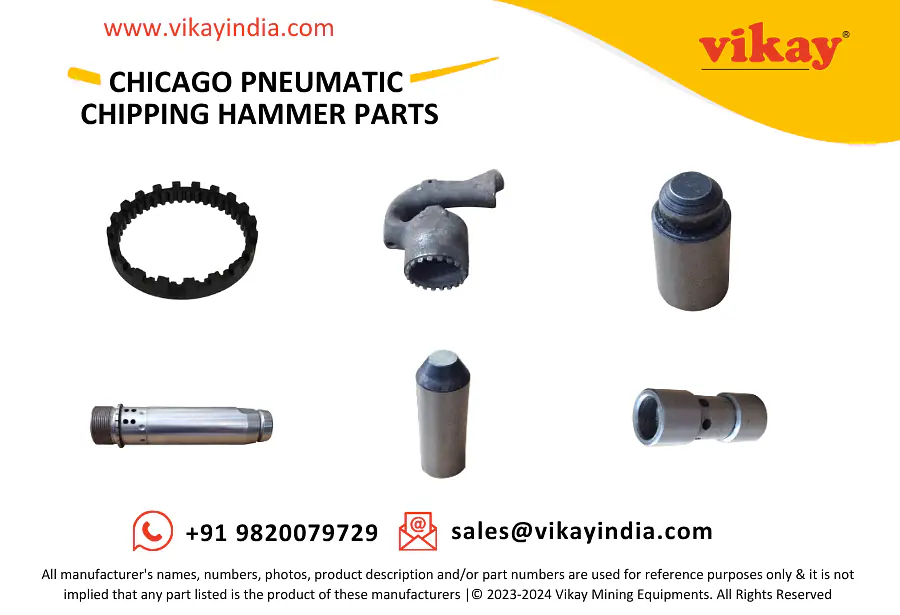

Chicago Pneumatic Chipping Hammer Parts
Vikay Mining Equipments is a global supplier of Chicago Pneumatic Chipping Hammer Parts - Cp 4123 Chicago Pneumatic Chipping Hammer Parts, Cp 4125 Chicago Pneumatic Chipping Hammer Parts from India.
| CP 0012 Parts | CP 4123 Parts | CP 4125 Parts | |||
| Description | Part No. | Description | Ref. Part No. | Description | Ref. Part No. |
| Handle complete (Includes item No. 2 3 & 4) | Z8360858 | Handle assembly (Includes item No. 2 3 5 | Z9983830 | Handle assembly (Includes | P130242 |
| Handle | 6 7 8 9 10 11 12 13 & 14) | item No. 2 3 5 6 7 8 9 10 11 12 & 13) | |||
| Plug - 1/16 x 27 NPTF | C102507 | Plug - Throttle valve | P001873 | Plug - Throttle valve | P001873 |
| Bushing - Throttle valve | Spring - Throttle valve | P001853 | Spring - Throttle valve | P001853 | |
| O-ring - Throttle valve | Q0132858 | Valve - Throttle complete | P001768 | Valve - Throttle complete | P001768 |
| Throttle valve | D3182858 | (Includes item No. 5 & 6) | (Includes item No. 5 & 6) | ||
| Spring - Throttle valve | R085596 | Valve - Throttle | -- | Valve - Throttle | |
| Air inlet bushing (BSP) | F064697 | O-ring | P083071 | O-ring (-011) | P083071 |
| Gasket - hose tail | F064696 | Pin - Throttle valve bush | P070719 | Pin - Throttle valve bush | P070719 |
| Hose tail (3/8" BSP) | F064695 | Tube - Throttle valve | P071318 | Tube - Throttle valve | P071318 |
| Lever - Throttle | F027853 | Bushing - Push pin | P070733 | Bushing - Push pin | P070733 |
| Pin - Throttle lever | A043627 | Bushing - Permanent | P009585 | Bushing - Permanent | P009585 |
| Washer 1.0 mm | Q4204858 | Handle | -- | Handle | |
| Muffler | H3740858 | Pin - Throttle lever | A043627 | Pin - Throttle lever | A043627 |
| Valve housing | Z3803858 | Lever - Throttle | P009818 | Lever - Throttle | P009818 |
| Main valve | D7368858 | Screen | P092485 | Lid (Ring valve) | P009837 |
| Lower valve lid | D5090858 | Valve case complete | P077013 | Valve (Ring valve) | P009836 |
| Piston | D1579858 | (Includes item No. 16 17 18 19 & 20) | Piston (for 2" or 3" stroke version) | P118662 | |
| Pin - Dowel (Pipe) | D7288858 | Lid - Upper valve case | P071350 | Piston (for 4" stroke version) | P118678 |
| O-ring (Cylinder) | H0359858 | Valve | P071358 | Cylinder | |
| Cylinder | Case - Valve | P071352 | Sleeve - Chisel (Round) | P001550 | |
| Guide bush (19 mm Hex. x 50) | D8389858 | Pin - Dowel (7/32" x 7/8") | A041797 | Sleeve - Chisel (Hex) | P001551 |
| Retainer lock ring (dia. 39.2 x 3 mm) | H2228858 | Lid - Lower valve case | P071351 | Collar - Lock | P128247 |
| Buffer | H2303858 | Piston (for 2" or 3" stroke version) | P118662 | Shield - Lock | P071355 |
| Retainer | C8788859 | Piston (for 4" stroke version) | P118678 | Sleeve - Retainer (Includes item No. 24 & 25) | P107243 |
| Retainer complete (Ball type screw - on) (Optional) (Includes item No 27 28 29 30 31 & 32) | Z8389857 | Cylinder | -- | Sleeve - Retainer | |
| Retainer | Sleeve - Chisel (Round) | P001550 | Spring - Lock coil | P070994 | |
| Chuck retainer ball (Only available as set Z8754857 incl. 6 balls) | Sleeve - Chisel (Hex) | P001551 | |||
| Spring | H3437857 | Collar - Lock | P128247 | ||
| Retainer sleeve | Shield - Lock | P071355 | |||
| External circlip | H3275857 | Sleeve - Retainer | P107243 | ||
| Cylinder (for spring type retainer) | (Includes item No. 29 & 30) | ||||
| Bushing - Round | P001550 | Spring - Lock coil | P070994 | ||
| Bushing - Hexagon | P001551 | Sleeve - Retainer | -- | ||
| Sleeve - Retainer (Includes item No. 36 & 37) | P107243 | ||||
| Spring - Lock coil | P070994 | ||||
| Sleeve - Retainer | |||||
| Air inlet bushing (NPTF) | R085893 | ||||
| Ball type retainer US-Standard (Optional) |
