DESCRIPTION

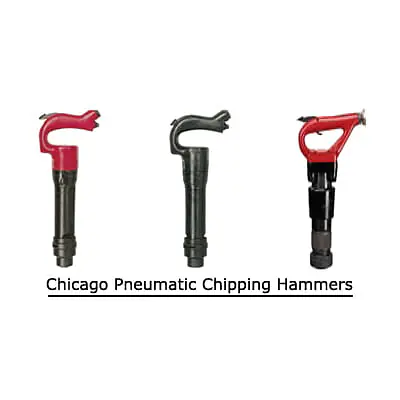

Chicago Pneumatic Chipping Hammers
Vikay Mining Equipments is a global supplier of Chipping Hammers - CP 4123 2H Chicago Pneumatic Chipping Hammers, CP 4123 2R Chicago Pneumatic Chipping Hammers, CP 4123 3H Chicago Pneumatic Chipping Hammers, CP 4123 4H Chicago Pneumatic Chipping Hammers, CP 4125 3H Chicago Pneumatic Chipping Hammers, CP 4125 4H Chicago Pneumatic Chipping Hammers, CP 4131 3H Chicago Pneumatic Chipping Hammers from India.
| Particulars | CP 4123 2H | CP 4123 2R | CP 4123 3H | CP 4123 4H | CP 4125 3H | CP 4125 4H | CP 4131 3H |
| Retainer Type | Spring type | Spring type | Spring type | Spring type | Spring type | Spring type | Quick Change |
| Weight Kg (lb) | 6 (13) | 6 (13) | 6.5 (14 1/4) | 7 (15 1/2) | 6.5 (14 1/4) | 7 (15 1/2) | 8.5 (15 1/2) |
| Cylinder Stroke (mm (in) | 51 (2) | 51 (2) | 76 (3) | 102 (4) | 76 (3) | 102 (4) | 76 (3) |
| Length mm (in) | 327 (12.9) | 327 (12.9) | 378 (14.9) | 410 (15.5) | 362 (14.25) | 394 (15.25) | --- |
| Blows per Minute (BPM) | 2400 | 2400 | 1920 | 1500 | 1920 | 1500 | 1920 |
| Air Consumption l/s (cfm) | 11.5 (25) | 11.5 (25) | 12 (26) | 12.5 (27) | 12.5 (27) | 13 (28) | 12 (26) |
| Muffler included as standard | --- | --- | --- | --- | --- | --- | Yes |
| Chuck Size mm (in) | H 14.7 (.580) | R 17.3 (.680) | H 14.7 (.580) | H 14.7 (.580) | H 14.7 (.580) | H 14.7 (.580) | H 14.7 (.580) |
| Part Number | 8900000105 | 8900000104 | 8900000107 | 8.9E+09 | 8.9E+09 | 8.9E+09 | 8.9E+09 |
| Stock Code No. | Z0020835 | Z0022835 | Z0020836 | Z0021856 | Z0025829 | Z0026829 | Z0028857 |
| Pneumatic Chipping Hammers | CP 0012 |
| Weight kg | 5.5 |
| Length mm | 406 |
| Air Consumption l/s | 9.5 |
| Blows Per Minute bpm | 2,580 |
| Vibration Level 3 Axes (ISO 20643) m/s2 | 14.6 |
| Sound Power Level Guaranteed (2000/14/EC) dB(A) | 104 |
| Sound Pressure Level (ISO 11203) dB(A) | 89 |
| Retainer Type | Screw Cap |
| Air Inlet | 3/8" BSP |
| D-Handle Type | Inside Trigger |
| Chuck Size mm | Hex 19x50 |
| Part Number | 8900000101 |
