DESCRIPTION

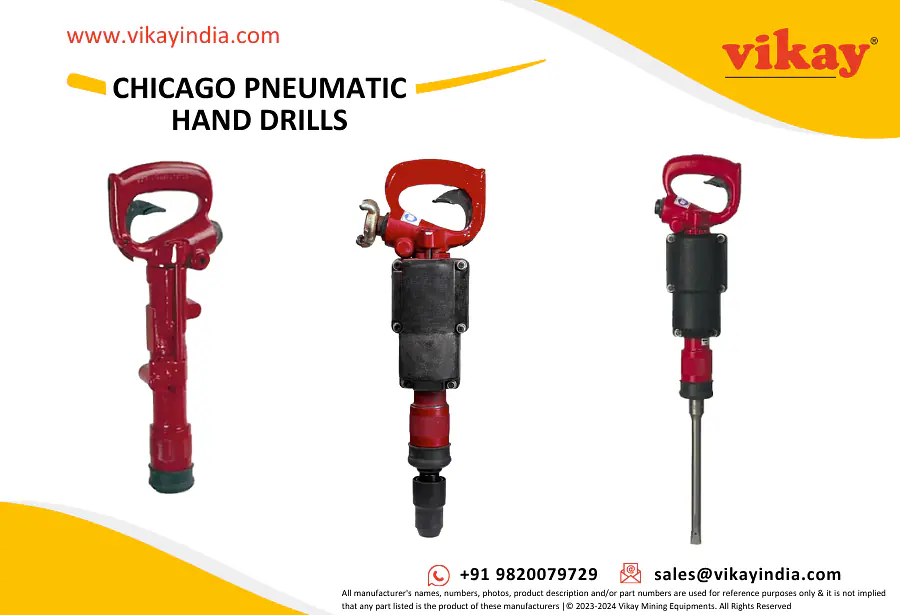

Chicago Pneumatic Hand Drill
Vikay Mining Equipments is a global supplier of Hand Drill - CP 0009B Chicago Pneumatic Hand Drill, CP 0009C Chicago Pneumatic Hand Drill, CP 0014 RR Chicago Pneumatic Hand Drill from India.
| Particulars | CP 0009 B | CP 0009 C |
| Weight | 3.6 kg | 3.6 |
| Length | 374.7 mm (14 3/4) in | 374.7 mm (14 3/4") |
| Type pf Chuck | 3/4 x 3 3/4 mm (19 x 95.2) in round shank | 3/4 x 3 3/4 (19 x 95.2) round shank |
| Rotation release | Yes | No |
| Part number | T022084 | T022082 |
| Pneumatic Rotary Hammers | CP 0009 A | CP 0009 CS |
| Weight kg | 4 | 4.3 |
| Length mm | 375 | 375 |
| Air Consumption l/s | 9 | 9 |
| Blows Per Minute bpm | 3,420 | 3,420 |
| Vibration Level 3 Axes (ISO 20643) m/s2 Breaking/Drilling | 20.2 / 21.2 | 20.2 / 21.2 |
| Sound Power Level Guaranteed (2000/14/EC) dB(A) | – | 103 |
| Sound Pressure Level (ISO 11203) dB(A) | – | 88 |
| Retainer Type | Quick Change | Quick Change |
| Air Inlet | 3/8" NPTF | 3 /8" BSP |
| Air Inlet 3 /8" BSP Handle Type | D | D |
| Drill Rate in Hard Rock / Concrete mm | 1801 / 1602 | 180 / 160 |
| Max Drill Diameter in Hard Rock / Concrete mm | 32 (1.3) | 32 |
| Chuck Size mm | Rd 19 x 95 | Rd 19x95 |
| Part Number | 8900002003 | 8900002007 |
| Particulars | CP 0014 RR |
| Weight | 6.5 kg |
| Length | 480 mm |
| Air consumption | 22 l/s |
| Blows per minute | 2520 bpm |
| Rotation speed | 165 rpm |
| Drill rate | 1254 mm/min |
| Max drilling diameter | 44 mm |
| Max drilling depth 5) | 650 mm |
| Air inlet | 3/8 NPTF inch |
| Muffler included | No |
| Vibration level 3 axes (ISO 28927-10) Breaking/Drilling 1) | 354 / 453 m/s2 |
| Sound power level guaranteed (2000/14/EC) 1) | dB(A) |
| Sound pressure level (ISO 11203) 1) | dB(A) |
| Retainer type | Spring |
| Chuck size | Hex 22x825 mm |
| Part number | 8900002010 |
| Part number | T022173 |
| Stock Code No | Z0025414 |
