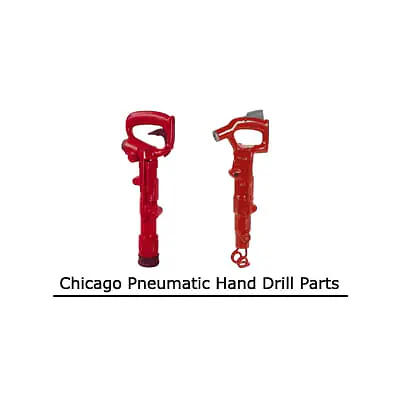

Chicago Pneumatic Hand Drill Parts

₹0.00

Pinch to
zoom

Quantity

DESCRIPTION

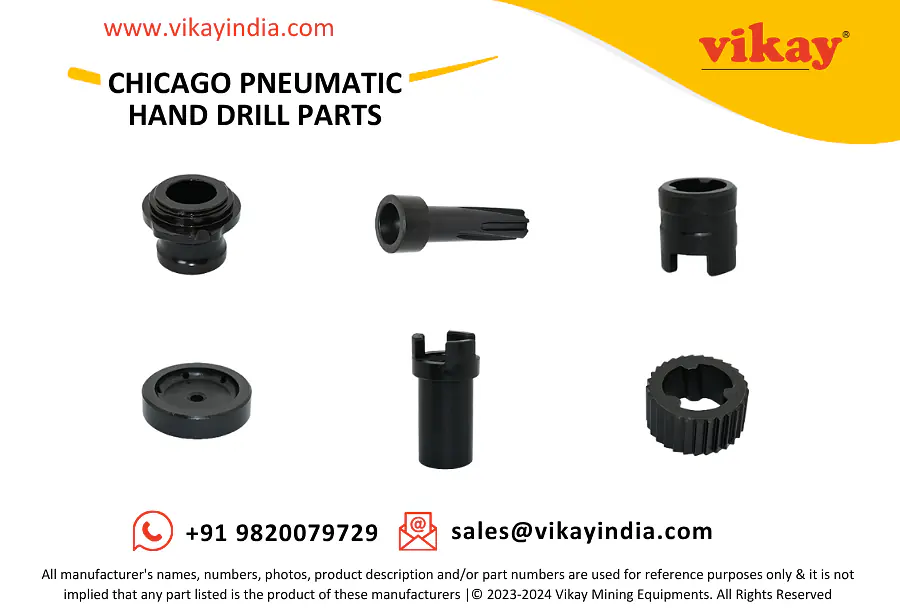

Chicago Pneumatic Hand Drill Parts

Vikay Mining Equipments is a global supplier of Chicago Pneumatic Hand Drill Parts - CP 9C , CP 9B , CP 14RR from India.



 CP 9 Parts CP 9B Parts CP 9C Parts CP 14RR Parts
DescriptionPart No.DescriptionRef. Part No.DescriptionRef. Part No.DescriptionRef. Part No.
Piston119Bushing - Air InletF064697Handle complete F034496Bolt - ThruF061564
Front head85885Spring - Throttle ValveR085596(Includes item No.4 5 6 7 10 11 12 & 13) Lever - ThrottleF064534
Ball retainer plugF61888Valve - ThrottleR086329Hose tail ( CP 9CCS & ES )F064695Handle completeR119157
Through boltF34249Seat - Throttle ValveR086098Gasket (CP 9C CS & ES)F064696Handle-
Valve85897Bushing - Throttle ValveF815426Air inlet bushing - 3/8" BSP collared head F064697Plug - PipeC077941
Rear valve seat85896Lever - ThrottleF027853(CP 9C CS & ES) Tube - Oil regulatingR085580
Front valve seat85898Pin - Throttle LeverR075404Air inlet bushing - 3/8" NPTF conical head R085893Plug - PipeC068799
Retainer plateF826683Seat - Rear ValveR085896(CP 0009AC) Bushing - Valve stemR085599
Hose nippleF33505ValveR085897Throttle valve springR085596O-ringR086098
Cylinder bushing85887Seat Front ValveR085698Throttle valveR086329Valve - Throttle completeR086329
ChuckF826892Felt - Oil ChamberR085895O-ring (Special)R086098Valve stem-
Chuck sleeve85900Plug - Pipe (3/8")C077941Throttle valve bushingR085599Throttle valve head-
Cylinder85886Handle (Incl Index No's 7 & 10)F034495Oil plugC077941Spring - Throttle valveR085596
Ratchet ring85892Handle CompleteR278018Oil chamber feltR085895Bushing - Air inletR085595
PawlF34066(Incl Index No's 1 3 5 14 15 30 33 & 35) Throttle lever pinA043627Pin - Throttle lever stopH082555
Steel retainer sleeve spring86605Bolt - ThruF034249Throttle leverF027853Pin throttle leverA043627
Pawl spring85890Nut - Thru BoltS013073Handle (Includes item No. 8 & 9)  --Rubber tubeR085934
Snap ringF826893PawlR051355Through boltF034249Tube - AirR079223
Alinekey5FPS691Spring - PawlR085890Rear valve seatR085896Plunger - Oil regulatingR085582
Single end wrench784Ring RatchetF816123ValveR085897O-ringC069083
Handle completeF34496CylinderR085886Front valve seatR085898SeatR085935
*Oil plug4975PistonF816122CylinderR085886ValveR085591
*Air inlet bushing35893Bushing - CylinderR051356PistonF816122Seat - Front valveR085592
*Throttle leverF27853Excluder - DustF815343Cylinder bushingR085887PistonR000120
Oil chember felt85895Sleeve - RetainerF815566Ratchet ringF816123CylinderR085575
*Throttle valve spring85596Ring - RetainerF826893PawlF034066Bushing - CylinderR041684
*Throttle lever pin (Spiral 'T')75404Plug875766Pawl springR085890Sleeve - ShifterR051350
*Handle with bushes assyF34495PlugR051357FrontheadR136592Ring - RatchetR093154
**Handle877110Plate - RetainerF826683Ball retainer plugF061888Sleeve - ChuckR085601
**Throttle valve stem bushingF815426Spring Sleeve ReatinerR086605Through bolt nutS013073ChuckR085600
**'O' ring86098Ball - Steel (5/16" Dia)F035621Chuck sleeveR085900Plug - PipeC068064
**Oil plug76262ChuckF826892Round chuck complete Z8366412Spring - PlungerR051353
**Plug875766Oil Regulating PlugR076262(Includes item No.30 31 32 & 33) Plunger - DetentR051349
*Throttle valve assembly86329Bail - Chuck RetainerS013112Chuck - Round (CP0009C CS & AC)F826892PawlR085588
**Throttle valve stemF61912Sleeve - ChuckR085900Chuck retainer ball   --Spring - PawlR086654
**Throttle valve headF61911FrontheadF816120(Only available as set Z8767412 incl. 17 balls) FrontheadR041685
**Loctite (Grade 'A')-Plug - Ball RetainerF061888Steel retainer ball   --Plunger - ShifterR051348
Steel retainer sleeve assyF827148Plunger - ShifterR051351(only available as set Z8768412 incl.8 balls) Nut - Thru boltP070438
*Retainer sleeveF815566Plunger - Shifter DetentR051352Retainer sleeve springR086605Retainer wireR050584
*Dust excluderF815343Spring - PlungerR051353Hex chuck complete Z8368412Safety labelCA144007
Cylinder exhaust plug72422Sleeve - ShifterF816124(Includes item Nos. 313235 & 36)
Steel retainer ballF35621Plug - Pipe (1/16" NPTF)C102507Chuck (CP 0009 ES)F816159
Steel ballS13112Muffler Compl.F815350Retainer sleeve springF816162
Through bolt nutS13073(Incl. Index 140 145 146 & 147) Retainer sleeve Z8375412
  Muffler Assly.F815448(Includes item No.38 39 40 & 41)
  (Incl. Index 142 144 148 & 149) Retainer  --
  Rotation Release Button Assly.F815447Retainer plateF826683
  (Incl. Index No. 143) Retainer ringF826893
  O-RingC045689Dust excluderF815343
  Muffler Plug AssemblyF815446Muffler complete F826972
  Dead HandleR132714(Includes item Nos.43 45 46  & 47)
  Clamping WasherR132715(Supplied with CP0009CS & ES)
  Depth GaugeR132716Muffler  --
  Screw - Cap (1/4" - 28 x 2)R132717Muffler Screw Set Z3631412
  WasherR132718(Includes item No.45 46 & 47)
  Gasket - Hose TailF064696Capscrew  --
  Hose TailF064695Washer  --
    Nut  --
