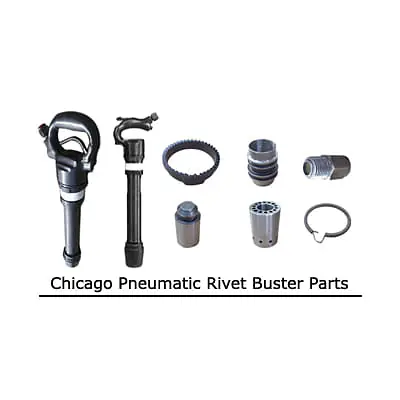

Chicago Pneumatic Rivet Buster Parts
Regular price
₹0.00
Chicago Pneumatic Rivet Buster Parts
Regular price
₹0.00
DESCRIPTION
Chicago Pneumatic Rivet Buster Parts
Vikay Mining Equipments is a global supplier of Chicago Pneumatic Rivet Buster Parts - Cp 4181 , CP 4611P , CP 4181 from India.
| CP 4181D Parts | CP 4181P Parts | CP 4608D Parts | CP 4608P Parts | ||||
| Description | Ref. Part No. | Description | Ref. Part No. | Description | Ref. Part No. | Description | Ref. Part No. |
| Handle complete (Includes item No. 2 3 5 6 7 8 10 11 12 13 14 & 15) | P007399 | Handle complete (Includes item No. 2 3 5 6 | P007164 | Handle complete | P007399 | Handle complete | P007164 |
| Plug - Valve tube | P001884 | 7 9 10 11 12 13 & 14) | Plug | P001884 | Plug - Throttle valve | P001873 | |
| Spring - Valve | P001864 | Plug - Valve tube | P001873 | Throttle valve spring | P001864 | Spring - Throttle valve | P001853 |
| Valve - Throttle ( Includes item No.56 & 7 ) | P005153 | Spring - Valve | P001853 | Valve - Throttle complete | P005153 | Valve - Throttle complete | P001799 |
| Cap - O-ring | P092091 | Valve - Throttle | P001799 | O-ring cap | P092091 | Valve - Throttle | --- |
| Valve - Throttle | ( Includes item No. 5 & 6 ) | Valve - Throttle | --- | O-ring | P083071 | ||
| Throttle valve O-ring | CA088867 | Valve - Throttle | -- | O-ring | CA088867 | Pin - Push | P004834 |
| Pin - Push (Valve) | P006138 | O-ring | P083071 | Push pin | P006138 | Tube - Throttle complete | P007325 |
| Tube -Throttle (Includes item No. 10 & 11) | P007846 | Pin - Push (Valve) | P004834 | Tube - Throttle complete | P007846 | Bushing | P004839 |
| Bushing | Tube - Throttle | P007325 | Bushing | --- | Tube - Throttle | --- | |
| Tube Throttle | (Includes item No. 9 & 10) | Tube Throttle | --- | Bushing-airinlet | P001995 | ||
| Bushing air inlet (3/8"NPTF) (Includes air screen) | P001983 | Bushing | P004839 | Bushing-airinlet | P001995 | Pin - Lever | P001915 |
| Pin - Lever | P005171 | Tube - Throttle | -- | Pin - Lever | P005171 | Lever - Throttle | P001982 |
| Lever - Throttle | P006137 | Bushing - Air inlet (3/8"NPTF) | P001983 | Lever - Throttle | P006137 | Handle | -- |
| Handle (Includes item No. 4 & 9) | Pin - Lever | P001915 | Handle | -- | Valve complete | P007385 | |
| Valve complete (Includes item No. 17 18 19 & 20) | P007385 | Lever - Throttle | P001982 | Valve complete | P007385 | Case-valve | P006319 |
| Case - Valve | P006319 | Handle (Includes item No. 8) | -- | Case-valve | P006319 | Dowel | 3303005086 |
| Dowel | P001632 | Valve complete | P007385 | Dowel | 3303005086 | Valve | P001538 |
| Valve | P001538 | (Includes item No. 16 17 18 & 19) | Valve | P001538 | Lid-valve case | P006320 | |
| Lid - Valve case | P006320 | Case - Valve | P006319 | Lid-valve case | P006320 | Key-lock sleeve | P001430 |
| Cylinder | Dowel | P001632 | Key-lock sleeve | P001430 | Lock sleeve spring clip | P001355 | |
| Key - Lock collar | P001430 | Valve | P001538 | Lock sleeve spring clip | P001355 | Exhaust deflector | P001389 |
| Clip - Spring (Lock collar) | P001355 | Lid - Valve case | P006320 | Exhaust deflector | P001389 | Collar-lock | P001399 |
| Deflector - Exhaust | P001389 | Cylinder | -- | Collar-lock | P001399 | Piston | 3303005094 |
| Collar - Lock | P001399 | Key - Lock collar | P001430 | Piston | 3303005094 | Sleeve upper | P156988 |
| Piston (8" Stroke) | R157982 | Clip - Spring (Lock collar) | P001355 | Sleeve upper | P156988 | Lower sleeve | P072333 |
| Piston (11" Stroke) | R157981 | Deflector - Exhaust | P001389 | Lower sleeve | P072333 | Bumper | 3303005103 |
| Sleeve - Upper | P156988 | Collar - Lock | P001399 | Bumper | 3303005103 | Cylinder complete | 3303005380 |
| Sleeve - Lower | P072333 | Piston (8" Stroke) | R157982 | Cylinder complete | 3303005380 | Cylinder | -- |
| Bumper | P072334 | Piston (11" Stroke) | R157981 | Cylinder | -- | Retainer | 3303005340 |
| Sleeve - Retainer | P071849 | Sleeve - Upper | P156988 | Retainer | 3303005340 | Spring-lock | P073942 |
| Spring - Lock | P073942 | Sleeve - Lower | P072333 | Spring-lock | P073942 | Data plate (Not availablr separately) | - |
| Bumper | P072334 | Data plate (Not available separately) | - | Safety Label | 3310160200 | ||
| Sleeve - Retainer | P071849 | Safety Label | 3310160200 | Warning label | P157290 | ||
| Spring - Lock | P073942 | Warning label | P157290 | Noise level label | - | ||
| Noise level label | - | Eject warning label | 3310157200 | ||||
| Eject warning label | 3310157200 |
| CP 4611D Parts | CP 4611P Parts | CP 4689 Parts | |||
| Description | Ref. Part No. | Description | Ref. Part No. | Description | Ref. Part No. |
| Handle complete | P007399 | Handle complete | P007164 | Bushing-Air Inlet (Inch: Screen) 3/8" NPTF | P001983 |
| Plug - Valve tube | P001884 | Plug - Valve tube | P001873 | Spring-Throttle Valve | P001853 |
| Spring - Valve | P001864 | Spring - Valve | P001853 | Valve-Throttle (Incl: Index No. 7) | P001799 |
| Valve - Throttle complete | P005153 | Valve - Throttle complete | P001799 | "0" Ring (-011) | P083071 |
| Cap - O-ring | P092091 | Valve - Throttle | - | Tube-Throttle Valve (Incl: Index No. 10) | P007198 |
| Valve - Throttle | - | O-ring | P083071 | Bushing -Push Pin | P004839 |
| Throttle valve O-ring | CA088867 | Pin - Push | P004834 | Pin-Push | P004834 |
| Pin - Push | P006138 | Tube - Throttle complete | P007325 | Plug -Throttle Tube | P001873 |
| Tube - Throttle complete | P007846 | Bushing | P004839 | Lever -Throttle | P001929 |
| Bushing | - | Tube - Throttle | - | Pin-Throttle Lever | P001915 |
| Tube Throttle | - | Bushing - Air inlet | P001995 | Case-Valve Complete (Incl: Index No's. 23 thru 27) | P007180 |
| Bushing air inlet | P001995 | Pin - Lever | P001915 | Lid-Valve Case | P006584 |
| Pin - Lever | P005171 | Lever - Throttle | P001982 | Valve-Cycling | P001535 |
| Lever - Throttle | P006137 | Handle | - | Case-Valve | P006583 |
| Handle | - | Valve complete | P007385 | Dowel-valve Case | P001631 |
| Valve complete | P007385 | Case - Valve | P006319 | Handle Complete (Incl: Index No's. 1 3 5 11 12 14 15 & 32) | P007155 |
| Case - Valve | P006319 | Dowel | 3303005086 | Handle (Incl: Index No. 9) | P007348 |
| Dowel | 3303005086 | Valve | P001538 | Key -Lock Collar | P001419 |
| Valve | P001538 | Lid - Valve case | P006320 | Clip -Lock Collar Spring | P001373 |
| Lid - Valve case | P006320 | Cylinder | - | Collar-Lock | P001398 |
| Cylinder | - | Key - Lock collar | P001430 | Cylinder (5 7/16" Stroke) | P001137 |
| Key - Lock collar | P001430 | Clip - Spring | P001355 | Cylinder (9 1/2" Stroke) | P001004 |
| Clip - Spring | P001355 | Deflector - Exhaust | P001389 | Piston | P001212 |
| Deflector - Exhaust | P001389 | Collar - Lock | P001399 | Retainer-A. T. Rivet Set (Incl: Index No's 69 71 & 72) | P122232 |
| Collar - Lock | P001399 | Piston | 3303005093 | Sleeve-Retainer | P071534 |
| Piston | 3303005093 | Sleeve - Upper | P156988 | Spring-Lock | P070006 |
| Sleeve - Upper | P156988 | Sleeve - Lower | P072333 | rin -Set Retainer | P002494 |
| Sleeve - Lower | P072333 | Bumper | 3303005103 | Set-Rivet (Straight Shank) | * |
| Bumper | 3303005103 | Sleeve - Retainer | P071849 | Deflector-Exhaust (Incl: Index No. 136) | P001386 |
| Sleeve - Retainer | P071849 | Spring - Lock | P073942 | Deflector -Exhaust Rivet | P002301 |
| Spring - Lock | P073942 | Data plate | - | ||
| Data plate | - | Safety label | 3310160200 | ||
| Safety label | 3310160200 | Warning label | P157290 | ||
| Warning label | P157290 | Noise level label | - | ||
| Noise level label | - | Eject warning label | 3310157200 | ||
| Eject warning label | 3310157200 |
