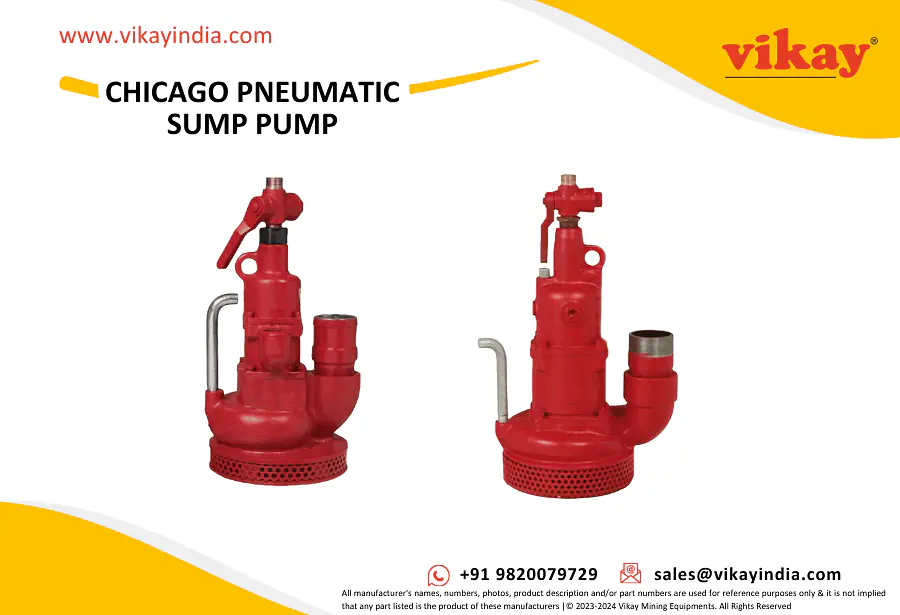

Chicago Pneumatic Sump Pump
Regular price
₹0.00
Chicago Pneumatic Sump Pump
Regular price
₹0.00
DESCRIPTION
Chicago Pneumatic Sump Pump
Vikay Mining Equipments is a global supplier of Sump Pump - CP 0010 Chicago Pneumatic Sump Pump, CP 0020 Chicago Pneumatic Sump Pump from India.
| Particulars | CP 0010 | CP 0020 |
| Power | 22 kW | 29 kW |
| Weight | 195 kg | 305 kg |
| Min opening needed | 210x230 mm | 230x240 mm |
| Min water depth | 22 mm | 22 mm |
| Max suction lift | - m | - m |
| Max head | 305 m | 274 m |
| Air consumption | 47 l/s | 51 l/s |
| Air inlet | 3/4 inch NPT | 3/4 inch NPT |
| Air outlet | 1 inch NPT | 1 1/4 inch NPT |
| Discharge inlet | - inch | - inch |
| Discharge outlet | (2 inch NPT) | 2½ inch BSP |
| Max solid content | - | - |
| Sound power level guaranteed (2000/14/EC) 1) | 122 dB(A) | 122 dB(A) |
| Sound pressure level (ISO 11203) 1) | 109 dB(A) | 109 dB(A) |
| Sound power uncertainty value K | 25 dB(A) | 25 dB(A) |
| Recommended air supply hose size | 19 mm | 25 mm |
| Part number (at 6 bar) | T022224 | T022185 |
| Stock Code No. | Z0010464 | Z0010466 |
