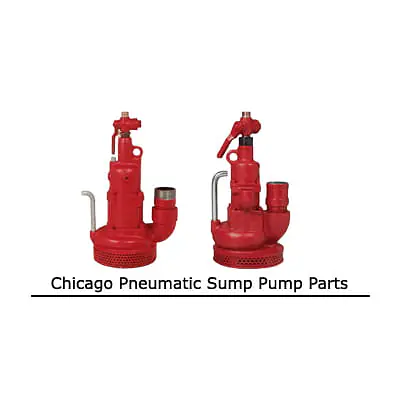

Chicago Pneumatic Sump Pump Parts
Regular price
₹0.00
Chicago Pneumatic Sump Pump Parts
Regular price
₹0.00
DESCRIPTION
Chicago Pneumatic Sump Pump Parts
Vikay Mining Equipments is a global supplier of Chicago Pneumatic Sump Pump Parts - Cp 10 Chicago Pneumatic Sump Pump Parts, Cp 20 Chicago Pneumatic Sump Pump Parts from India.
| Cp 10 Parts | Cp 20 Parts | ||
| Description | Ref. Part No. | Description | Ref. Part No. |
| Valve (3/4" male) | R137313 | Valve (3/4" male) | R137313 |
| Ring - Retainer | C090746 | Bushing - Air inlet | R137314 |
| Filter - Screen | C078057 | Governor housing complete | C086466 |
| Air inlet bushing | C113782 | O-ring | C084172 |
| O-ring | C046471 | Strainer - Air | C085374 |
| Housing - Governor | C113799 | Plug - Oil | C086130 |
| Plug - Oil | C085233 | O-ring | P083082 |
| O-ring | A082777 | Housing - Governor | C085366 |
| Screw - Cap (Allen) (1/4" - 20 x 3/4") | C064806 | Spring | S017510 |
| Lock washer (1/4") | C012058 | O-ring | C079489 |
| Wick | C113787 | Valve - Oiler | C085378 |
| Plug - Orifice | C113789 | O-ring | P083071 |
| Gasket - Housing | C113791 | Seat - Oiler valve | C085379 |
| Ring - Retainer | S087190 | Plug - Oiler | C085380 |
| Retainer - Spring | C113780 | Gasket - Governor housing | C085363 |
| Spring - Compression | C113779 | O-ring | C085386 |
| Valve - Governor | C090935 | Lock wire | C056975 |
| Pin - Governor valve | C084364 | Screw | C056974 |
| Cage - Governor | C113798 | Retainer - Governor spring | C089835 |
| Governor body complete (Includes item | Z8769462 | Spring - Governor | C085372 |
| Pin - Governor weight | -- | Valve - Governor | C085370 |
| Button - Push pin | -- | Pin - Governor valve | C085371 |
| Ring - Retaining | -- | O-ring | C085385 |
| Pin - Governor push | -- | Cage - Governor | C085368 |
| Weight - Governor | -- | Disc - Gage tension | C085369 |
| Body - Governor | -- | Lock washer | S008020 |
| Retainer - Pin | -- | Screw | S007685 |
| Bearing - Ball | S014490 | Governor body complete (Includes item | C086467 |
| Washer - Tension | C089794 | Body governor | -- |
| Shim - Motor | C113786 | Nylon insert | -- |
| End plate - Upper | C089790 | Pin - Governor push | -- |
| Rotor complete | Z8770462 | Weight - Governor | -- |
| Sleeve - Rotor | C089779 | Spacer - Governor weight | -- |
| Body - Rotor | Pin - Governor weight | -- | |
| Blade - Rotor | C092050 | Retainer - Pin | -- |
| Shaft - Rotor | C113797 | Bearing - Ball | C013654 |
| Pin - Roll (.156" x 9/16" Lg.) | P056138 | Plate - Upper end | *C085360 |
| Liner - Motor | C092047 | Spacer - Rotor bearing (Upper) | C085358 |
| Pin - Roll (.156" x 1" Lg.) | C088617 | Rotor complete | Z8777463 |
| Plate - Lower end | C113795 | Blade - Rotor | C085362 |
| Bearing ball | S039951 | Rotor | -- |
| Housing - motor | Spacer - Rotor bearing (Lower) | C085357 | |
| Plug - Pipe (1/8") | C035390 | Shim complete | Z8778463 |
| Screw cap | P070423 | Shim (0.001") | -- |
| Lock washer | C011005 | Shim (0.002") | -- |
| O Ring | CA087468 | Shim (0.003") | -- |
| Seal - Shaft | C113792 | Pin - Dowel | C085355 |
| Plate - Wear (Upper) | C113783 | Liner | *C085361 |
| Screw - Flat head | C113793 | Plate - Lower end | *C085356 |
| Sleeve - Impeller | C113790 | O-ring | C086699 |
| Impeller - Pump | F814673 | Bearing - Ball | C085382 |
| Spacer (Retaining) | C113785 | Gasket - Seal plate | C088457 |
| Bolt - Hex. (Long lok) (5/16" - 18 x 5/8") | C113788 | O-ring | C084173 |
| Plate - Wear (Lower) | F814672 | Seal - Oil | C088616 |
| Shim (Wear plate) (.005") | C115755 | Plate - Seal | C088456 |
| Shim (Wear plate) (.003") | F814688 | Housing - Motor | C085348 |
| Impeller housing complete | O-ring | H083084 | |
| Housing - Pump | Plate - Upper wear | C088458 | |
| Screen - Sump | C113794 | Sleeve - Impeller | C088455 |
| Nipple - Outlet | R137579 | O-ring | C084400 |
| Handle - Pump | C085347 | Impeller | C088758 |
| Pipe - Exhaust (1" NPT 1" BSP) | R137578 | Plate - Lower wear | C088459 |
| Pipe - Exhaust (NPTF) | S038723 | Housing - Impeller | -- |
| Screen | C085342 | ||
| Handle | C085347 | ||
| Nipple (2 1/2" BSP) | R137581 | ||
| Pipe - Exhaust (NPT) | C086080 | ||
| Pipe - Exhaust (BSP) | R137580 | ||
| Nut - Brass (3/8"-16) | C085384 | ||
| Lock washer (3/8") | C035166 | ||
| Stud (3/8" - 16 x 3/8") | C061078 | ||
| Shims | C048412 |
