Clutch - Atlas Copco Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
Clutch for Atlas Copco Air Compressor
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Clutch for Atlas Copco Air Compressor from India

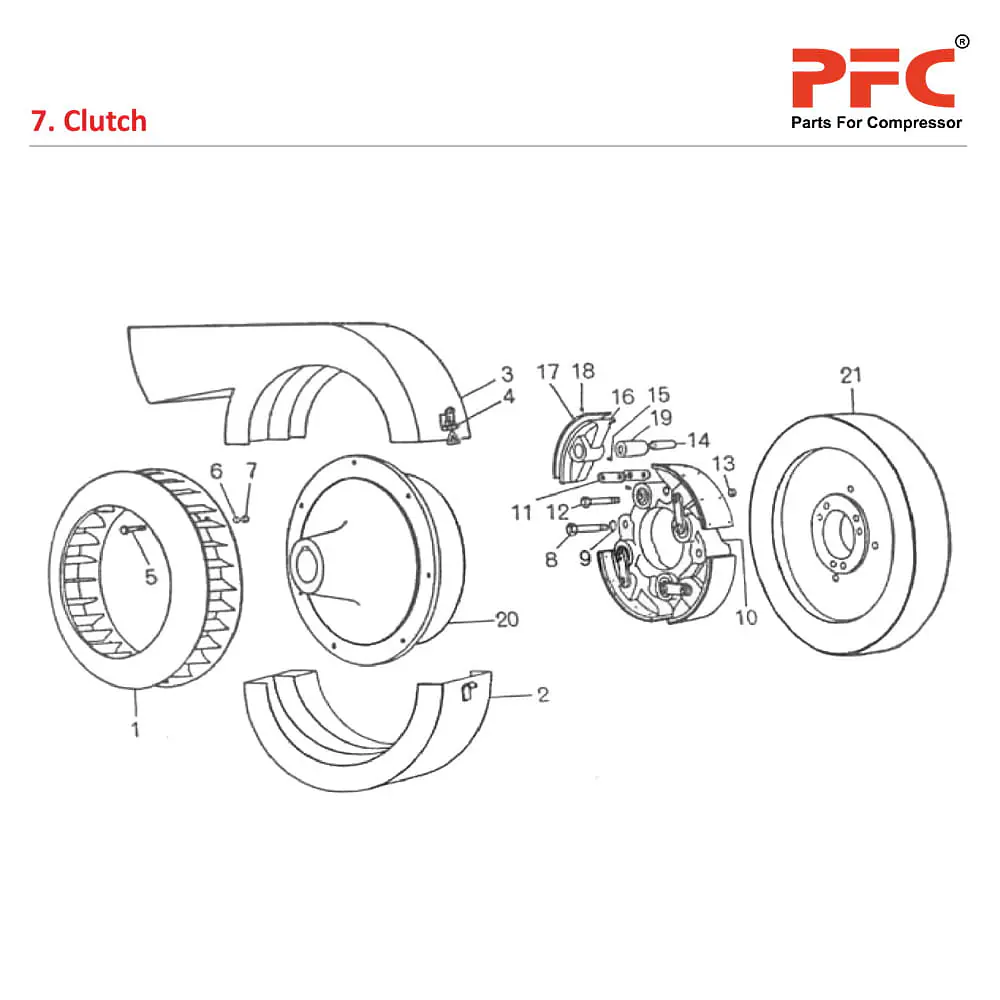

Clutch
| SR. NO. | DESCRIPTION | REF PART NO. | QTY |
| 1 | Fan (Not suppl. Sep.) | 9718206300 | 1 |
| 2 | Drum, fan, lower | 1613013800 | 1 |
| 3 | Drum, fan, upper | 1613013902 | 1 |
| 4 | – Latch, eccentric | 1614084802 | 1 |
| 5 | Screw U6S 5/16" x 1" D 80 | 144324800 | 10 |
| 6 | Spring washer FBB 8.2 | 333212500 | 10 |
| 7 | Nut, U6M 5/16" UNC | 268310500 | 10 |
| 8 | Screw U6S 5/8" x 3" D 80 | 144345400 | 4 |
| 9 | Lock washer | 1614012100 | 4 |
| – | Coupling, compl. | 1020261600 | 1 |
| 10 | – Hub with four bushes | 1020261601 | 1 |
| 11 | – Link | 1020261605 | 8 |
| 12 | – Screw 7/16" BSF x 3 3/8" with nut | 1020261606 | 8 |
| 13 | – Nut, 7/16" BSF | 1020261611 | 8 |
| 14 | – Bush | 1020261604 | 8 |
| 15 | – Grub screw 5/16" BSW x 3/8" | 1020261609 | 4 |
| – | Shoe, compl. with Bush | 1020261608 | 4 |
| 16 | – Shoe (Not suppl. Sep.) | --- | 1 |
| 17 | – Lining | 1020261603 | 1 |
| 18 | – Rivet | 1020261610 | 8 |
| 19 | – Bush | 1020261607 | 1 |
| 20 | Clutch, drum | 1613010100 | 1 |
| 21 | Flywheel | 1615099100 | 1 |
