DESCRIPTION
Compl. Air System 0187077000 Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Compl. Air System 0187077000 for Alimak Pneumatic Raise Climber from India.
Product
- Page 1

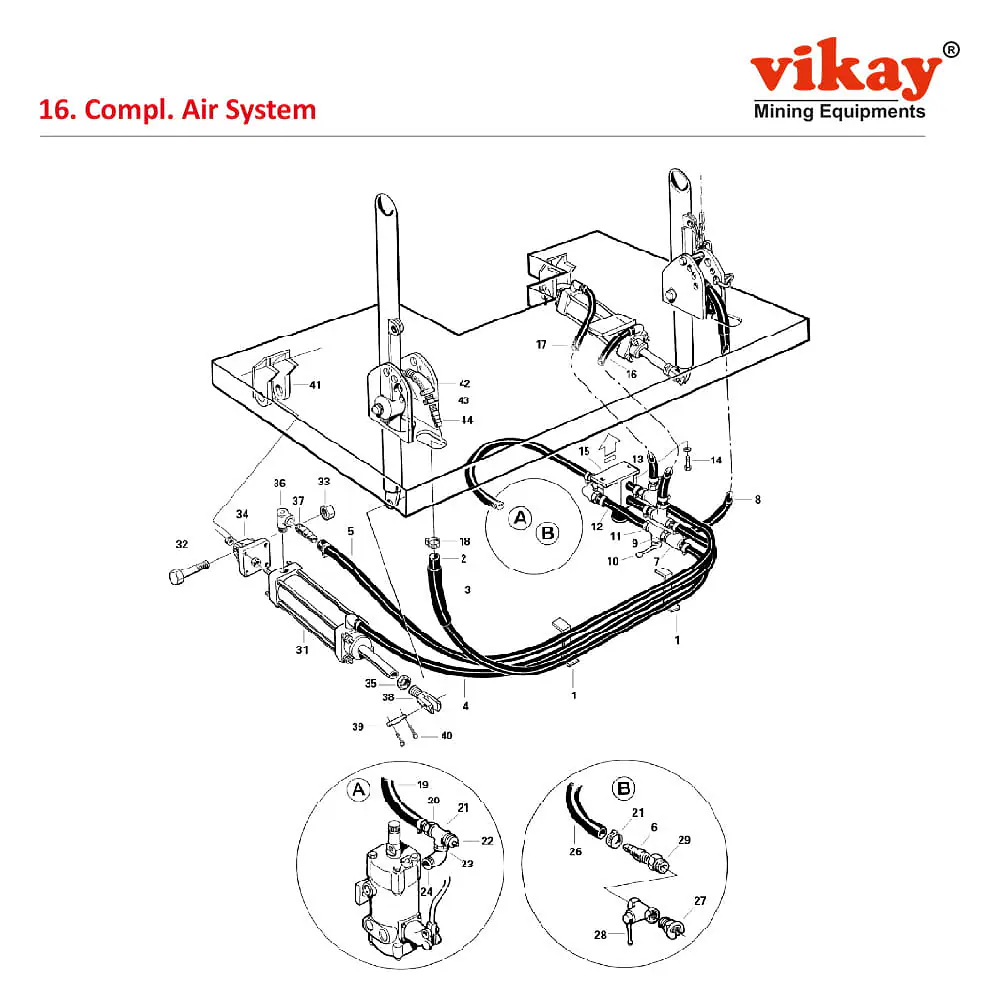

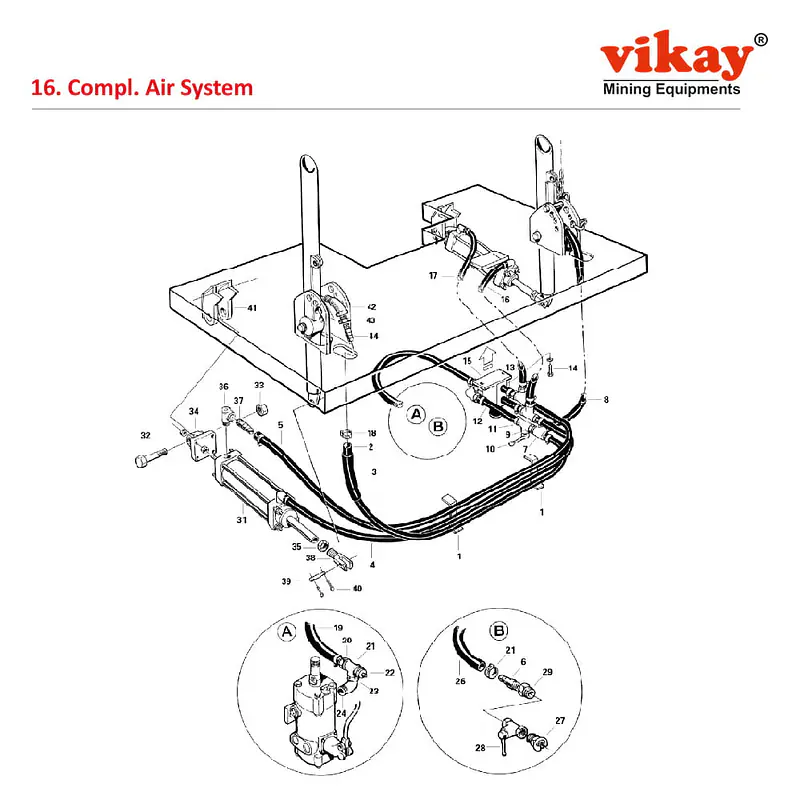

Compl. Air System 0187077000
| No. | Description | Designation | Ref. Part No. | ||
| 1 - 29 | Compl. air system | STH-5 E/EE & | 0187077000 | ||
| STH-5 D/DD excl. | |||||
| item. 19 - 25 | |||||
| 1 - 25 | Compl. air system | STH-5 L/LL excl. | 0177345000 | ||
| item. 26 - 29 | |||||
| 1 | Bracket | 0477667000 | |||
| 2 | Air hose | 3001150201 | |||
| 3 | Air hose | 3001150251 | |||
| 4 | Air hose | 3001150201 | |||
| 5 | Air hose | 3001150201 | |||
| 6 | Hose nipple | 3000839701 | |||
| 7 | T-tube | 3000839703 | |||
| 8 | Air hose | 3001150201 | |||
| 9 | Reducing nipple | 3000840205 | |||
| 10 | Valve | 3001027211 | |||
| 11 | Bushing | 3001217109 | |||
| 12 | Air hose | 3001150201 | |||
| 13 | Air hose | 3001150201 | |||
| 14 | Screw | M6S 6x14-8.8-fz | 3000071367 | ||
| 15 | Valve | 9066990000 | |||
| 16 | Air hose | 3001150201 | |||
| 17 | Air hose | 3001150201 | |||
| 18 | Hose clamp | 3000253024 | |||
| 19 | Air hose | 3001150201 | |||
| 20 | Bushing | 3000840312 | |||
| 21 | T-tube | 3000839416 | |||
| 22 | Pipe plug | 3000840516 | |||
| 23 | Hexagon nipple | 3000840116 | |||
| 24 | Pipe angle | 3000839216 | |||
| 25 | |||||
| 26 | Air hose | 3001150201 | |||
| 27 | Claw coupling | 3000934101 | |||
| 28 | Valve | 3001027211 | |||
| 29 | Bushing | 3001217109 | |||
| 31-40 | Compl. cylinder | 9009609000 | |||
| 31 | Air cylinder | 3000965303 | |||
| 32 | Screw | M6S 20x110-8.8-fz | 3000071686 | ||
| 33 | Lock nut | L-K M6M 20-8.-fz | 3000438126 | ||
| 34 | Cylinder bracket | 3000965747 | |||
| 35 | Nut | 3000965756 | |||
| 36 | Coupling | 3000896315 | |||
| 37 | Hose nipple | 2305029102 | |||
| 38 | End of piston rod | 9009610000 | |||
| 39 | Shaft | 0475671000 | |||
| 40 | Cotter pin | SP 6x40-fz | 3000427231 | ||
| 41 | Bracket | 0376408000 | |||
| 42 | Pipe angle | 0475668000 | |||
| 43 | Bushing | 3000840305 | |||
| 44 | Hose nipple | 3000839701 |
