DESCRIPTION
Compl. Central Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Compl. Central for Alimak Pneumatic Raise Climber from India.
Product
- Page 1

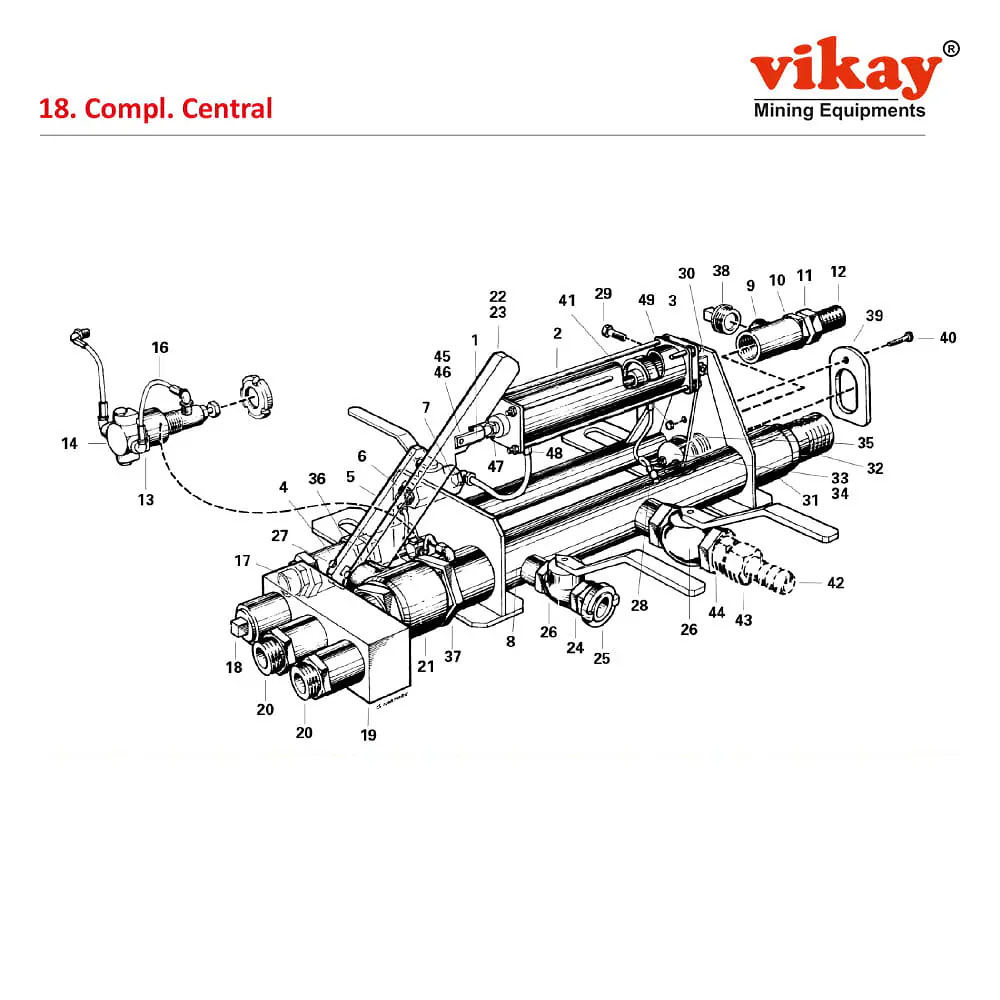

Compl. Central
| No. | Description | Designation | Ref. Part No. | ||
| 1 - 49 | Compl. central | LVL | 0180696000 | ||
| 1 | Piston rod coupling | 9022608000 | |||
| 2 | Double acting | 3000965128 | |||
| Â | cylinder | ||||
| 3 | Bracket | 9022609000 | |||
| 4 | Cock | 3001027501 | |||
| 5 | Handle | 0480713000 | |||
| 6 | Bushing | 3000840304 | |||
| 7 | Air cock | 3001027211 | |||
| 8 | Pipe central | 0280698000 | |||
| 9 | T-tube | 3000837516 | |||
| 10 | Hexagon nipple | 0415998000 | |||
| 11 | Nut | 0415997000 | |||
| 12 | Hose nipple | 0416002000 | |||
| 13 | Angular coupling | 3002017085 | |||
| 14 | Pressure regulator | 0481740000 | |||
| 15 | |||||
| 16 | Superpolyamid | 3001042101 | |||
| Â | pipes | ||||
| 17 | Hexagon nipple | 3001527201 | |||
| 18 | Pipe plug | 3000840516 | |||
| 19 | Pipe | 0480707000 | |||
| 20 | Hexagon nipple | 0415998000 | |||
| 21 | Ball valve | 3001027205 | |||
| 22 | Handle | 9090616000 | |||
| 23 | Screw | M6S 6x50-8.8-fz | 3000071380 | ||
| 24 | Bushing | 3000840325 | |||
| 25 | Toothed coupling | 3000934103 | |||
| 26 | Valve | 3001022107 | |||
| 27 | Screw | M6S 6x40 | 3000071378 | ||
| 28 | Angular coupling | 3002017085 | |||
| 29 | Screw | M6S 12x65 | 3000071545 | ||
| 30 | Lock nut | L-K M6M12 | 3000438122 | ||
| 31 | Sleeve | 3000837619 | |||
| 32 | Hose nipple | 0476046000 | |||
| 33 | Coupling | 3002017005 | |||
| 34 | Cover | 0480714000 | |||
| 35 | Hexagon nipple | 0415998000 | |||
| 36 | Pipe nut | 3000837816 | |||
| 37 | Pipe nut | 3000837819 | |||
| 38 | Pipe plug | 3000840516 | |||
| 39 | Lock washer | 0484945000 | |||
| 40 | Screw | M6S 6x20 | 3000071370 | ||
| 41 | Lock nut | L-K M6M6 | 3000438116 | ||
| 42 | Hose nipple | 3000969177 | |||
| 43 | Nut | 3000970335 | |||
| 44 | Hexagon nipple | 3000969347 | |||
| 45 | Screw | M 10x50 | 3000071501 | ||
| 46 | Lock nut | L-K M6M 10 | 3000438120 | ||
| 47 | Nut | M16x1,5 | 3000084324 | ||
| 48 | Coupling | 3002017005 | |||
| 49 | Screw | M6x16 | 3000071368 |
