DESCRIPTION
Complete Brake Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Complete Brake Replacement Parts for Alimak Pneumatic Raise Climber from India.
Product
- Page 1

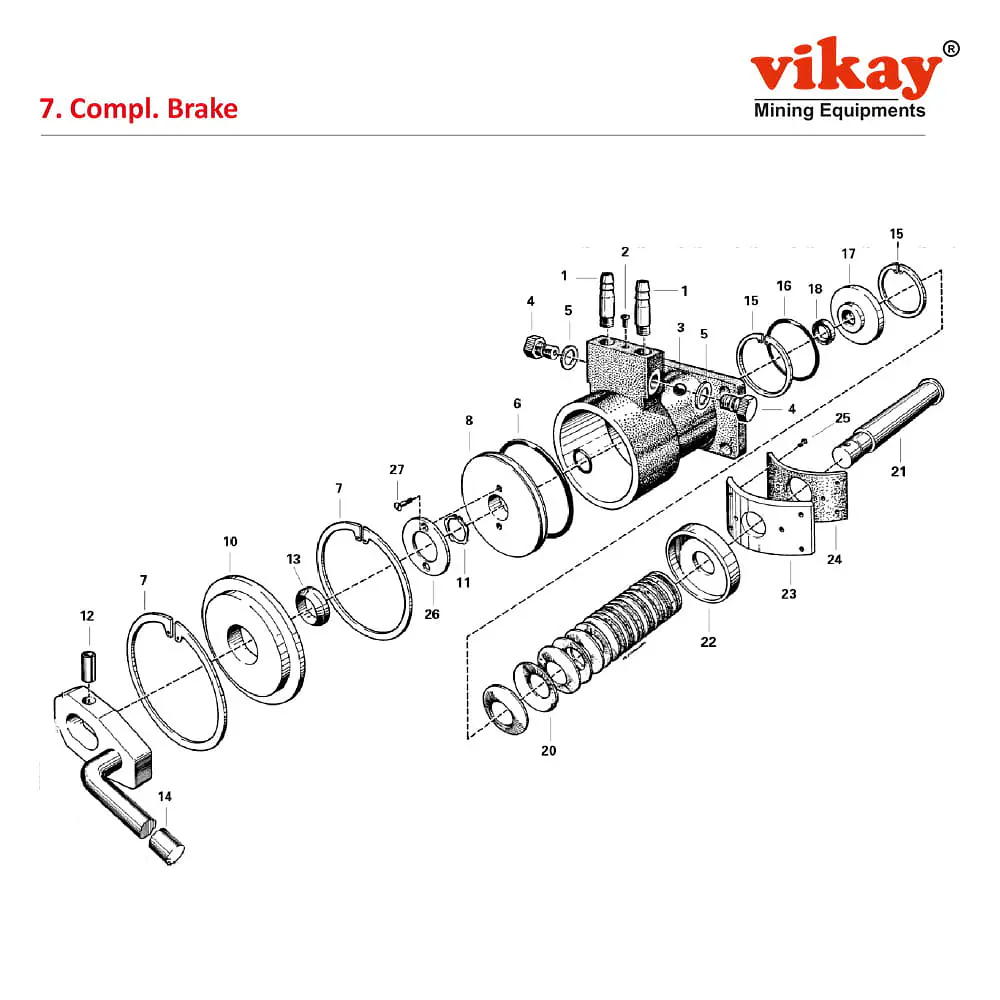

Complete Brake 0275684000
| No. | Description | Designation | Ref. Part No. | ||
| 1 -27 | Compl. brake cylinder | 0275684000 | |||
| 1 | Hose nipple | 0471082000 | |||
| 2 | Screw | MCS 6x12-5.8-fz | 3000076366 | ||
| 3 | Ball | 3000131035 | |||
| 4 | Valve seat | 0471085000 | |||
| 5 | Copper washer | 3000740810 | |||
| 6 | O-ring | 3000136523 | |||
| 7 | Circlip | SgH 120 | 3000133171 | ||
| 8 | Piston | 0475687000 | |||
| 9 | O-ring | 3000136404 | |||
| 10 | Cover | 0475686000 | |||
| 11 | Circlip | A25x1,2K | 3000730128 | ||
| 12 | Tension pin | FRP 10x50 | 3000134421 | ||
| 13 | Seal | 3001026101 | |||
| 14 | Brake opening lever | 0471086000 | |||
| 15 | Circlip | SgH 90 | 3000133160 | ||
| 16 | O-ring | 3000136430 | |||
| 17 | Cylinder bottom | 0471089000 | |||
| 18 | Seal | 3001078810 | |||
| 19 | Brake cylinder | 0275688000 | |||
| 20 | Cup spring | 0484562000 | |||
| 21 | Brake shaft | 0471080000 | |||
| 22 | Pressure plate | 0471084000 | |||
| 23 | Brake shoe | 0478201000 | |||
| 24* | Brake lining | 0472200000 | |||
| 25* | Blind rivet | Alu-F-6x16 | 3000506904 | ||
| 26 | Support washer | 0477472000 | |||
| 27 | Slotted screw | MFS 4x10-5.8-fz | 3000077289 |
