DESCRIPTION
Complete Drive Unit Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Complete Drive Unit for Alimak Replacement Parts Pneumatic Raise Climber from India.
Product
- Page 1

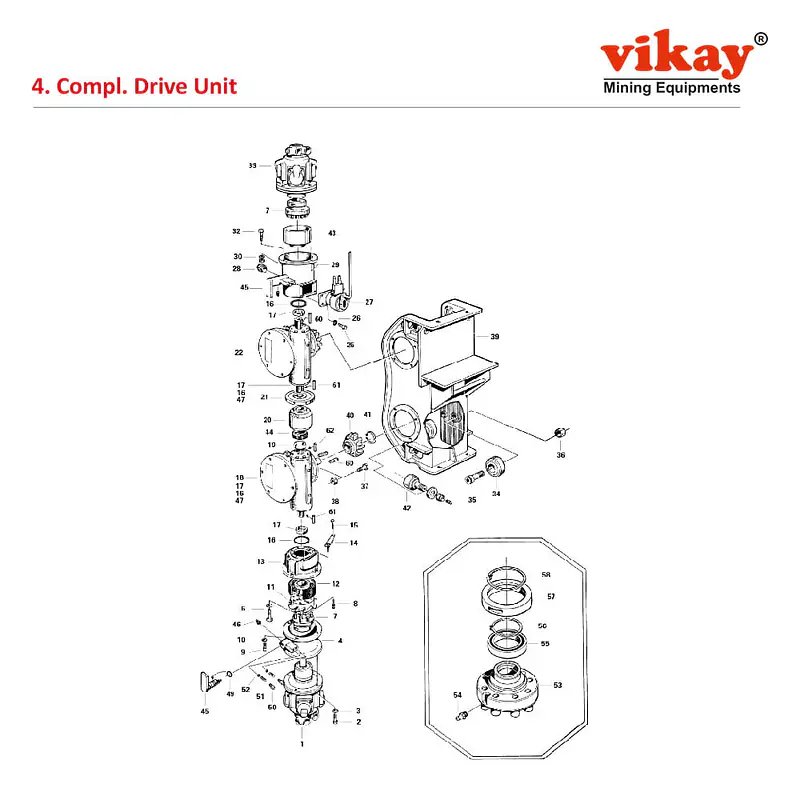

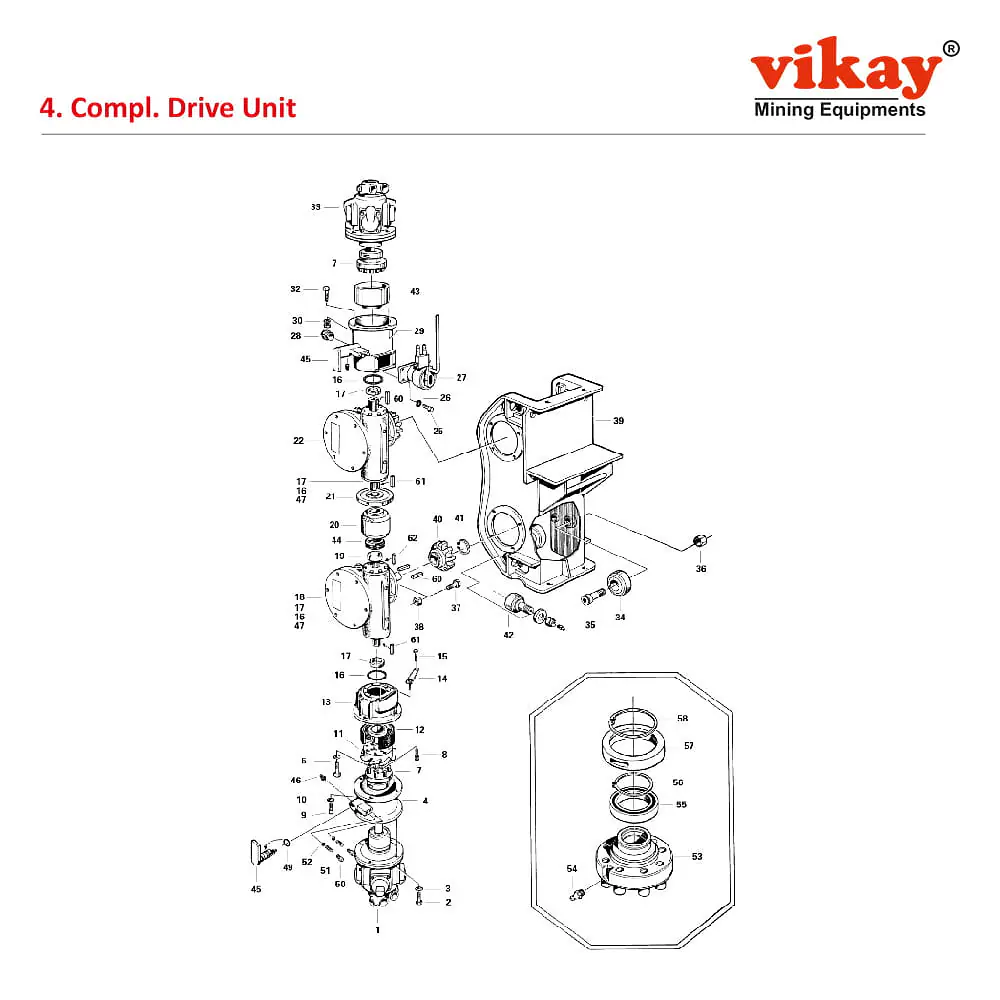

Complete Drive Unit
| No. | Description | Designation | Ref. Part No. | ||
| 1-62 | Compl. drive unit | 0178694000 | |||
| 1 | Air motor (K-14H) | 179926 | 9013834102 | ||
| 2 | Screw | M6S 12x45-8.8-fz | 3000071541 | ||
| 3 | Washer | BRB 13x24 HB200-fz | 3000091178 | ||
| 4 | Flange f. motor | 272851 | 9001016000 | ||
| 5 | Screw | M6S 12x40-8.8-fz | 3000071540 | ||
| 6 | |||||
| 7 | Compl. coupling | 0475155000 | |||
| 8 | Screw | MC6S 10x20-8.8-fz | 3000147491 | ||
| 9 | Screw | M6S 12x40-8.8-fz | 3000071540 | ||
| 10 | Washer | BRB 13x24 HB200-fz | 3000091178 | ||
| 11 | Coupling half w. | 0272852000 | |||
| fan | |||||
| 12 | Nave w. centrifugal | 478175 | 9001014000 | ||
| weights | |||||
| 13 | Brake drum | 272596 | 9001015102 | ||
| 14 | Inspection cover | 0474796000 | |||
| 15 | Screw | M6S 6x12-8.8-fz | 3000071366 | ||
| 16 | O-ring | 3000136431 | |||
| 17 | Sealing ring | 3000916192 | |||
| 18 | Worm gear, low | 278190/278192 | 0289985000 | ||
| 19 | Distance ring | 0471070000 | |||
| 20 | Chain coupling | 0476444000 | |||
| 21 | Flywheel | 0371349000 | |||
| 22 | Wormgear, upper | 278190/278192 | 0289985000U | ||
| 23 | |||||
| 24 | |||||
| 25 | Screw | M6S 10x30-8.8-fz | 3000071495 | ||
| 26 | Washer | BRB 10,5x22 HB200-fz | 3000091173 | ||
| 27 | Brake cylinder | 0275684000 | |||
| 28 | Plug | 3000858151 | |||
| 29 | Coupling housing | 272595 | 9001006000 | ||
| 30 | Lock nut | L-K M6M 12-8.-fz | 3000438122 | ||
| 31 | |||||
| 32 | Screw | M6S 12x50-8.8-fz | 3000071542 | ||
| 33 | Air motor (K-14V) | 113752 | 9013834101 | ||
| 34 | Guide roller | 0471138000 | |||
| 35 | Screw | MC6S 20x70-12.9 | 3000669678 | ||
| 36 | Lock nut | L-K M6M 20-8.-fz | 3000438126 | ||
| 37 | Screw | M6S 16x45-8.8-fz | 3000071629 | ||
| 38 | Lock nut | L-K M6M16-8.-fz | 3000438124 | ||
| 39 | U-frame | 0171146000 | |||
| 40 | Pinion | 0371053000 | |||
| 41 | Circlip | SgA-50 | 3000132142 | ||
| 42 | Guide roller | 438665 | 9018650000 | ||
| 43 | Brake drum | 0371072000 | |||
| 44 | V-ring | 3000222210 | |||
| 45 | Disengagem. lever | 0472855000 | |||
| 46 | Grease nipple | 3000221046 | |||
| 47 | Bearing bush | 0471064000 | |||
| 48 | |||||
| 49 | O-ring | 3000136407 | |||
| 50 | Pipe plug | 3000840510 | |||
| 51 | Compression spring | 0412234000 | |||
| 52 | Steel ball | Ø3/8" | 3000131032 | ||
| 53* | Coupling half | 0478173000 | |||
| 54* | Grease nipple | 3000221021 | |||
| 55* | Ball bearing | 3000638010 | |||
| 56* | Circlip | SgA 50 | 3000132142 | ||
| 57* | Coupling ring | 0472854000 | |||
| 58* | Circlip | SgH 80 | 3000133156 | ||
| 59 | |||||
| 60 | Key | 3000741436 | |||
| 61 | Key | 3000137439 | |||
| 62 | Key | 3000137434 |
