DESCRIPTION
Complete Safety Device Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Complete Safety Device Replacement Parts for Alimak Pneumatic Raise Climber from India.
Product
- Page 1

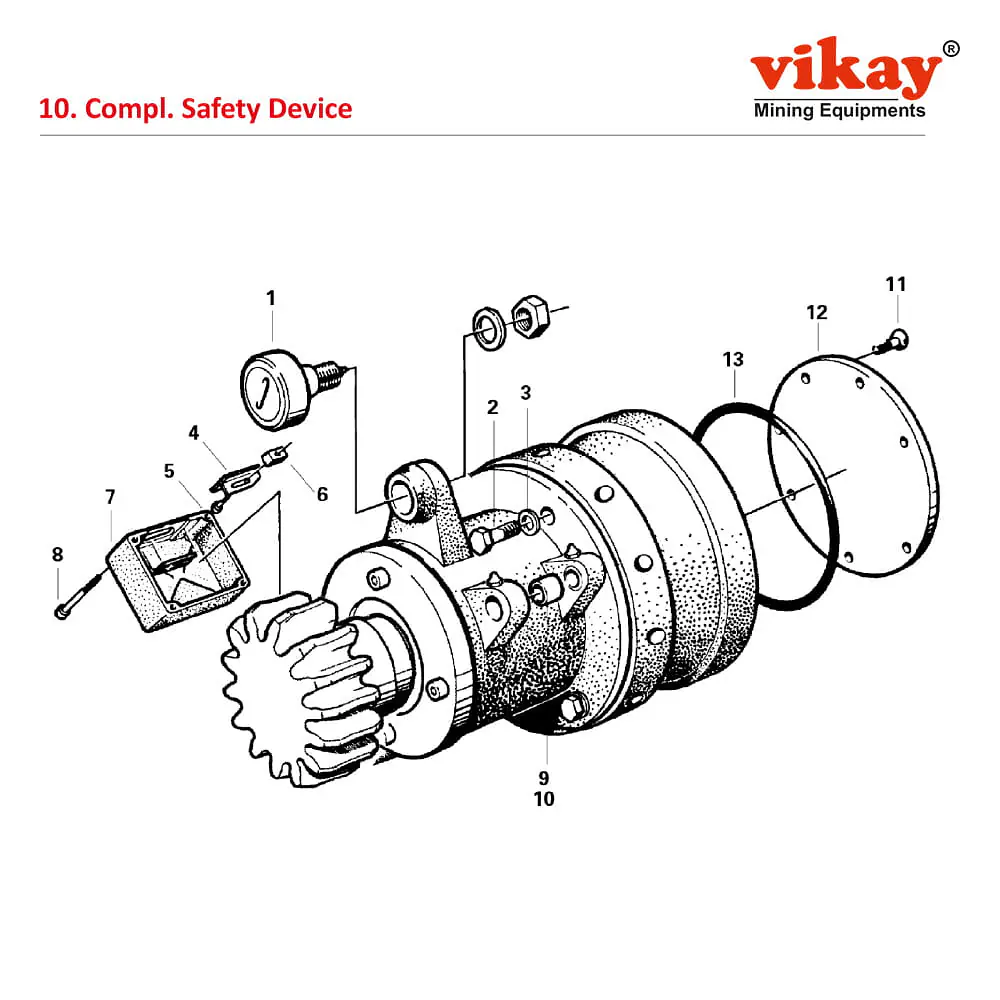

Complete Safety Device
| No. | Description | Designation | Ref. Part No. | ||
| - | Compl. safety device | 0184338000 | |||
| - | Reset lever | 0386150000 | |||
| 1 | Guide roller | Ø72 | 9018655000 | ||
| 2 | Screw | M6S 12x25-8.8-fz | 3000071534 | ||
| 3 | Washer | BRB 13x24 HB200-fz | 3000091178 | ||
| 4 | Pointer | 0486146000 | |||
| 5 | Screw | MC6S M5x25-8.8-fz | 3000147333 | ||
| 6 | Spacer | 0486149000 | |||
| 7 | Cup w.observation | 9065560000 | |||
| glas | |||||
| 8 | Screw | MC6S 6x40-8.8-fzb | 3000147378 | ||
| 9 | Bushing | 0445031000 | |||
| 10 | Bushing | 0445031040 | |||
| 11 | Screw | MC6S 6x16 A4-80 | 3002022368 | ||
| 12 | Cover | 9064690000 | |||
| 13 | O-ring | 3000136829 |
