DESCRIPTION
Compressor Drive, Air Receiver And Accessories For Ingersoll Rand Type 30 - Model 15T
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - TCompressor Drive, Air Receiver And Accessories For Ingersoll Rand Type 30 - Model 15T from India.

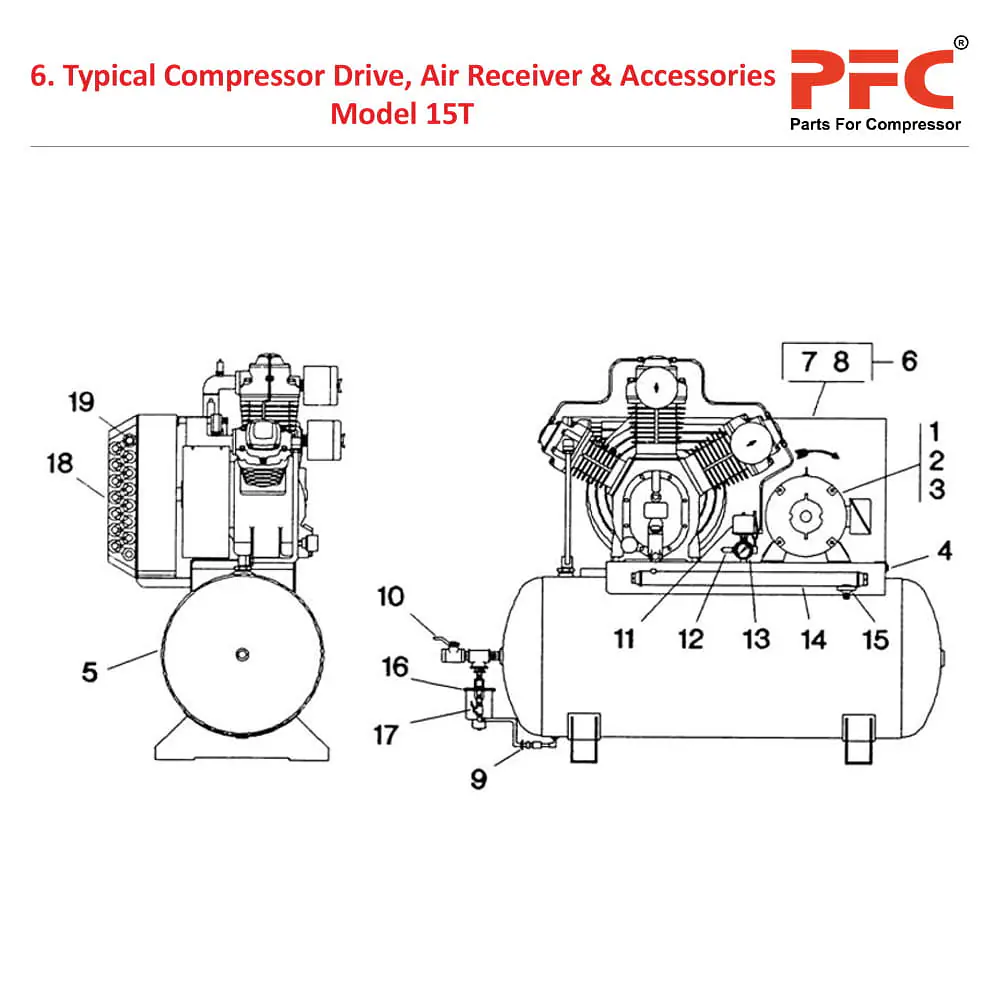

Compressor Drive, Air Receiver And Accessories
| Sr.No | Ref. Part Number | Description | Qty |
| 6-1 | Motor, electric | 1 | |
| 6-2 | Pulley, motor | 1 | |
| 6-3 | 95100541 | Belt, "V" (15 HP) | 3 |
| 6-3 | 95100558 | Belt, "V" (20 & 25 HP) | 3 |
| 6-4 | 32188708 | Tightener, belt - complete | 1 |
| 6-5 | 32162406 | Receiver assly-120 gal.horizontal - 200 psig | 1 |
| 6-5 | 32162414 | Receiver assly-120 gal.horizontal - 260 psig | 1 |
| 6-6 | 32002529 | Beltguard - complete | 1 |
| 6-7 | 32003410 | – Back, beltguard | 1 |
| 6-8 | 32003329 | – Cover, beltguard | 1 |
| 6-9 | 32027120 | Valve, mannual drain | 1 |
| 6-10 | 32180242 | Valve, ball - 1' M/F (Service valve) | 1 |
| 6-11 | 37005907 | Switch, pressure - nema 1 200 psig | 1 |
| 6-11 | 37005923 | Switch, pressure - nema 1 250 psig | 1 |
| 6-12 | 31385693 | Valve, safety - 200 psig (receiver ) | 1 |
| 6-12 | 32174799 | Valve, safety - 260 psig (receiver ) | 1 |
| 6-13 | 32013872 | Guard, pressure - 300 psig | 1 |
| 6-14 | 32146235 | Aftercooler, water cooled | 1 |
| 6-15 | 35229723 | Valve, automatic water | 1 |
| 6-16 | 32005282 | Trap, auto drain | 1 |
| 6-17 | 32180200 | Valve, ball - 1/4' | 1 |
| 6-18 | 32003238 | Coil, afttercooler - air cooled | 1 |
| 6-19 | 32174286 | Valve, safety - discharge - 325 psig | 1 |
| *** | 32170771 | Valve, auxiliary - constant speed control | 1 |
| *** | 32170797 | Valve, auxiliary - dual control | 1 |
| *** | 32212649 | Kit, decal | 1 |
| ** | 32178766 | Oil, XL - T30 synthetic compressor lubricant | 1 GAL. |
