Compressor Drive - Air Receiver and Accessories For Ingersoll Rand Type 30 - Model 234
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Drive - Air Receiver and Accessories For Ingersoll Rand Type 30 - Model 234 from India

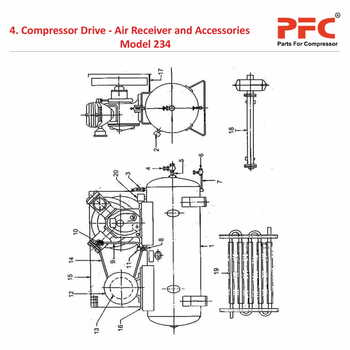

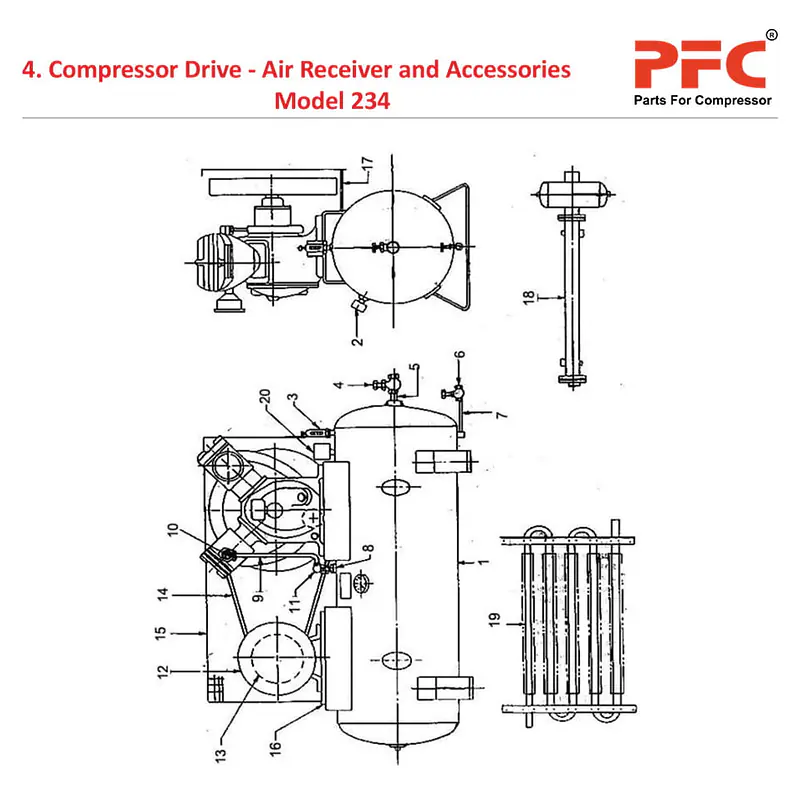

Compressor Drive, Air Receiver And Accessories
| Sr.No | Ref. Part Number | Description | Qty |
| 4-1 | 97056048 | Receiver 150 Ltr Max working PR 175 | 1 |
| 4-1 | 97056097 | Receiver 150 Ltr Max working PR 270 | 1 |
| 4-1 | 97056113 | Receiver 225 Ltr Max working PR 175 | 1 |
| 4-1 | 97056121 | Receiver 225 Ltr Max working PR 270 | 1 |
| 4-2 | 95736922 | Pressure Gauge 0 300 PSIG | 1 |
| 4-3 | 72062078 | Safety Valve | 1 |
| 4-4 | 95081048 | Service Valve - 1/2" | 1 |
| 4-5 | 95062600 | Nipple Pipe - 1/2" | 1 |
| 4-6 | 95081022 | Drain Valve - 1/4" | 1 |
| 4-7 | 95736542 | Nipple Pipe - 1/4" | 1 |
| 4-8 | 37047773 | Check Valve | 1 |
| 4-9 | 97045389 | Pipe Discharge 1/2 X 15 1/2" | 1 |
| 4-10 | 95227260 | Nut Connector | 2 |
| 4-11 | 95040184 | Elbow Tube | 2 |
| 4-12 | ------ | Motor Electric | 1 |
| 4-13 | 97043293RB | Motor Pulley 660 RPM | 1 |
| 4-13 | 97043749RB | Motor Pulley 960 RPM | 1 |
| 4-14 | 92396233 | V' Belt for 660 RPM | 2 |
| 4-14 | 97044218 | V' Belt for 960 RPM | 2 |
| 4-15 | 97044549 | Belt Guard | 1 |
| 4-16 | 97044101 | Slide Rail 12" | 2 |
| 4-17 | 97042295 | Distance Piece Belt Guard | 2 |
| Optional Equipment | |||
| 4-18 | 97045595 | Watercooled Aftercooler | 1 |
| 4-18 | 97045603 | Watercooled Aftercooler with Moisture | 1 |
| Seperator | |||
| 4-19 | RIN300534 | Aircooled Aftercooler | 1 |
| 4-20 | 156A12XPS15B | Super Pressure Switch 100-213P | 1 |
| 4-20 | IPS400 | Pressure Switch H.P | 1 |
| REF | 48XXA1AL | Aux Valve For C.S.C | 1 |
| REF | 30673347 | Spring Aux Valve | 1 |
| REF | WIN300579T2 | Bolt Foundation 1/2" | 4 |
