Compressor Drive and Accessories IR 242 Parts
Regular price
₹0.00
Compressor Drive and Accessories IR 242 Parts
Regular price
₹0.00
DESCRIPTION
Compressor Drive and Accessories for Ingersoll Rand Type 30 Model 242
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Drive and Accessories for Ingersoll Rand Type 30 Model 242 from India

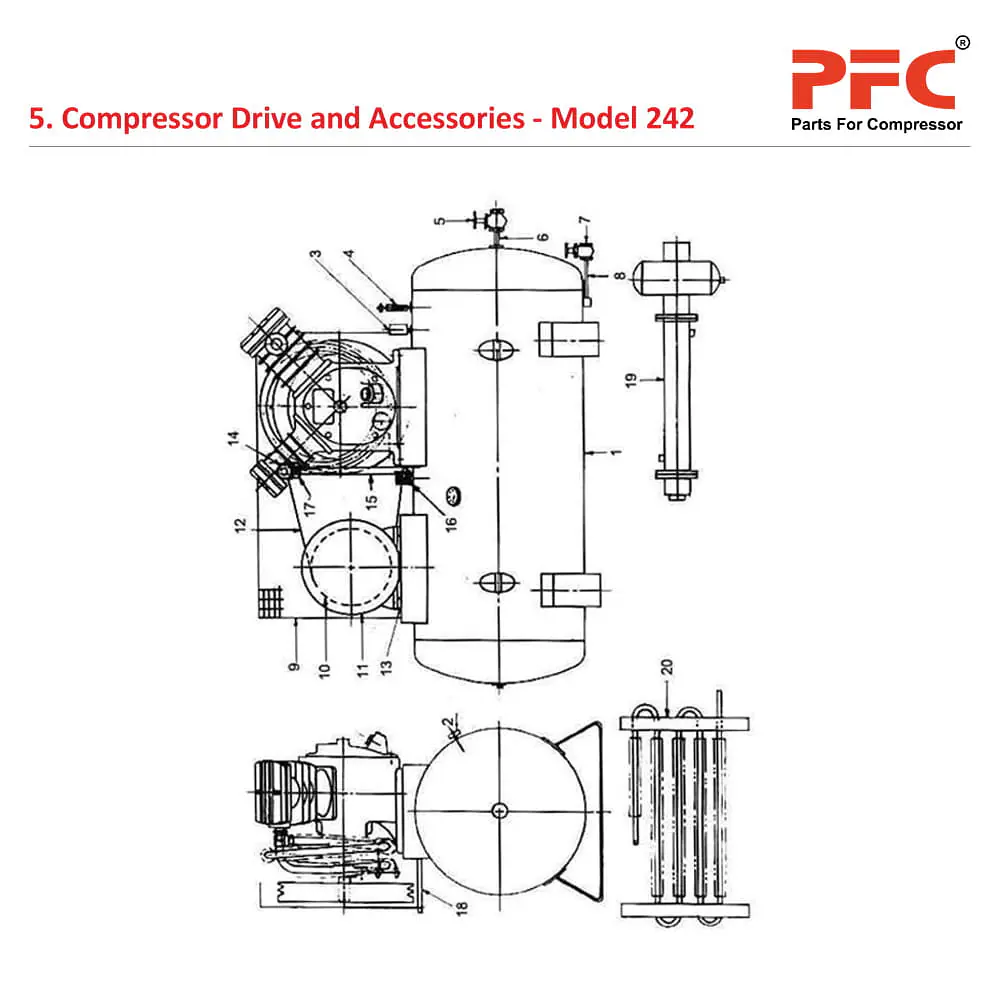

Compressor Drive and Accessories
| Sr.No | Ref. Part Number | Description | Qty |
| 5-1 | 94464120 | Air Receiver 175 Ltr.Max W.PR.175 | 1 |
| 5-1 | 94464161 | Air Receiver 175 Ltr.Max W.PR. 270 | 1 |
| 5-1 | 97056113 | Air Receiver 225 Ltr.Max W.PR. 175 | 1 |
| 5-1 | 97056121 | Air Receiver 225 Ltr.Max W.PR. 270 | 1 |
| 5-2 | 95736922 | Pressure Gauge 0-300 PSIG | 1 |
| 5-3 | 94465176 | PR. Switch Up To 135 PSIG | 1 |
| 5-3 | 94465184 | PR. Switch Above 135 PSIG | 1 |
| 5-4 | 72062078 | Safety Valve | 1 |
| 5-5 | 95081048 | Service Valve 1/2" | 1 |
| 5-6 | 95062600 | Nipple Pipe 1/2" | 1 |
| 5-7 | 95081022 | Drain Valve 1/4" | 1 |
| 5-8 | 95736542 | Nipple Pipe 1/4" | 1 |
| 5-9 | 97044556 | Belt Guard | 1 |
| 5-10 | 97043590 | Motor Pulley For 866 RPM | 1 |
| 5-10 | 97043608 | Motor Pulley For 855 RPM | 1 |
| 5-10 | 97043772 | Motor Pulley For 960 RPM | 1 |
| 5-10 | 97054779 | Motor Pulley For 960 RPM | 1 |
| 5-11 | 97055800 | Motor Elec.5 HP | 1 |
| 5-11 | 97051742 | Motor Elec.7.5 HP | 2 |
| 5-12 | 97044283 | "V" Belts A76 | 2 |
| 5-12 | 97044283 | "V" Belts A78 | 2 |
| 5-13 | 97044127 | Slide Rail 14 Inch | 2 |
| 5-14 | 95031761 | Elbow Tube | 2 |
| 5-15 | 97045454 | Pipe Discharge | 1 |
| 5-16 | 37047773 | Check Valve | 1 |
| 5-17 | 95108577 | Nut Connector | 2 |
| 5-18 | 97043329 | Distance Piece Belt Guard | 2 |
| Optional Equipment | |||
| 5-19 | 97045546 | Water Cooled After Cooler With M.S. | 1 |
| 5-20 | 97045645 | Air Cooled After Cooler | 1 |
| 5-15 | 97045454 | Pipe Discharge | 1 |
| 5-16 | 37047773 | Check Valve | 1 |
| 5-17 | 95108577 | Nut Connector | 2 |
| 5-18 | 97043329 | Distance Piece Belt Guard | 2 |
| Optional Equipment | |||
| 5-19 | 97045546 | Water Cooled After Cooler With M.S. | 1 |
| 5-20 | 97045645 | Air Cooled After Cooler | 1 |
