Compressor Drive And Accessories IR 7T2 Parts
Regular price
₹0.00
Compressor Drive And Accessories IR 7T2 Parts
Regular price
₹0.00
DESCRIPTION
Compressor Drive And Accessories For Ingersoll Rand Type 30 - Model 7T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Drive And Accessories For Ingersoll Rand Type 30 - Model 7T2 from India.

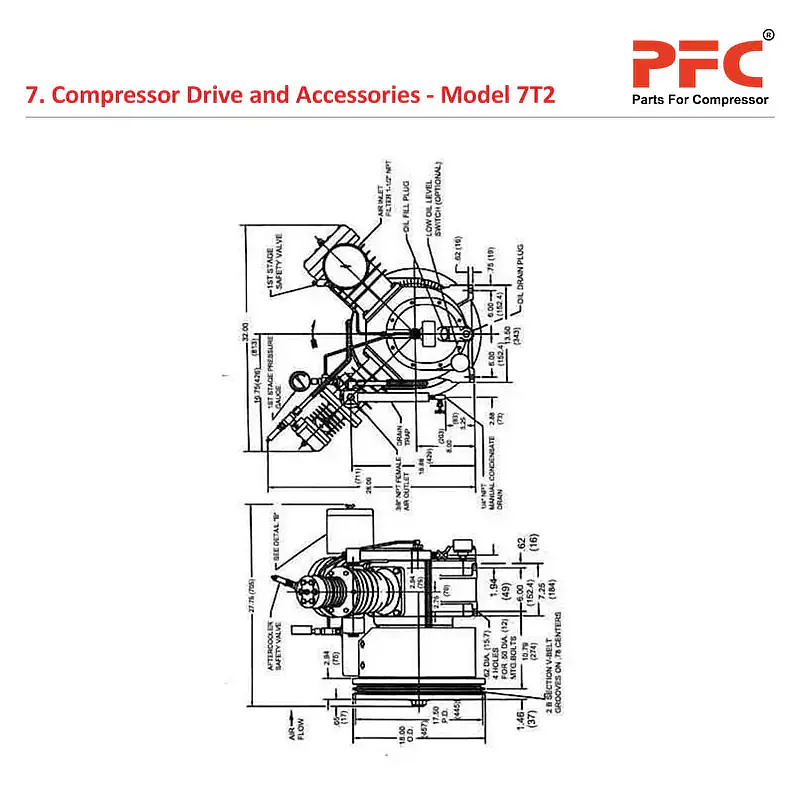

Compressor Drive And Accessories
| Sr.No | Ref. Part Number | Description | Qty |
| 8-01 | 97043897 | Compressor Bare Local | 1 |
| 8-02 | 97044762 | Base Plate | 1 |
| 8-02A | 97044952 | Base Plate for Engine Drive | 1 |
| 8-03 | 94465101 | Belt V B-95 | 2 |
| 8-03 | 97044457 | Belt V B-96 | 2 |
| 8-03 | 94469509 | Belt V B-100 | 2 |
| 8-04 | 90235458 | Belt V B-98 | 2 |
| 8-04 | 97043228 | Pulley Motor 61116 B 0238 | 1 |
| 8-04 | 97055156 | Pulley Motor 10 B 0238 | 1 |
| 8-04 | 97056311 | Pulley Motor 800 RPM | 1 |
| 8-05 | 70234067 | Guard Belt | 1 |
| 8-06 | 97042337 | Distance Piece Belt Guard 1/2 X 12.5 | 2 |
| 8-07 | 97044127 | Slide Rail 14" | 1 |
| 8-07A | 97044143 | Slide Rail 18" | 1 |
| 8-08 | 97044069 | Switch Press 10-40 Bar 1/4" NPT | 1 |
| Optional Equipments | |||
| 8-11A | 97051742 | Motor Electric 7.5 H.P. Any Make TECF | 1 |
| 8-11B | 97056501 | Motor Electric 10 H.P. Any Make TECF | 1 |
| 8-11C | 97056501 | Motor Electric 12.5 H.P. Any Make TECF | 1 |
| 8-12A | 97056659 | Starter 7.5 H.P. D.O.L Any Make | 1 |
| 8-12B | 97056519 | Starter 10 H.P. D.O.L Any Make | 1 |
| 8-12C | 97054423 | Starter 12.5 H.P. D.O.L Any Make | 1 |
| 8-20 | 94465309 | Aftercooler Air Cooled Assembly | 1 |
| 8-21 | 97045769 | Tube Copper 1" X 7/8" | 3FT |
| 8-22 | 95229175 | Nut Connector 1" NPT | 2 |
| 8-23 | 95229183 | Elbow Tube 1" OD * 1" Npt Male | 2 |
| 8-31A | 97053516 | Diesel Engine 'Taf2' 12 HP Kirloskar | 1 |
| 8-31B | 97053524 | Diesel Engine 'Ta2' 12 HP | 1 |
| 8-31C | 97053532 | Diesel Engine 'Ta2' 12 Electric Start | 1 |
| 8-32 | 94465077 | Auxiliary Valve 301-600 PSIG | 1 |
| 8-32 | 94465085 | Auxiliary Valve 201-300 PSIG | 1 |
| 8-35 | 94496403 | Check Valve 3/4" -1000 PSIG | 1 |
