DESCRIPTION
Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 15T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 15T2 from India.

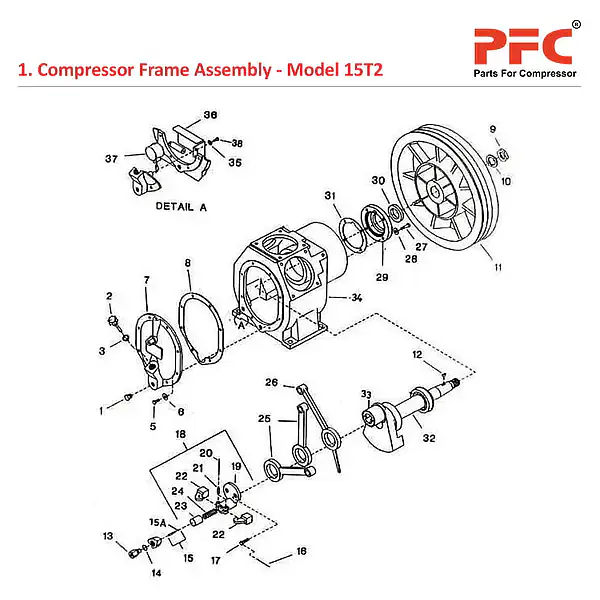

Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 2-1 | 95344651 | Plug Pipe Hex Head 1/2" | 1 |
| 2-2 | 30289003 | Plug Oil Filler - Complete | 1 |
| 2-3 | 95018149 | – O Ring | 1 |
| 2-5 | 95035333 | Capscrew Hex 3/8" X 1" | 8 |
| 2-6 | 95674677 | Gasket - Copper Washer | 8 |
| 2-7 | 37128089 | Cover, Frame End | 1 |
| 2-8 | 30439285 | Gasket, Frame End Cover | 1 |
| 2-9 | 30287668 | Nut - Hex 1-3/8 UNF | 1 |
| 2-10 | 95265690 | Lockwasher, Spring 1-3/8 | 1 |
| 2-11 | 32177180 | Wheel, V-Belt | 1 |
| 2-12 | 95083721 | Key, Woodruff | 1 |
| 2-13 | 37113701 | Valve, Pilot | 1 |
| 2-14 | 30346597 | Washer, Copper | 1 |
| 2-15 | 32218406 | Pin Assly., Thrust | 1 |
| 2-15A | 95022695 | O Ring | 1 |
| 2-16 | 32061293 | Lockwire, 20 GAX5" | 1 |
| 2-17 | 95101929 | Capscrew Hex-3/8-16X1" | 2 |
| 2-18 | 30210272 | Cap Assembly, Crankpin | 1 |
| 2-19 | 30210322 | – Body, Crankpin | 1 |
| 2-20 | 90799271 | – Lockwire 18 GAX5" | 1 |
| 2-21 | 30214951 | – Pin Centrifugal Unloader Weight | 2 |
| 2-22 | 30220875 | – Weight, Centri-fugal Unloader | 2 |
| 2-23 | 30285688 | – Plunger, Centri-fugal Unloader | 1 |
| 2-24 | 30815898 | – Spring, Centri-fugal Unloader | 1 |
| 2-25 | 32003659 | Rod, Connecting | 2 |
| 2-26 | 32003642 | Rod, Connecting | 1 |
| 2-27 | 95035333 | Capscrew Hex 3/8 x 1" | 4 |
| 2-28 | 95674677 | Gasket - Copper Washer | 4 |
| 2-29 | 32301582 | Cover, Shaft End | 1 |
| 2-30 | 32204596 | Seal, Oil Viton O.D. | 1 |
| 2-31 | 30294961 | Gasket - Shaft End Cover | 1 |
| 2-32 | 70240933 | Crankshaft Assembly with Bearing+Key+Nut | 1 |
| 2-32A | 32314379 | Crankshaft Assembly with Brg. | 1 |
| 2-33 | 32295875 | Bush Crankpin | 1 |
| 2-34 | 32270621 | Frame Compressor | 1 |
| Detail A | |||
| 2-35 | 32035479 | Washer, Spring - 1/4-20 1/2 | 2 |
| 2-36 | 32304347 | Baffle, Low Oil Level Switch | 1 |
| 2-38 | 65053070 | Capscrew Hex 1/4 - 20 X 1/2 | 1 |
| Optional Equipment | |||
| 2-37 | 70235262 | Switch Low Oil Level | 1 |
| 2-38 | 95200333 | Plug, Pipe Hex Head 3/4 NPT | 1 |
