DESCRIPTION
Compressor Frame Assembly For Ingersoll Rand Type 30 Model 231
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 Model 231 from India.
Product
- Page 1

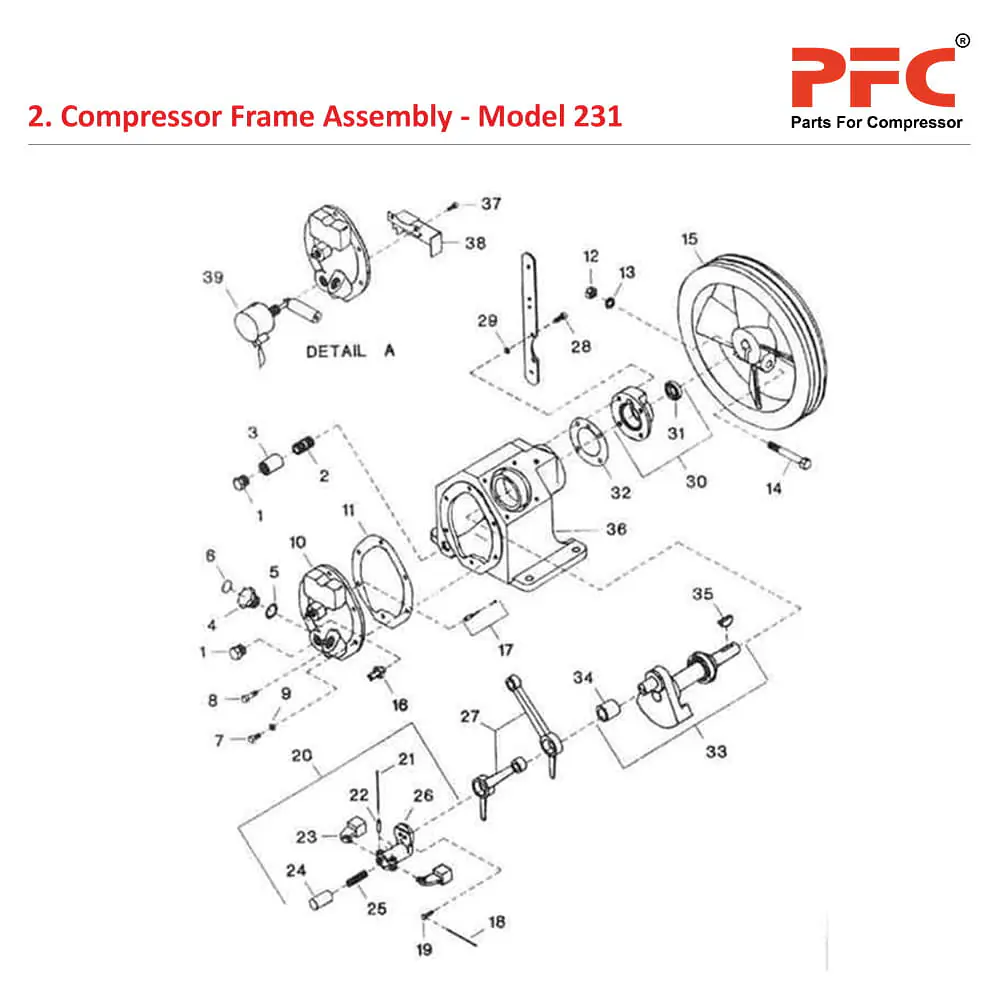

2.1 Compressor Frame Assembly
Sr.No | Ref. Part Number | Description |
2-1 | 95344651 | Plug. Pipe Hex Head |
2-2 | 95640009 | Nipple, Long |
2-3 | 32179061 | Coupling, Pipe -1/2" |
2-4 | 30216055 | Plug, Oil Filler - Complete |
2-5 | 95018149 | * O-Ring |
2-6 | 32000655 | Decal, Hand Tighten |
2-7 | 95227302 | Capscrew-Hex Head |
2-8 | 95079976 | Capscrew-Hex Head |
2-9 | 95674651 | Gasket-Copper Washer |
2-10 | 37127107 | Cover, Frame End |
2-11 | 30299226 | Gasket, Frame End Cover |
2-12 | 95077798 | Nut-Hex |
2-13 | 95716890 | Lockwasher, Spring |
2-14 | 95053682 | Capscrew-Hex |
2-15 | 30212906 | Wheel, V-Belt |
2-16 | 37007689 | Valve, Pilot |
2-17 | 37002417 | Pin Thrust Assembly |
2-18 | 90799289 | Lockwire |
2-19 | 95044111 | Capscrew-Hex Head |
2-20 | 30210264 | Cap Crankpin Assembly |
2-21 | 32006587 | * Lockwire |
2-22 | 30215008 | * Pin, Centrifugal Unloader |
2-23 | 30221725 | * Weight, Centrifugal Unloader |
2-24 | 30216118 | * Plunger, Centrifugal Unloader |
2-25 | 30416978 | * Spring, Centrifugal Unloader |
2-26 | 30210454 | * Body, Crankpin Cap |
2-27 | 32004145 | Rod, Connecting |
2-28 | 95227302 | Capscrew-Hex Head |
2-29 | 95674651 | Gasket-Copper Washer |
2-30 | 32027914 | Cover Shaft End Assembly |
2-31 | 32204521 | * Seal, Oil |
2-32 | 30295034 | Gasket, Shaft End Cover |
2-33 | 30211577 | Crankshaft - Complete |
2-34 | 30289813 | * Bushing, Crankpin |
2-35 | 95433173 | * Key, Woodruff |
2-36 | 30222327 | Frame, Compressor |
Optional Items Detail A | ||
6-38 | 30285605 | Baffle, Low Oil Level Switch |
6-39 | 32201527 | Switch Low Oil Level |
