DESCRIPTION
Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 234
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 234 from India

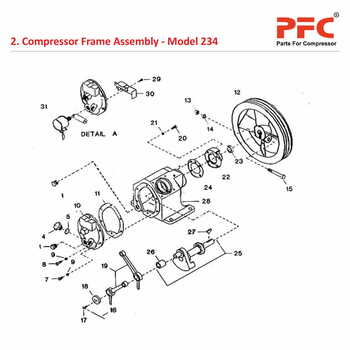

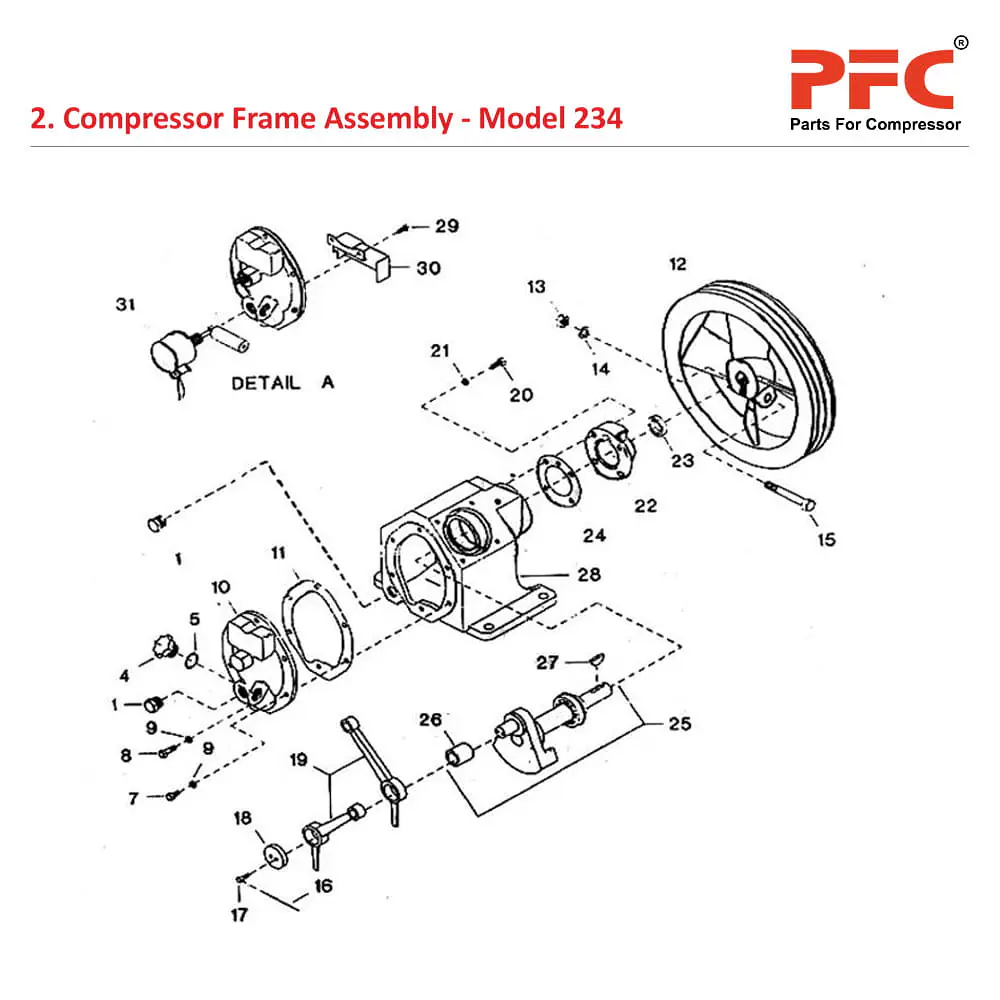

Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 2-1 | 95344651 | Plug Pipe Hex Head 1/2" | 2 |
| 2-4 | 37127065 | Plug Oil Filler | 1 |
| 2-5 | 95022158 | – O Ring | 1 |
| 2-7 | 95227302 | Capscrew Hex | 5 |
| 2-8 | 95079984 | Capscrew Hex | 1 |
| 2-9 | 95674651 | Gasket - Copper Washer | 6 |
| 2-10 | 37127123 | Cover, frame end | 1 |
| 2-11 | 30299226 | Gasket, frame end cover | 1 |
| 2-12 | 30212906 | Wheel, V-Belt | 1 |
| 2-13 | 95077798 | – Nut - Hex | 1 |
| 2-14 | 95716890 | Lockwasher, spring | 1 |
| 2-15 | 95053682 | Capscrew Hex | 1 |
| 2-16 | 90799289 | Lockwire | 1 |
| 2-17 | 95044111 | – Capscrew Hex | 2 |
| 2-18 | 30210314 | Cap, crankpin | 1 |
| 2-19 | 32004145 | Rod, Connecting | 2 |
| 2-20 | 95227302 | Capscrew Hex | 4 |
| 2-21 | 95674651 | Gasket-cooper washer | 4 |
| 2-22 | 37127032 | Cover, Shaft End | 1 |
| 2-23 | 32204521 | Seal, Oil | 1 |
| 2-24 | 30295034 | Gasket, shaft end cover | 1 |
| 2-25 | 30211577 | Crankshaft complete | 1 |
| 2-26 | 30289813 | – Bushing, crankpin | 1 |
| 2-27 | 95433173 | – Key, woodruff | 1 |
| 2-28 | 30222327 | Frame Compressor | 1 |
| Optional - Detail - 'A' | |||
| 2-29 | 95311650 | Capscrew Hex | 2 |
| 2-30 | 30285605 | Baffle, Low Oil Level Switch | 1 |
| 2-31 | 37046448 | Switch, low Oil level | 1 |
