Compressor Frame IR 2340 Air Compressor Parts
Regular price
₹0.00
Compressor Frame IR 2340 Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 2340
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 2340 from India.

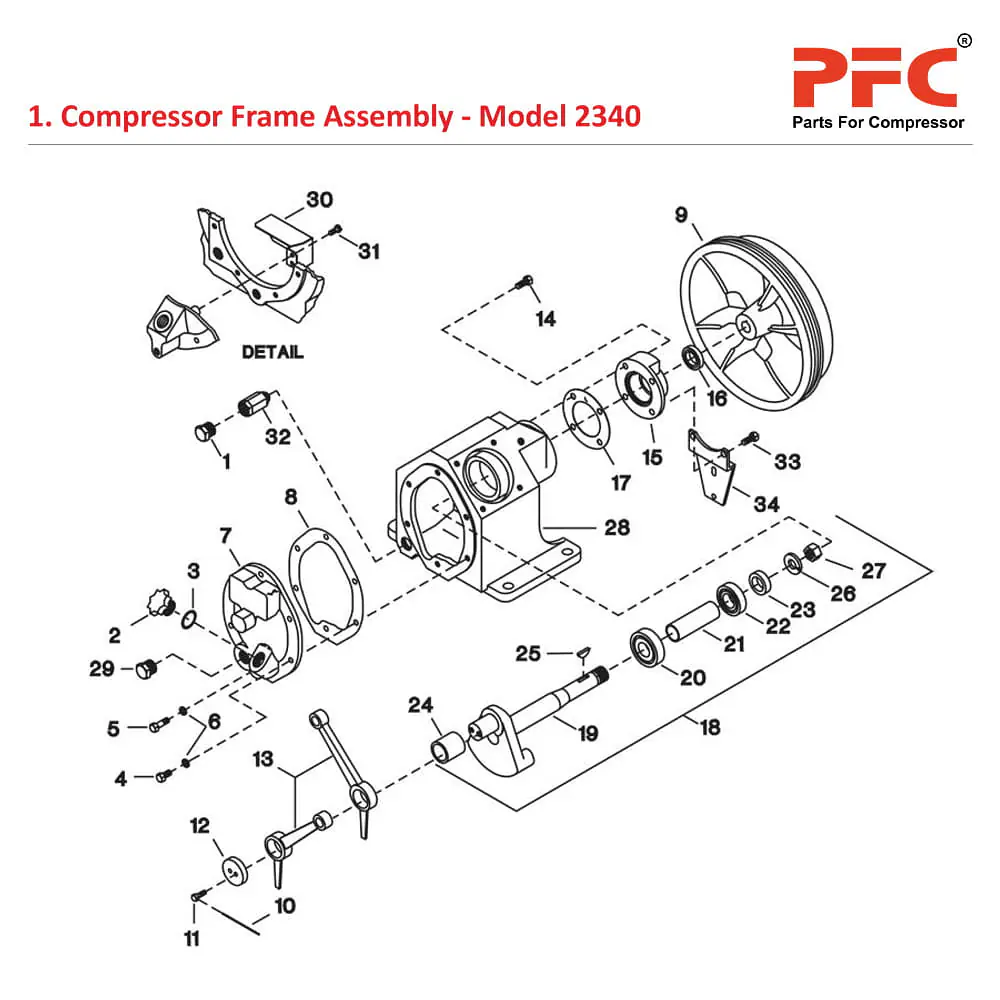

Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 1-1 | 95033601 | Plug, Pipe - Hex Head -3/8" | 1 |
| 1-2 | 37127065 | Plug, Oil Filler | 1 |
| 1-3 | 95022158 | O-Ring | 1 |
| 1-4 | 95105243 | Capscrew, Hex Head - 5/16-18X7/8" | 5 |
| 1-5 | 95002978 | Capscrew, Hex Head - 5/16-18X1-1/4" | 1 |
| 1-6 | 95674651 | Gasket, Copper Washer | 6 |
| 1-7 | 37127123 | Cover, Frame End | 1 |
| 1-8 | 32293680 | Gasket, Frame End Cover | 1 |
| 1-9 | 32498974 | Beltwheel(Clockwise Rotation When Facing Unit) | 1 |
| 1-9 | 32293698 | Beltwheel(Counter-Clockwise Rotation When Facing Unit) | 1 |
| 1-10 | 90799289 | Lockwire, 12 GA-5" | 1 |
| 1-11 | 30278709 | Capscrew, Lock-1/4-20X3/4" | 2 |
| 1-12 | 30210314 | Cap, Crankpin | 1 |
| 1-13 | 32004145 | Rod, Connecting | 2 |
| 1-14 | 95105243 | Capscrew, Hex-5/16-18X7/8" | 2 |
| 1-15 | 37127032 | Cover, Shaft End | 1 |
| 1-16 | 32204521 | Seal, Oil | 1 |
| 1-17 | 32293672 | Gasket, Shaft End Cover | 1 |
| 1-18 | 32496549 | Crankshaft, Complete | 1 |
| 1-19 | 32293821 | – Assy, Disc/Shaft | 1 |
| 1-20 | 95930400 | – Bearing, Ball | 1 |
| 1-21 | 37127016 | – Spacer, Crankshaft Bearing | 1 |
| 1-22 | 95951216 | – Bearing, Ball - W/Snap Ring | 1 |
| 1-23 | 37127024 | – Ring, Bearing Retainer | 1 |
| 1-24 | 30289813 | – Bushing, Crankpin | 1 |
| 1-25 | 95433173 | – Key, Woodruff | 1 |
| 1-26 | 95081790 | – Lockwasher - 5/8" | 1 |
| 1-27 | 95076808 | – Nut, Hex -5/8-18 | 1 |
| 1-28 | 30222327 | Frame, Compressor | 1 |
| 1-29 | 95200333 | Plug, Pipe - Hex Head -3/4" | 1 |
| 1-30 | 32270639 | Baffle, Oil Level (See Note) | 1 |
| 1-31 | 95053070 | Capscrew, Hex -1/4-20 X 1/2" (See Note) | 2 |
| 1-32 | 70235049 | Adapter, Drain Extension (See Note) | 1 |
| 1-33 | 95105243 | Capscrew, Hex - 5/16 -18 X 7/8" (See Note) | 2 |
| 1-34 | 97331011 | Bracket, Intercooler Clamp | 1 |
