DESCRIPTION
Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 242
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 242 from India

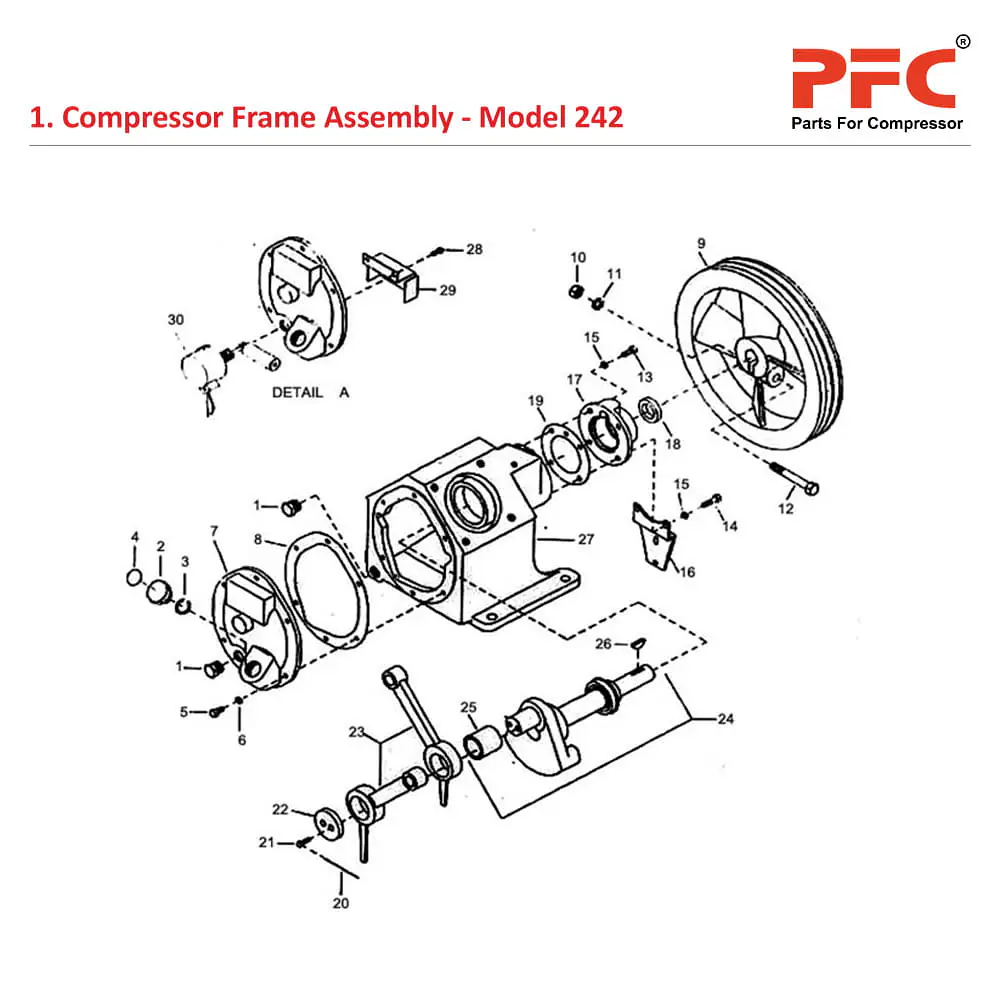

Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 1-1 | 95344651 | Plug, Pipe-Hex Head 1/2" | 2 |
| 1-2 | 30216055 | Plug, Oil Filler-Complete | 1 |
| 1-3 | 95022158 | – O Ring | 1 |
| 1-4 | 32000655 | Decal, Hand Tighten | 1 |
| 1-5 | 95227302 | Capscrew - Hex Head | 6 |
| 1-6 | 95043238 | Gasket - Copper Washer | 6 |
| 1-7 | 37127800 | Cover Frame End | 1 |
| 1-8 | 30439319 | Gasket, Frame End Cover | 1 |
| 1-9 | 32145146 | Wheel, "V"- Belt | 1 |
| 1-10 | 95077798 | – Nut-Hex | 1 |
| 1-11 | 85716890 | – Lockwasher, Spring-1/2" | 1 |
| 1-12 | 95053682 | – Capscrew - Hex Head | 1 |
| 1-13 | 95227302 | – Capscrew - Hex Head | 2 |
| 1-14 | 95079984 | – Capscrew - Hex Head | 2 |
| 1-15 | 95674651 | Gasket - Copper Washer | 4 |
| 1-16 | 32157349 | Bracket, Intercooler Clamp | 1 |
| 1-17 | 37127677 | Cover, Shaft End | 1 |
| 1-18 | 32204539 | Seal, Oil | 1 |
| 1-19 | 30294995 | Gasket, Shaft End Cover | 1 |
| 1-20 | 90799289 | Lockwire, 12 GA X 5" | 1 |
| 1-21 | 30278667 | – Capscrew - Hex Head | 2 |
| 1-22 | 30210298 | Cap, Crankpin | 1 |
| 1-23 | 32004152 | Rod, Connecting | 2 |
| 1-24 | 32146052 | Crankshaft - Complete | 1 |
| 1-25 | 30210199 | – Bushing, Crankpin | 1 |
| 1-26 | 95433173 | – Key, Woodruff | 1 |
| 1-27 | 32012932 | Crankcase | 1 |
| Optional Equipment Detail A | |||
| 1-28 | 95311650 | – Capscrew - Hex Head | 2 |
| 1-29 | 30285597 | Baffle, Low Oil Level Switch | 1 |
| 1-30 | 32201527 | Switch, Low Oil Level | 1 |
