Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 5T2NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 5T2NL from India.

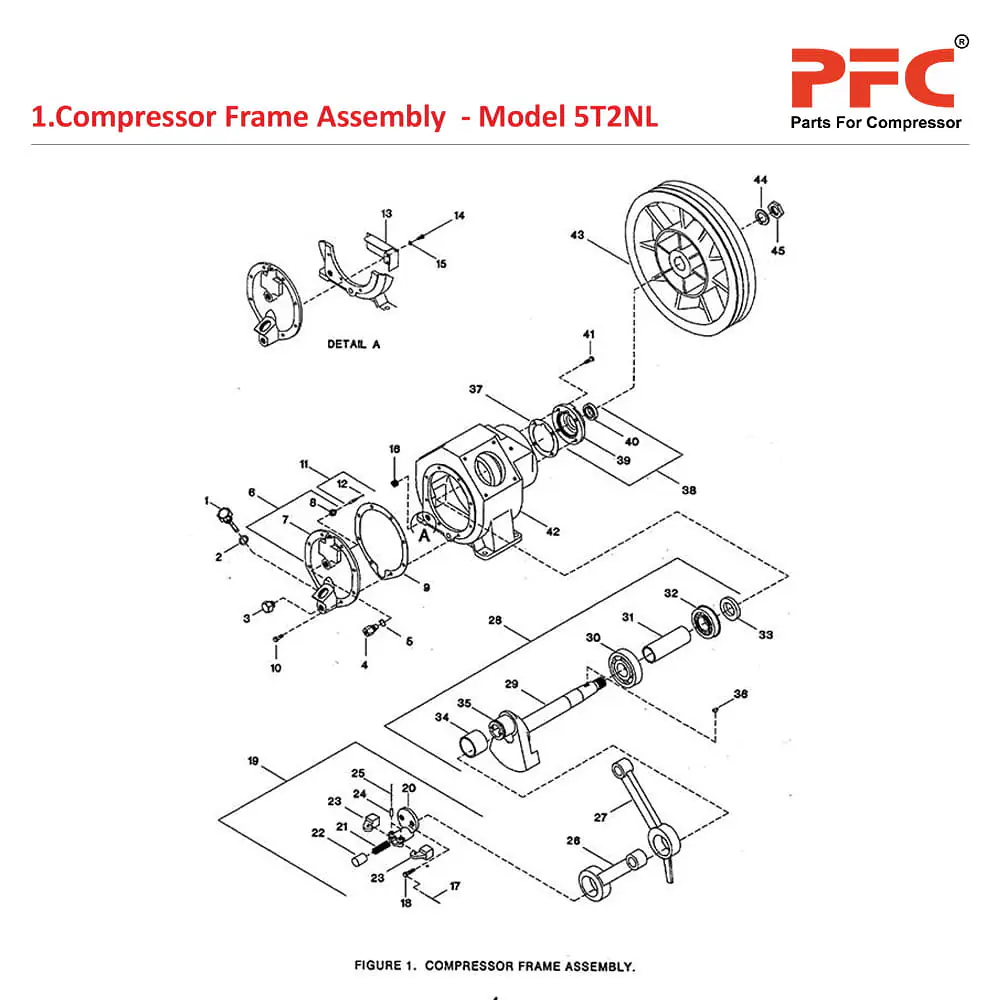

Compressor Frame Assembly
| REF. NBR. | PART NO. | DESCRIPTION | UNITS PER ASSY. |
| 1-1 | 32222275 | Plug, Oil Gauge | 1 |
| 1-2 | 32225476 | O-Ring, Oil Gauge | 1 |
| 1-3 | 95033445 | Plug, Pipe - Hex Head - 1/2" | 1 |
| 1-4 | 32250144 | Assembly, Pilot Valve | 1 |
| 1-5 | 32225500 | Washer, Copper - Pilot Valve | 1 |
| 1-6 | 32222903 | Assembly, Frame End Cover | 1 |
| 1-7 | 32222291 | – Cover, Frame End | 1 |
| 1-8 | 32222432 | – Bushing, Pilot Valve | 1 |
| 1-9 | 30294979 | Gasket, Frame End Cover | 1 |
| 1-10 | 32225187 | Capscrew - M10 X 25 | 8 |
| 1-11 | 32255127 | Assembly, Thrust Pin | 1 |
| 1-12 | 32225492 | – O-Ring, Thrust Pin | 1 |
| 1-13 | 30285548 | Baffle, Low Oil Level Switch | 1 |
| 1-14 | 32225203 | Capscrew - M6 X 10 | 2 |
| 1-15 | 32225302 | Washer, Lock - 6mm | 2 |
| 1-16 | 32179020 | Plug, Pipe - Countersunk Hex Head | 1 |
| 1-17 | 37605193 | Lockwire - 12ga | 5" |
| 1-18 | 32225179 | Capscrew - M10 X 20 | 2 |
| 1-19 | 32222812 | Assembly, Crankpin Cap | 1 |
| 1-20 | 32222457 | – Body, Crankpin Cap | 1 |
| 1-21 | 30815898 | – Spring, Centrifugal Unloader | 1 |
| 1-22 | 32222440 | – Plunger, Centrifugal Unloader | 1 |
| 1-23 | 30220875 | – Weight, Centrifugal Unloader | 2 |
| 1-24 | 30214951 | – Pin, Centrifugal Unloader Weight | 2 |
| 1-25 | 37605185 | – Lockwire - 12ga | 5" |
| 1-26 | 32222382 | Rod, Connecting - Low Pressure | 1 |
| 1-27 | 32222267 | Rod, Connecting - High Pressure | 1 |
| 1-28 | 32222671 | Assembly, Crankshaft | 1 |
| 1-29 | NSS | – Assembly, Disc & Shaft | 1 |
| 1-30 | 95214342 | – Bearing, Ball | 1 |
| 1-31 | 37127933 | – Spacer, Crankshaft/Bearing | 1 |
| 1-32 | 95213948 | – Bearing, Ball - W/Snap Ring | 1 |
| 1-33 | 30217012 | – Ring, Bearing Retainer | 1 |
| 1-34 | 37002367 | – Bushing, Crankpin | 1 |
| 1-35 | 32185803 | Loctite 609 - Tube- For Crankpin Bushing Assembly | .5 MIL |
| 1-36 | 32226144 | Key, Woodruff | 1 |
| 1-37 | 30295059 | Gasket, Shaft End Cover | 1 |
| 1-38 | 32222556 | Assembly, Shaft End Cover | 1 |
| 1-39 | NSS | – Cover, Shaft End | 1 |
| 1-40 | 32204547 | – Seal, Oil | 1 |
| 1-41 | 32225187 | Capscrew - M10 X 25 | 4 |
| 1-42 | 32222317 | Frame, Compressor | 1 |
| 1-43 | 32222655 | Wheel, V-Belt | 1 |
| 1-44 | 32225351 | Washer, Lock - Beltwheel | 1 |
| 1-45 | 32225344 | Nut - Beltwheel | 1 |
