DESCRIPTION
Compressor Frame Assembly for Model 7T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly Ingersoll Rand Type 30 Model 7T2 from India.
Product
- Page 1

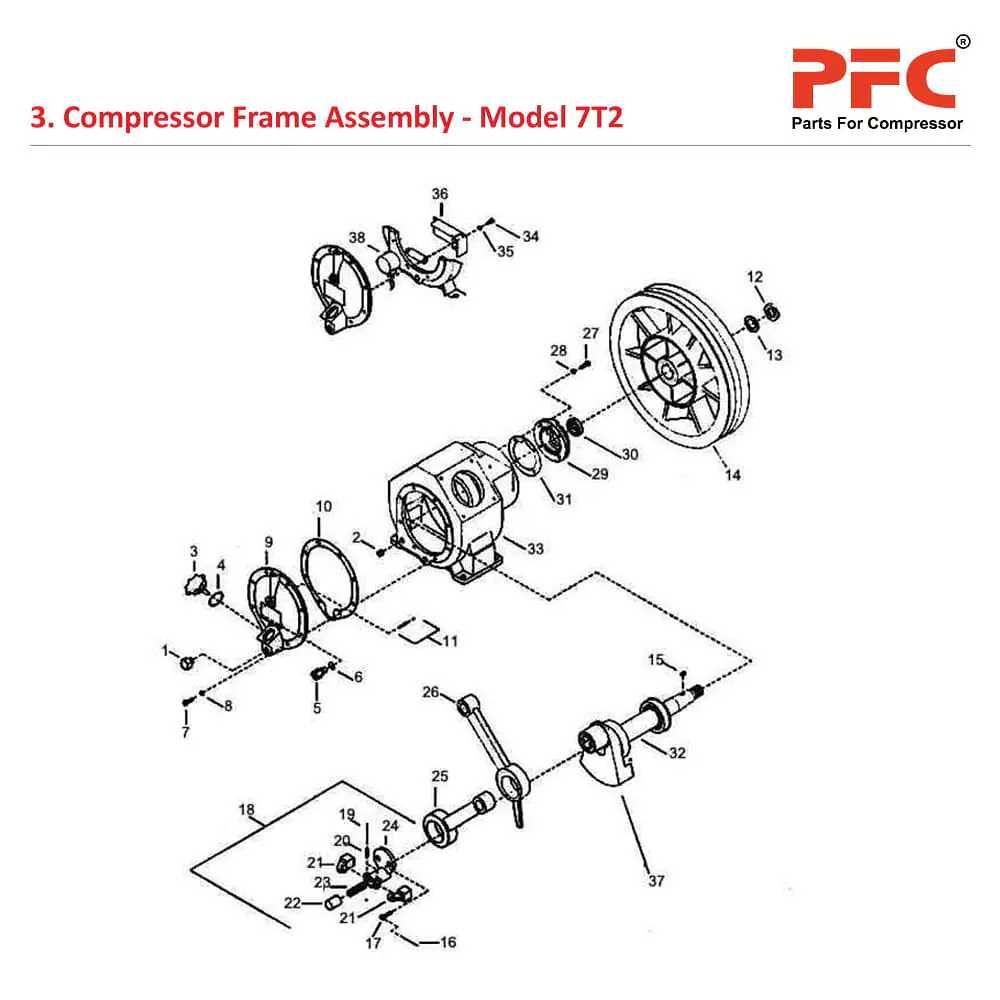

3.1 Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description |
| 3-1 | 95200333 | Plug Hex Head 3/4" NPT |
| 3-2 | 95344651 | Plug Hex Head 1/2" NPT |
| 3-3 | 37128378 | Guages Oil |
| 3-4 | 95022158 | "O" Ring 7/8 X 1-1/8 |
| 3-5 | 37113701 | Valve Pilot |
| 3-6 | 30346597 | Washer Copper 7/8" |
| 3-7 | 95103768 | Screw CP Hex 3/8" X 7/8" |
| 3-8 | 95674677 | Washer Copper 3/8" |
| 3-9 | 31246572 | Cover Assembly Frame End |
| 3-10 | 30439277 | Gasket Cover Crank Case |
| 3-11 | 32218406 | Pin Thrust Assembly |
| 3-11A | 32216426 | Pin Thrust Unloader |
| 3-11A | 95022695 | "O" Ring 1/8" X 1/4" X 1/6" Viton |
| 3-12 | 30835698 | Nut Hex Belt Wheel |
| 3-13 | 95064747 | Washer Spring 1-1/8" |
| 3-14 | 32177206 | Wheel Belt |
| 3-14A | 94465168 | Wheel Belt Rev. Rotation-Eng. Drv. |
| 3-15 | 95047437 | Key Woodruf |
| 3-16 | 90799289 | Wire, Locking #20 Guage 5" Long |
| 3-17 | 95035341 | Screw Cap Hex 3/8" X 1" Drilled HT |
| 3-18 | 30210272 | Cap Crank Pin Assembly |
| 3-19 | 90799271 | Wire Locking #18 Guage's 5" Long |
| 3-20 | 30214951 | Pin Unloader Weight |
| 3-21 | 30220875 | Unloader Weight |
| 3-22 | 30285688 | Plunger Unloader - Centrifugal |
| 3-23 | 30815898 | Spring Unloader Plunger "PP566" |
| 3-24 | 30210322 | Cap Crank Pin |
| 3-25 | 32003659 | Rod Connecting L.P. |
| 3-26 | 30217327 | Rod Connecting H.P. |
| 3-27 | 95103768 | Screw Cap Hex 3/8" X 7/8" |
| 3-28 | 95674677 | Washer Copper 3/8" |
| 3-29 | 32301566 | Cover Shaft End |
| 3-30 | 32204588 | Seal Oil Viton - Double LIP |
| 3-31 | 30295166 | Gasket Cover Shaft End |
| 3-32 | 70240916 | Crank Shaft Assembly + Brg. + Nut + Key |
| 3-33 | 32270571 | Crankcase |
| 3-34 | 95053070 | Screw Cap Hex Head 1/4" X 1/2" |
| 3-35 | 32035476 | Washer Spring 1/4" |
| 3-36 | 32275620 | Baffle Series |
| 3-37 | 32295883 | Bushing Crankpin |
| 3-38 | 70235262 | Switch Low Oil 3/4" Local |
