DESCRIPTION
Compressor Pump Assembly For Ingersoll Rand Type 30 - Model 2545
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Pump Assembly For Ingersoll Rand Type 30 - Model 2545 from India.

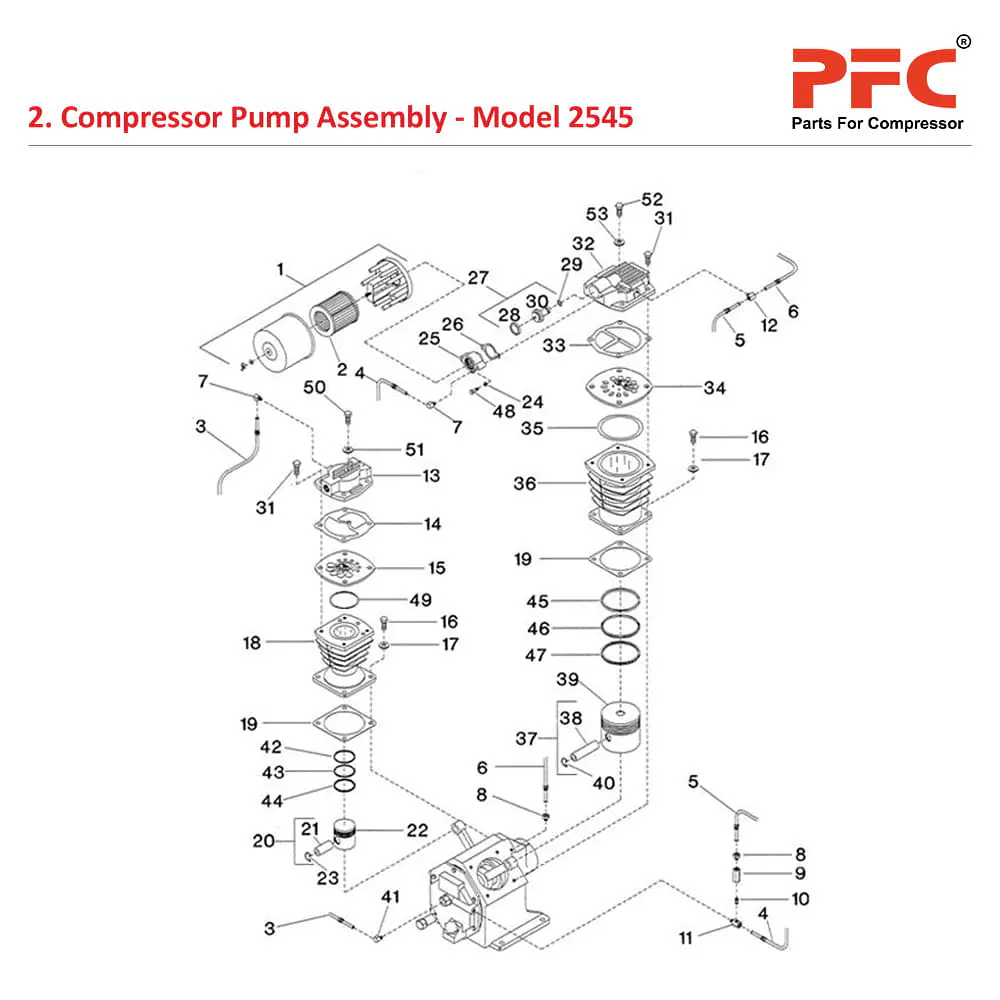

Compressor Pump Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 2-1 | 32230542 | Filter, Air Inlet - Complete | 1 |
| 2-2 | 32012957 | – Element, Filter - 10 Micron | 1 |
| 2-3 | 32293953 | Assembly, Tube -Pilot Valve/High Pressure Head | 1 |
| 2-4 | 32201444 | Assembly, Tube -Frame End Cover Tee/Inlet | 1 |
| 2-5 | 32293961 | Assembly, Tube -Fec Check Valve/Low Pressure Head | 1 |
| 2-6 | 32293946 | Assembly, Tube -Breather | 1 |
| 2-7 | 95031860 | Elbow, Tube - 5/16 X 1/8" | 2 |
| 2-8 | 95082483 | Connector, Tube - 5/16 X 1/8" | 2 |
| 2-9 | 32001141 | Valve, Check | 1 |
| 2-10 | 95796017 | Nipple, Close - 1/8" X 3/4" | 1 |
| 2-11 | 32203242 | Connector, Male -5/16 X 1/4" | 1 |
| 2-12 | 95007522 | Tee, Male Branch - 5/16 X 1/8" | 1 |
| 2-13 | 32294084 | Head, High Pressure | 1 |
| 2-14 | 32294043 | Gasket, Head - High Pressure | 1 |
| 2-15 | 32293904 | Assembly, Valve Plate - High Pressure (Fig. 4) | 1 |
| 2-16 | 95053567 | Capscrew, Hex - 1/2-13 X 1-1/4" | 8 |
| 2-17 | 95674701 | Gasket, Copper Washer - 1/2" | 8 |
| 2-18 | 32295248 | Cylinder -2-3/4"- 2nd Stage | 1 |
| 2-19 | 32294019 | Gasket, Flange | 2 |
| 2-20 | 32496614 | Complete, Piston/Pin - High Pressure | 1 |
| 2-21 | 32182818 | – Pin, Piston | 1 |
| 2-22 | NSS | – Piston - 2-3/4" | 1 |
| 2-23 | 30287791 | – Ring/Lock | 2 |
| 2-24 | 95043188 | Lockwasher, Spring - 5/16" | 2 |
| 2-25 | 32230633 | Cover, Unloader | 1 |
| 2-26 | 32182826 | Gasket, Unloader Cover | 1 |
| 2-27 | 32256265 | Assembly, Piston Unloader | 1 |
| 2-28 | 32254740 | – Seal, Unloader Piston | 1 |
| 2-29 | 32188385 | – O-Ring, Unloader Piston | 1 |
| 2-30 | NSS | – Piston, Unloader | 1 |
| 2-31 | 95104188 | Capscrew, Hex - 1/2-13 X 1-3/4" | 8 |
| 2-32 | 32499899 | Head - Low Pressure | 1 |
| 2-33 | 32294050 | Gasket, Head - Low Pressure | 1 |
| 2-34 | 32293912 | Assembly, Valve Plate - Low Pressure (Fig.C) | 1 |
| 2-35 | 32294076 | O-Ring, Valve Plate | 1 |
| 2-36 | 32295271 | Cylinder -5" - 1st Stage | 1 |
| 2-37 | 32496580 | Complete, Piston/Pin - Low Pressure | 1 |
| 2-38 | 30297022 | – Pin, Piston | 1 |
| 2-39 | NSS | – Piston, Low Pressure (5") | 1 |
| 2-40 | 30287791 | – Ring,Lock | 2 |
| 2-41 | 95110441 | Elbow, 5/16 X 1/4" Tube | 1 |
| 2-42 | 32294167 | Set, High Pressure (2.75") Piston Rings | 1 |
| 2-43 | 32294175 | Ring, Scraper (2.75") | 1 |
| 2-44 | 32295792 | Ring, Oil Control (2.75") | 1 |
| 2-45 | 32294209 | Set, Low Pressure (5") Piston Rings | 1 |
| 2-46 | 32294217 | Ring, Scraper (5") | 1 |
| 2-47 | 32295784 | Ring, Oil Control (5") | 1 |
| 2-48 | 95079927 | Capscrew, 5/16-18 X 1-3/4" Hex Head | 2 |
| 2-49 | 32294068 | O-Ring, High Pressure Valve Plate | 1 |
| 2-50 | 95318978 | Capscrew, 1/4-28 X 2-1/4" Hex Head | 1 |
| 2-51 | 95674677 | Washer, 3/8" Copper | 1 |
| 2-52 | 32294373 | Capscrew, 3/8-24 X 3-1/2" Hex Head | 1 |
| 2-53 | 32255903 | Washer, 1/4" Copper | 1 |
