Constant Speed Control IR 7T2 Compressor Parts
Regular price
₹0.00
Constant Speed Control IR 7T2 Compressor Parts
Regular price
₹0.00
DESCRIPTION
Constant Speed Control For Ingersoll Rand Type 30 - Model 7T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Constant Speed Control For Ingersoll Rand Type 30 - Model 7T2 from India.

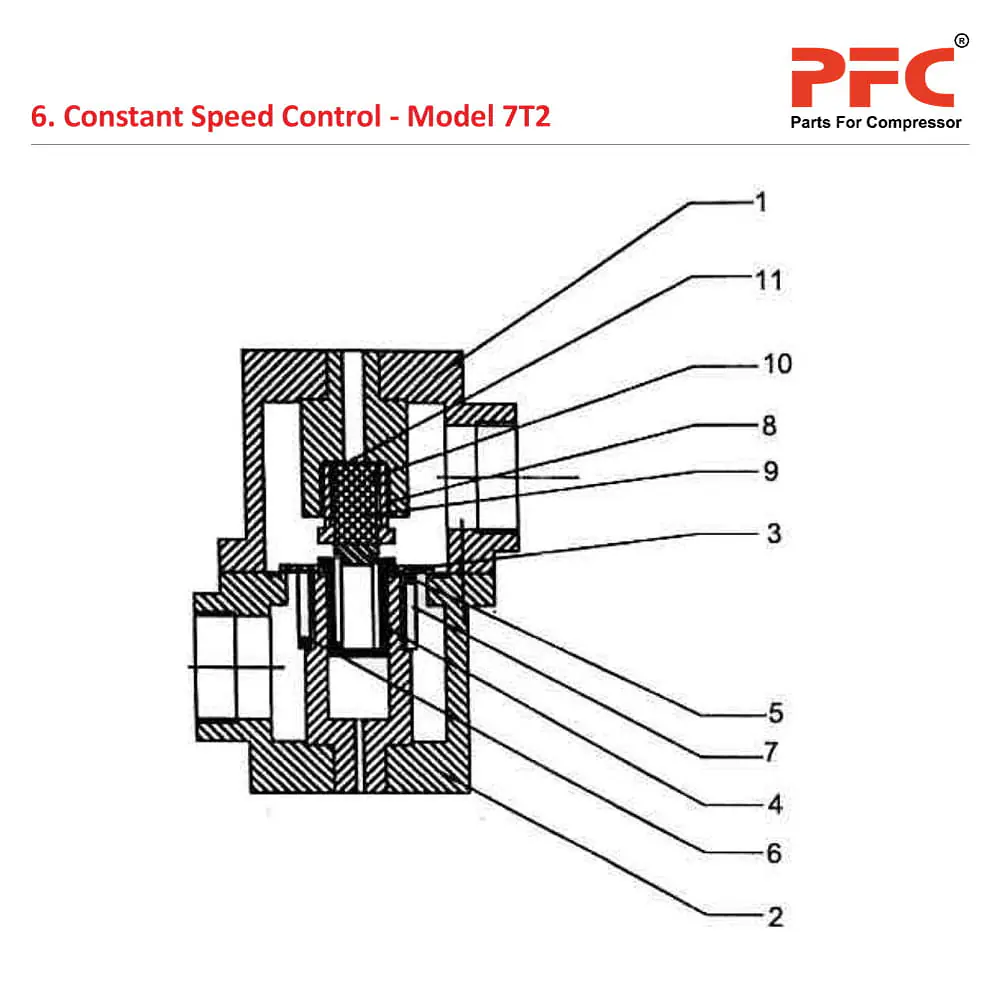

Constant Speed Control
| Sr.No | Ref. Part Number | Description | Qty |
| 6-0 | 30210686 | Constant Speed Control Assembly | 1 |
| 6-1 | 97052401 | – Body Top Csc | 1 |
| 6-2 | 97052385 | – Body Bottom Csc | 1 |
| 6-3 | 30216030 | – Plate Unloader Valve | 1 |
| 6-4 | 30285696 | – Cap Spring Inner | 1 |
| 6-5 | 30220834 | – Washer-Inner Spring | 1 |
| 6-6 | 30672091 | – Spring Csc - PP 597 Inner | 1 |
| 6-7 | 30672109 | – Spring Csc - PP Outer | 1 |
| 6-8 | 30298152 | – Unloader Cylinder | 1 |
| 6-9 | 30289797 | – Unloader Piston | 1 |
| 6-10 | 95018073 | – O Ring | 1 |
| 6-11 | 30346613 | – Washer Copper | 1 |
| 6-12 | 95035333 | – Cap Screw 3/8" X 1" HT | 4 |
| 6-13 | 30345227 | – Washer Flat 3/8" | 4 |
| 6-14 | 95056511 | Nipple 1-1/2" NPT | 1 |
| 6-15 | 95031860 | Elbow 5/16" Tube X 1/8" NPT | 1 |
