DESCRIPTION

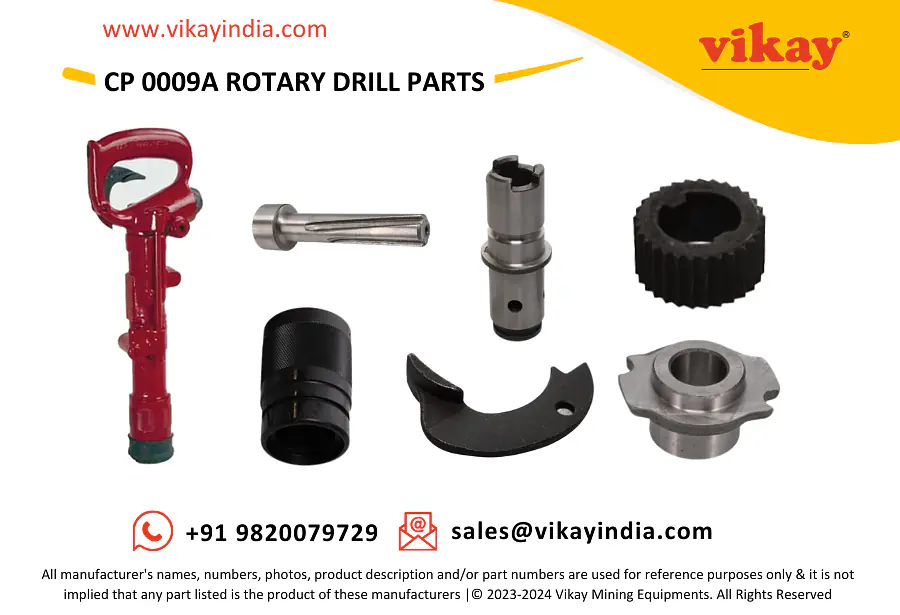

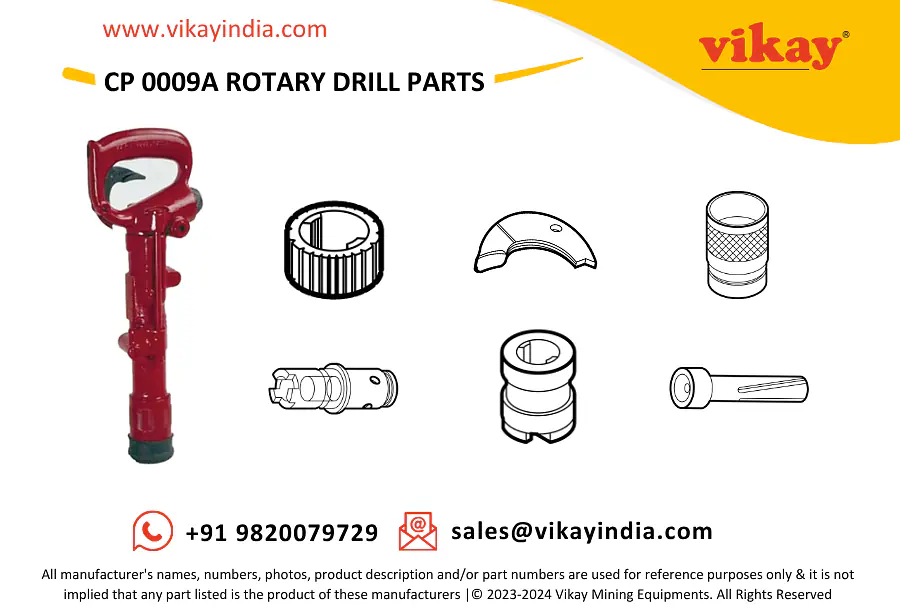

CP 0009A Rotary Drill Spare Parts
Vikay is a worldwide distributor of CP 0009A Rotary Drill Parts - suitable for Chicago Pneumatic CP 0009A Hand Drill from India.
| Sr. No | Description | Part number | Quantity |
| 1(2-11) | Handle, complete | R278018 | 1 |
| 2 | Bushing - air inlet - 3⁄8 in. NPTF (conical head) | R085893 | 1 |
| 3 | Spring - throttle valve | R085596 | 1 |
| 4 | Valve - throttle | R086329 | 1 |
| 5 | Seat - throttle valve | R086098 | 1 |
| 6 | Bushing - throttle valve | R085599 | 1 |
| 7 | Plug - pipe - 3⁄8 in. | C077941 | 1 |
| 8 | Felt - oil chamber | R085895 | 1 |
| 9 | Pin - throttle lever | A043627 | 1 |
| 10 | Lever - throttle | F027853 | 1 |
| 11 | Handle | - | 1 |
| 12 | Bolt - thru | F034249 | 2 |
| 13 | Rear valve seat | R085896 | 1 |
| 14 | Valve | R085897 | 1 |
| 15 | Front valve seat | R085898 | 1 |
| 16 | Cylinder | R085886 | 1 |
| 17 | Piston | F816122 | 1 |
| 18 | Cylinder bushing | R051356 | 1 |
| 19 | Ratchet ring | F816123 | 1 |
| 20(21-25) | Rotation release, complete | Z8294412 | 1 |
| 21 | Plug - pipe - 1⁄16 in. NPTF | C102507 | 1 |
| 22 | Spring - plunger | R051353 | 1 |
| 23 | Plunger - shifter detent | R051352 | 1 |
| 24 | Sleeve - shifter | F816124 | 1 |
| 25 | Plunger - shifter | R051351 | 1 |
| 26 | Pawl | R051355 | 2 |
| 27 | Spring - pawl | R085890 | 2 |
| 28 | Fronthead | F816120 | 1 |
| 29 | Plug - ball retainer | F061888 | 1 |
| 30 | Nut - thru bolt | S013073 | 2 |
| 31 | Chuck sleeve | R085900 | 1 |
| 32(33-36) | Round chuck, complete | Z8366412 | 1 |
| 33 | Chuck | - | 1 |
| 34 | Chuck retainer ball, complete | Z8767412 | 17 |
| Only avaible as kit with 17 balls | |||
| 35 | Ball - steel, complete | Z8768412 | 4 |
| Ø5⁄16 in. (7.9 mm). Only avaible as kit with 4 balls | |||
| 36 | Spring - sleeve retainer | R086605 | 1 |
| 37(38-41) | Retainer sleeve, complete | Z8375412 | 1 |
| 38 | Retainer | - | 1 |
| 39 | Retainer plate | F826683 | 1 |
| 40 | Retainer ring | F826893 | 1 |
| 41 | Dust excluder | F815343 | 1 |
| 42 | Data plate | - | 1 |
| 43 | Safety label | 3310160200 | 1 |
