DESCRIPTION

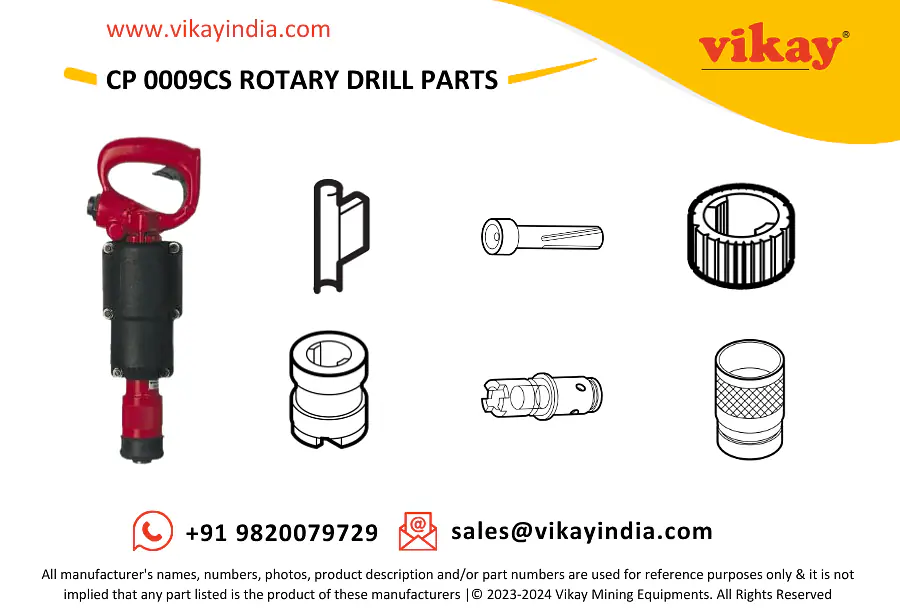

CP 0009CS Rotary Drill Spare Parts
Vikay is a worldwide distributor of CP 0009CS Rotary Drill Parts - suitable for Chicago Pneumatic CP 0009CS Hand Drill from India.
| No. | Description | Part number | Quantity |
| 1(2-11) | Handle, complete | F034496 | 1 |
| 2 | Bushing - air inlet - 3⁄8 in. BSP (collared head) | F064697 | 1 |
| 3 | Spring - throttle valve | R085596 | 1 |
| 4 | Valve - throttle | R086329 | 1 |
| 5 | O-ring - (special) | R086098 | 1 |
| 6 | Bushing - throttle valve | R085599 | 1 |
| 7 | Oil plug | C077941 | 1 |
| 8 | Felt - oil chamber | R085895 | 1 |
| 9 | Pin - throttle lever | A043627 | 1 |
| 10 | Lever - throttle | F027853 | 1 |
| 11 | Handle | - | 1 |
| 12 | Bolt - thru | F034249 | 2 |
| 13 | Rear valve seat | R085896 | 1 |
| 14 | Valve | R085897 | 1 |
| 15 | Front valve seat | R085898 | 1 |
| 16 | Cylinder | R085886 | 1 |
| 17 | Piston | F816122 | 1 |
| 18 | Cylinder bushing | R085887 | 1 |
| 19 | Ratchet ring | F816123 | 1 |
| 20 | Pawl | F034066 | 2 |
| 21 | Spring - pawl | R085890 | 2 |
| 22 | Fronthead | R136592 | 1 |
| 23 | Plug - ball retainer | F061888 | 1 |
| 24 | Nut - thru bolt | S013073 | 2 |
| 25 | Chuck sleeve | R085900 | 1 |
| 26(27-30) | Round chuck, complete | Z8366412 | 1 |
| 27 | Chuck | - | 1 |
| 28 | Chuck retainer ball, complete | Z8767412 | 17 |
| Only avaible as kit with 17 balls | |||
| 29 | Ball - steel, complete | Z8768412 | 4 |
| Ø5⁄16 in. (7.9 mm). Only avaible as kit with 4 balls | |||
| 30 | Spring - sleeve retainer | R086605 | 1 |
| 31(32-35) | Retainer sleeve, complete | Z8375412 | 1 |
| 32 | Retainer | - | 1 |
| 33 | Retainer plate | F826683 | 1 |
| 34 | Retainer ring | F826893 | 1 |
| 35 | Dust excluder | F815343 | 1 |
| 36 | Hose tail | F064695 | 1 |
| 37 | Gasket | F064696 | 1 |
| 38(39,40) | Muffler, complete | F826972 | 1 |
| 39 | Muffler | - | 2 |
| 40(41-43) | Screw, complete | Z3631412 | 1 |
| 41 | Capscrew | - | 6 |
| 42 | Washer | - | 12 |
| 43 | Nut | - | 6 |
| 44 | Data plate | - | 1 |
| 45 | Safety label | 3310160200 | 1 |
| 46 | Noise level label | - | 1 |
