DESCRIPTION

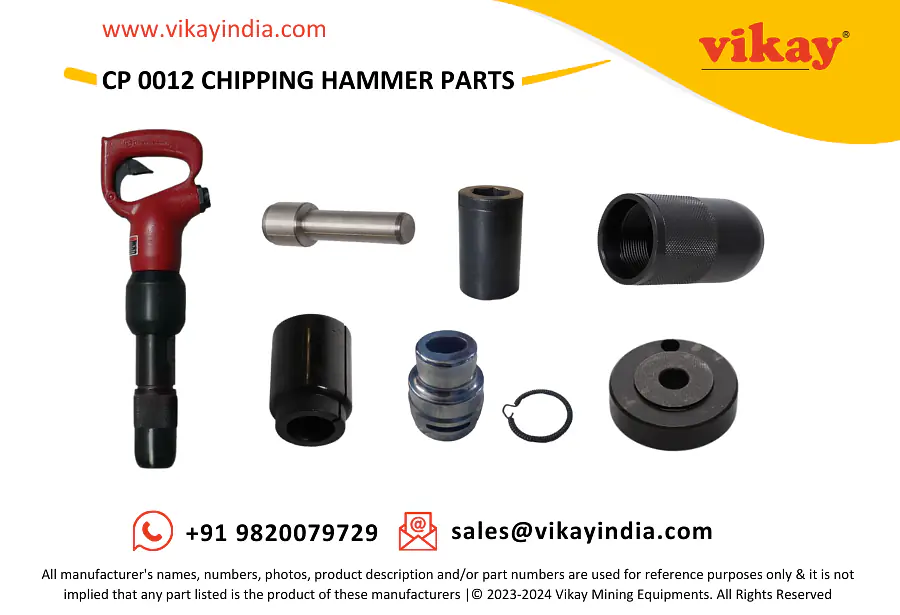

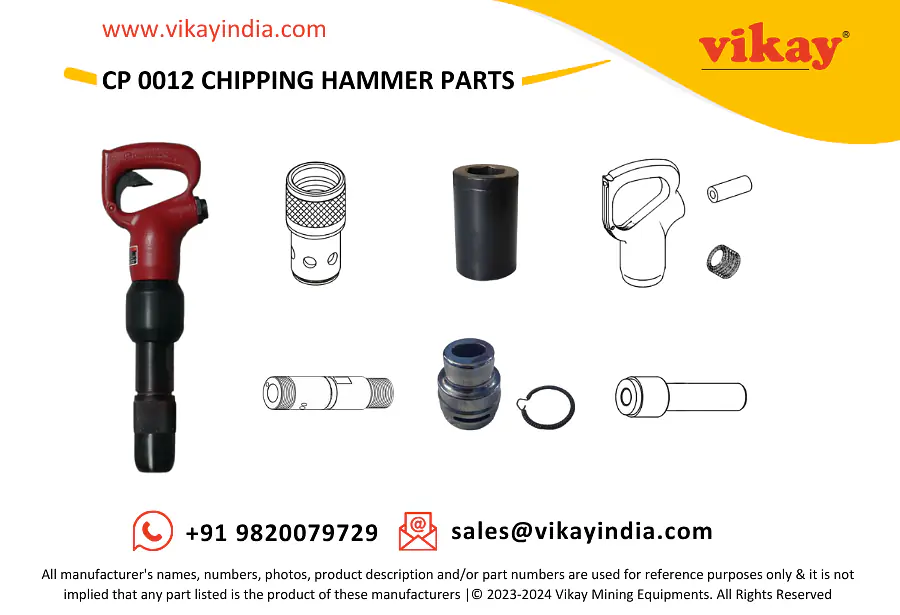

CP 0012 Chipping Hammer Spare Parts
Vikay is a worldwide distributor of CP 0012 Chipping Hammer Parts - suitable for Chicago Pneumatic Chipping Hammer from India.
| Sr. No | Description | Part No. | Qty. |
| 1 | Handle complete (Includes item No. 2, 3 & 4) | Z8360858 | 1 |
| 2 | Handle | 1 | |
| 3 | Plug - 1/16 x 27 NPTF | C102507 | 1 |
| 4 | Bushing - Throttle valve | 1 | |
| 5 | O-ring - Throttle valve | Q0132858 | 1 |
| 6 | Throttle valve | D3182858 | 1 |
| 7 | Spring - Throttle valve | R085596 | 1 |
| 8 | Air inlet bushing (BSP) | F064697 | 1 |
| 9 | Gasket - hose tail | F064696 | 1 |
| 10 | Hose tail (3/8" BSP) | F064695 | 1 |
| 11 | Lever - Throttle | F027853 | 1 |
| 12 | Pin - Throttle lever | A043627 | 1 |
| 13 | Washer 1.0 mm | Q4204858 | 2 |
| 14 | Muffler | H3740858 | 1 |
| 15 | Valve housing | Z3803858 | 1 |
| 16 | Main valve | D7368858 | 1 |
| 17 | Lower valve lid | D5090858 | 1 |
| 18 | Piston | D1579858 | 1 |
| 19 | Pin - Dowel (Pipe) | D7288858 | 1 |
| 20 | O-ring (Cylinder) | H0359858 | 1 |
| 21 | Cylinder | 1 | |
| 22 | Guide bush (19 mm Hex. x 50) | D8389858 | 1 |
| 23 | Retainer lock ring (dia. 39.2 x 3 mm) | H2228858 | 1 |
| 24 | Buffer | H2303858 | 1 |
| 25 | Retainer | C8788859 | 1 |
| 26 | Retainer complete (Ball type screw - on) (Optional) (Includes item No 27, 28, 29, 30, 31 & 32) | Z8389857 | 1 |
| 27 | Retainer | 1 | |
| 28 | Chuck retainer ball (Only available as set Z8754857 incl. 6 balls) | 6 | |
| 29 | Spring | H3437857 | 1 |
| 30 | Retainer sleeve | 1 | |
| 31 | External circlip | H3275857 | 1 |
| 32 | Cylinder (for spring type retainer) | 1 | |
| 33 | Bushing - Round | P001550 | 1 |
| 34 | Bushing - Hexagon | P001551 | 1 |
| 35 | Sleeve - Retainer (Includes item No. 36 & 37) | P107243 | 1 |
| 36 | Spring - Lock coil | P070994 | 1 |
| 37 | Sleeve - Retainer | 1 | |
| 38 | Air inlet bushing (NPTF) | R085893 | 1 |
| 39 | Ball type retainer, US-Standard (Optional) | 1 |
