DESCRIPTION

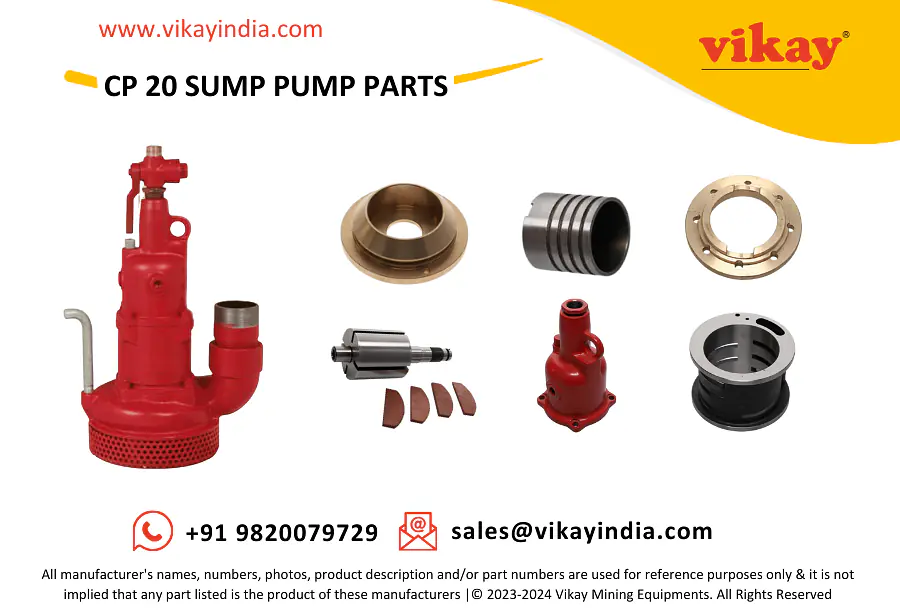

CP 0020 Sump Pump Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts for Chicago Pneumatic Sump Pump CP 0020 from India.
Sump Pump Cp-20 Parts
| Sr. No | Description | Ref. Part No. |
| 1 | Valve (3/4" male) | R137313 |
| 2 | Bushing - Air inlet | R137314 |
| 3 | Governor housing complete | C086466 |
| (Includes item No.4, 5, 6, 7 & 8) | ||
| 4 | O-ring | C084172 |
| 5 | Strainer - Air | C085374 |
| 6 | Plug - Oil | C086130 |
| 7 | O-ring | P083082 |
| 8 | Housing - Governor | C085366 |
| 9 | Spring | S017510 |
| 10 | O-ring | C079489 |
| 11 | Valve - Oiler | C085378 |
| 12 | O-ring | P083071 |
| 13 | Seat - Oiler valve | C085379 |
| 14 | Plug - Oiler | C085380 |
| 15 | Gasket - Governor housing | C085363 |
| 16 | O-ring | C085386 |
| 18 | Lock wire | C056975 |
| 19 | Screw | C056974 |
| 20 | Retainer - Governor spring | C089835 |
| 21 | Spring - Governor | C085372 |
| 22 | Valve - Governor | C085370 |
| 23 | Pin - Governor valve | C085371 |
| 24 | O-ring | C085385 |
| 25 | Cage - Governor | C085368 |
| 26 | Disc - Gage tension | C085369 |
| 27 | Lock washer | S008020 |
| 28 | Screw | S007685 |
| 29 | Governor body complete (Includes item | C086467 |
| No. 30, 32, 33, 34, 35, 36 & 37) | ||
| 30 | Body governor | -- |
| 32 | Nylon insert | -- |
| 33 | Pin - Governor push | -- |
| 34 | Weight - Governor | -- |
| 35 | Spacer - Governor weight | -- |
| 36 | Pin - Governor weight | -- |
| 37 | Retainer - Pin | -- |
| 38 | Bearing - Ball | C013654 |
| 39 | Plate - Upper end | *C085360 |
| 40 | Spacer - Rotor bearing (Upper) | C085358 |
| 41 | Rotor complete | Z8777463 |
| (Includes item No. 42 & 43) | ||
| 42 | Blade - Rotor | C085362 |
| 43 | Rotor | -- |
| 44 | Spacer - Rotor bearing (Lower) | C085357 |
| 45 | Shim complete | Z8778463 |
| (Includes item No.46, 47 & 48) | ||
| 46 | Shim (0.001") | -- |
| 47 | Shim (0.002") | -- |
| 48 | Shim (0.003") | -- |
| 49 | Pin - Dowel | C085355 |
| 50 | Liner | *C085361 |
| 51 | Plate - Lower end | *C085356 |
| 52 | O-ring | C086699 |
| 53 | Bearing - Ball | C085382 |
| 54 | Gasket - Seal plate | C088457 |
| 55 | O-ring | C084173 |
| 56 | Seal - Oil | C088616 |
| 57 | Plate - Seal | C088456 |
| 58 | Housing - Motor | C085348 |
| 59 | O-ring | H083084 |
| 60 | Plate - Upper wear | C088458 |
| 61 | Sleeve - Impeller | C088455 |
| 62 | O-ring | C084400 |
| 63 | Impeller | C088758 |
| 64 | Plate - Lower wear | C088459 |
| 65 | Housing - Impeller | -- |
| 66 | Screen | C085342 |
| 67 | Handle | C085347 |
| 68 | Nipple (2 1/2" BSP) | R137581 |
| 69 | Pipe - Exhaust (NPT) | C086080 |
| 70 | Pipe - Exhaust (BSP) | R137580 |
| 71 | Nut - Brass (3/8"-16) | C085384 |
| 72 | Lock washer (3/8") | C035166 |
| 73 | Stud (3/8" - 16 x 3/8") | C061078 |
| 74 | Shims (May be required if parts | C048412 |
| shown * are replaced) |
