CP 003 Chicago Pneumatic Backfill Tamper Parts
Regular price
₹0.00
CP 003 Chicago Pneumatic Backfill Tamper Parts
Regular price
₹0.00
DESCRIPTION

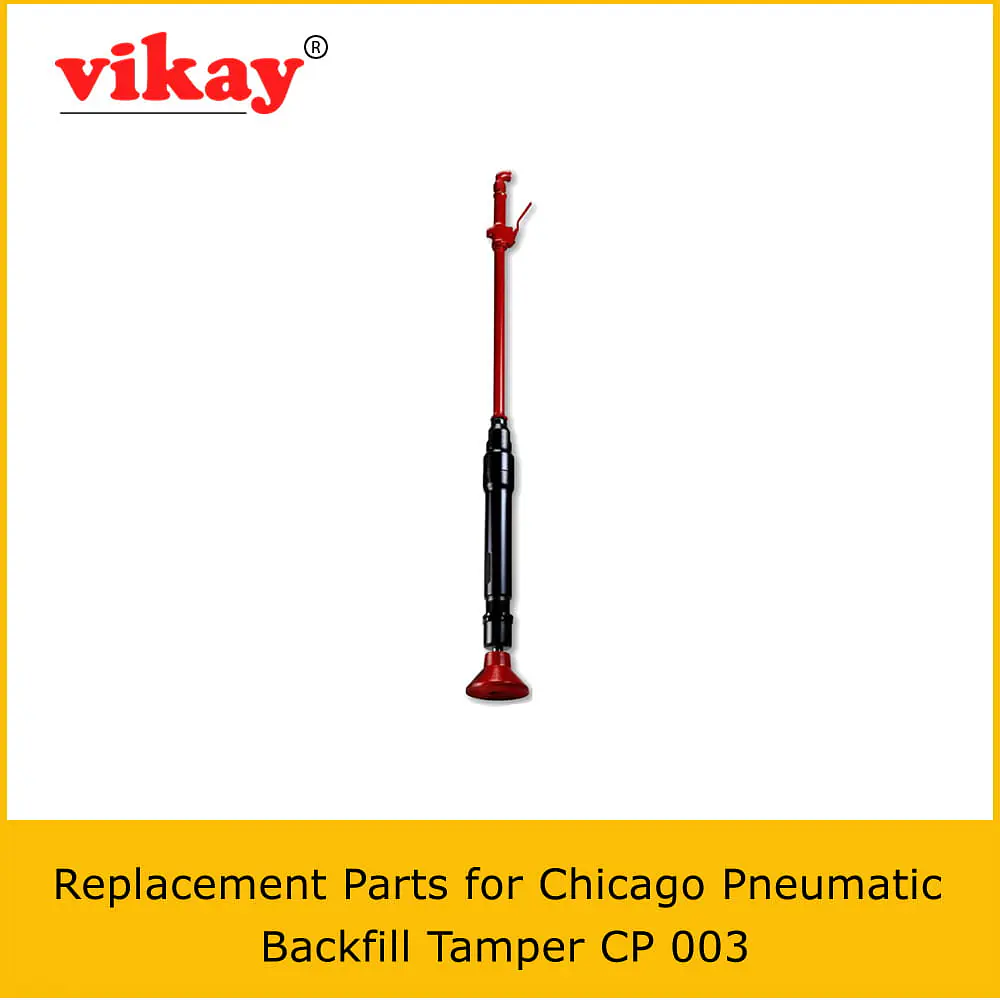

CP-003 Backfill Tamper Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Backfill Tamper CP-003 from India.

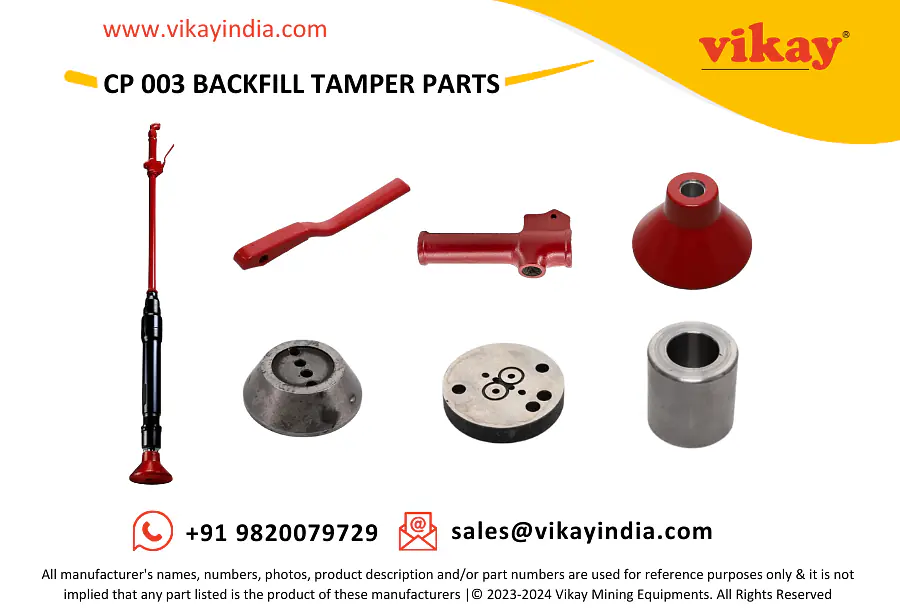

Backfill Tamper CP-003 Parts
| Sr. No | Description | Ref. Part No. | Quantity |
| 1 | 90°elbow - 1/2 in. | R072457 | 1 |
| 2 | Strainer - Air | 3303005220 | 1 |
| 3 | Lever - Valve | P001903 | 1 |
| 4 | Pin - lever | P001921 | 1 |
| 5 | Body - Throttle valve, complete | P007350 | 1 |
| 6 | Body - Throttle valve | - | 1 |
| 7 | Throttle valve bushing | P001814 | 1 |
| 8 | Valve - Throttle, complete | P087671 | 1 |
| 9 | O-ring | CA088867 | 1 |
| 10 | Valve - Throttle | - | 1 |
| 11 | Spring | P001858 | 1 |
| 12 | Guard | 3303005419 | 1 |
| 13 | Pipe - Extension | P071147 | 1 |
| 14 | Locknut - Pipe | F003087 | 2 |
| 15 | Cylinder head, complete | P078139 | 1 |
| 16 | Plug - Oil regulating | P084132 | 1 |
| 17 | Plug - pipe, Ø 1/4 in., Ø 6.5 mm | C068799 | 1 |
| 18 | Cylinder head | - | 1 |
| 19 | Lid - Upper case | P073185 | 1 |
| 20 | Valve | P071358 | 1 |
| 21 | Case - Valve | P073187 | 1 |
| 22 | Dowel - Valve case | P073120 | 2 |
| 23 | Lid - Lower case | P073118 | 1 |
| 24 | Dowel - Cylinder | P073119 | 2 |
| 25 | Piston | P089009 | 1 |
| 26 | Cylinder | - | 1 |
| 27 | Bushing - Piston rod | P070649 | 1 |
| 28 | Packing - Piston | P071390 | 1 |
| 29 | Bushing - Piston rod | P070646 | 1 |
| 30 | Locknut - Retainer | P070931 | 1 |
| 31 | Retainer - Piston bushing | P070651 | 1 |
| 32 | Deflector - Exhaust | P070643 | 1 |
| 33 | Butt (aluminum) ø127 mm 5 in. | P089008 | 1 |
| 34 | Locknut - Butt | P089006 | 1 |
| 35 | Data plate | - | 1 |
| 36 | Safety label "Read instructions" | 3310160200 | 1 |
| 37 | Sound power label | - | 1 |
| 38 | Cap valve screw | P001964 | 1 |
Accessories Butts
| No. | Description | Part Number | Quantity |
| - | Butt(cast iron)ø146 mm 5.75 in. | 3303005082 | 1 |
| - | Butt, concave(cast iron) | 3303005084 | 1 |
| - | Butt (aluminum) ø127 mm 5 in. | P089008 | 1 |
Accessories Hose rolls
| No. | Description | Part Number | Quantity |
| - | Red-X hose roll | 8900005010 | 1 |
| - | Red-X hose roll | 8900005011 | 1 |
| - | Red-X hose roll | 8900005012 | 1 |
| - | Red-X hose roll | 8900005020 | 1 |
| - | Red-X hose roll | 8900005021 | 1 |
| - | Red-X hose roll | 8900005022 | 1 |
Accessories Pre-mounted universal hoses with claw couplings
| No. | Description | Part Number | Quantity |
| - | Red-X universal hose | 8900005009 | 1 |
| - | Red-X universal hose | 8900005023 | 1 |
| - | Red-X universal hose | 8900005008 | 1 |
| - | Red-X universal hose | 8900005024 | 1 |
Accessories Water separator
| No. | Description | Part Number | Quantity |
| - | Water separator, European version (3/4 in. BSP) | 8900005000 | 1 |
| - | Water separator (3/4 in. NPT) | 8900005001 | 1 |
Accessories Lubricator
| No. | Description | Part Number | Quantity |
| 1 | Lubricator 1300 (1 in. BSP) | 8900005002 | 1 |
| 2 | Lubricator 43 (1 in. NPT) | 8900005007 | 1 |
