DESCRIPTION
CP-004RV Backfill Tamper Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Backfill Tamper CP-004RV from India.

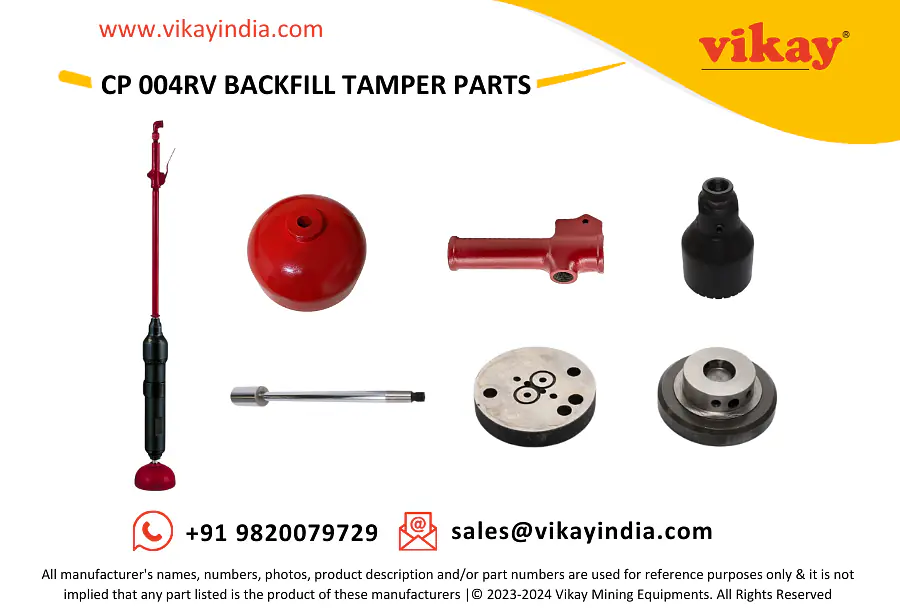

Backfill Tamper CP-004RV Parts
| Sr. No | Description | Part Number | Quantity |
| 1 | Elbow - Street (1/2 " - 90) | R072457 | 1 |
| 2 | Strainer - Air | P001995 | 1 |
| 3 | Lever - Valve | P001903 | 1 |
| 4 | Pin - Lever | P001921 | 1 |
| 5 | Body - Throttle valve (Includes item No. 6 & 7) | P007350 | 1 |
| 6 | Body - Throttle valve | 1 | |
| 7 | Bushing - Throttle valve | P001814 | 1 |
| 8 | Valve -Throttle (Includes item No. 9 & 10) | P087671 | 1 |
| 9 | O-ring | CA088867 | 1 |
| 10 | Valve -Throttle | 1 | |
| 11 | Spring - Throttle valve | P001858 | 1 |
| 12 | Cap - Valve | P001964 | 1 |
| 13 | Pipe - Extension | P071147 | 1 |
| 14 | Locknut - Pipe | F003087 | 2 |
| 15 | Cylinder - Head assembly (Includes item No. 16, 17 & 18) | P079695 | 1 |
| 16 | Plug - Oil regulating | P084132 | 1 |
| 17 | Plug - Filler | C068799 | 1 |
| 18 | Cylinder - Head | 1 | |
| 19 | Clip - Cylinder head lock | P084464 | 1 |
| 20 | Lid - Valve | P009667 | 1 |
| 21 | Valve | P009665 | 1 |
| 22 | Block - Valve | P009666 | 1 |
| 23 | Pin - Block dowel | A043627 | 2 |
| 24 | Piston (Threaded end) | P089043 | 1 |
| 25 | Clip - Exhaust | P009674 | 1 |
| 26 | Cylinder bushing assembly (Includes item No. 27, 28 & 29) | P084463 | 1 |
| 27 | Cylinder | 1 | |
| 28 | Pin - Cylinder bushing | S001157 | 1 |
| 29 | Bushing - Cylinder | P074473 | 1 |
| 30 | Clip - Lock nut | P084466 | 1 |
| 31 | Packing - Piston | P089320 | 1 |
| 32 | Sleeve - Piston gland | P009678 | 1 |
| 33 | Nut - Piston gland | P084465 | 1 |
| 34 | Butt - 6 1/4 “ diameter | P089050 | 1 |
| 35 | Locknut - Butt | P089045 | 1 |
