CP 0077 Chicago Pneumatic Sludge Pump
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description

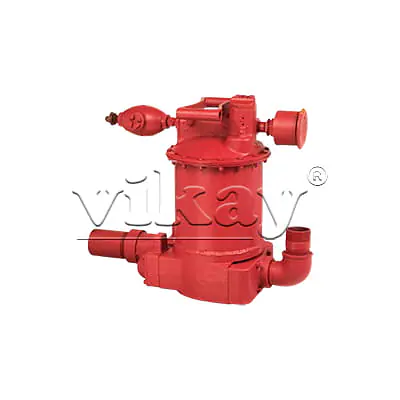

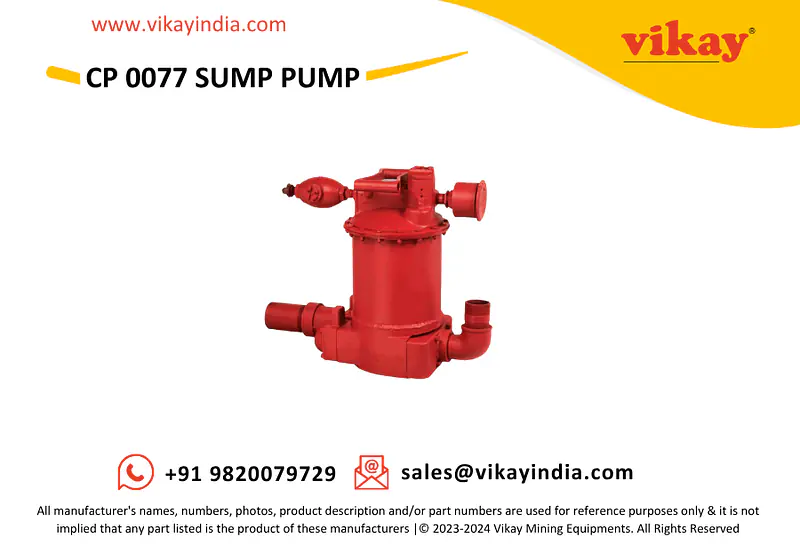

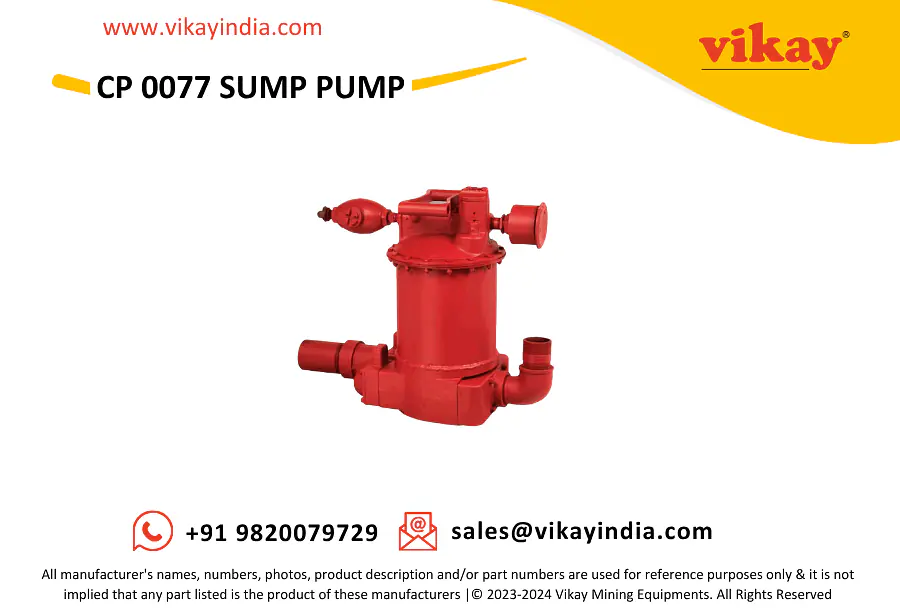

CP 0077 Chicago Pneumatic Sludge Pump
| Particulars | CP 0077 | |
| Power | kW | - |
| Weight | kg | 69 |
| Min opening needed | mm | 584x268 |
| Min water depth | mm | - |
| Max suction lift | m | 6,1 |
| Max head | m | 53 |
| Air consumption | l/s | 40 |
| Air inlet | inch | 3/4" NPT |
| Air outlet | inch | 1" NPT |
| Discharge inlet | inch | 3" BSP |
| Discharge outlet | inch | 2½" NPT |
| Max solid content | 15% | |
| Sound power level guaranteed (2000/14/EC) 1) | dB(A) | 111 |
| Sound pressure level (ISO 11203) 1) | dB(A) | 98 |
| Sound power uncertainty value K | dB(A) | 2,5 |
| Recommended air supply hose size | mm | 25 |
| Part number (at 6 bar) | T024005 | |
| Stock Code No. | Z0020465 |
