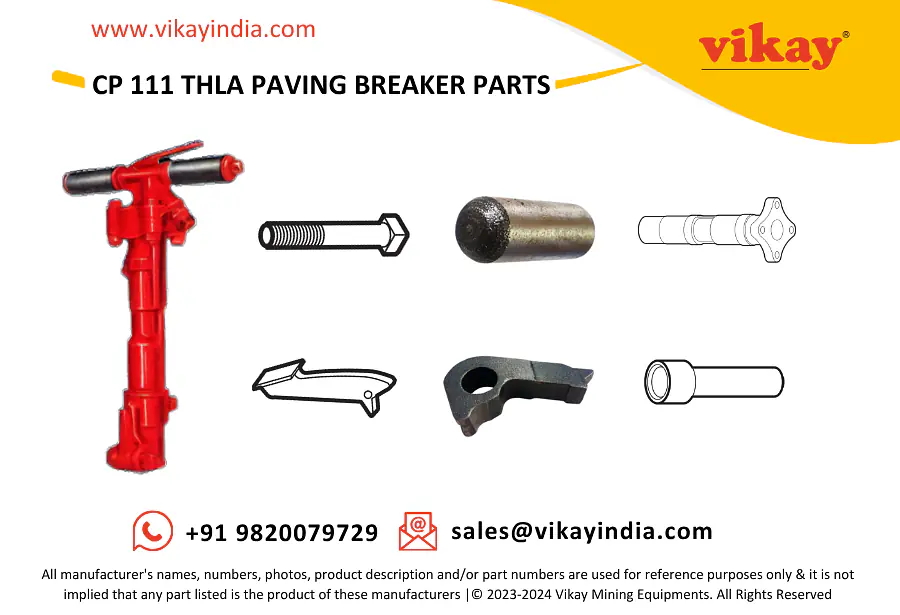

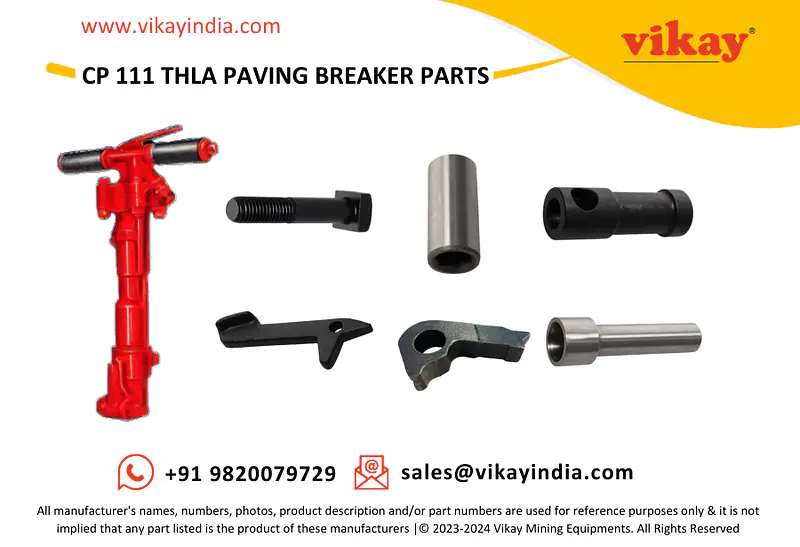

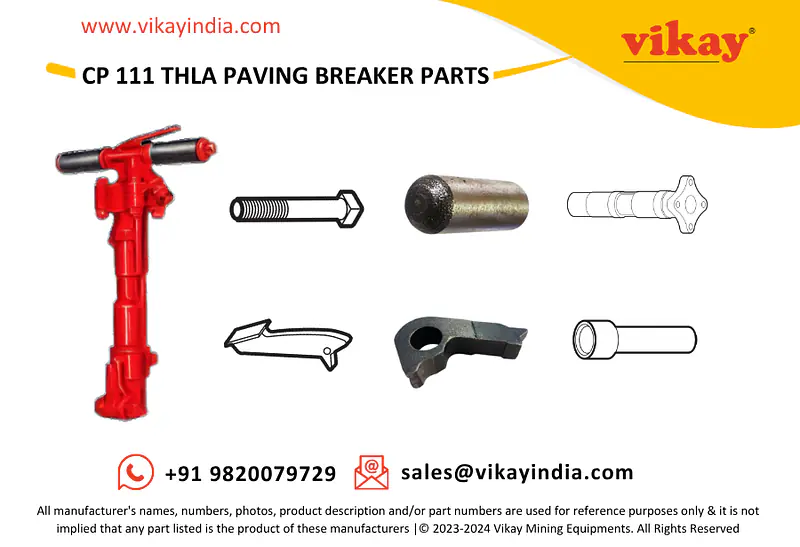

CP 111 THLA Paving Breaker Spare Parts
Regular price
₹1.00
CP 111 THLA Paving Breaker Spare Parts
Regular price
₹1.00
DESCRIPTION
CP 111 THLA Paving Breaker Spare Parts
Vikay is a worldwide distributor of CP 111 THLA Paving Breaker Spare Parts - suitable Chicago Pneumatic CP 111 THLA Paving Breaker for from India.
CP 111 THLA Chicago Pneumatic Paving Breaker Parts
| Sr. No | Description | Part Number | Quantity |
| 1 | Backhead (Double grip) complete | ||
| (Includes item Nos. 2, 3, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15 & 16) | |||
| 2 | Lever - Throttle valve | R070110 | 1 |
| 3 | Handle - Rubber | R005716 | 2 |
| 4 | Backhead (Double grip) (Includes item Nos. 8, 9 & 10) | R070105 | |
| 5 | Plug - Oil | R000560 | 1 |
| 6 | Pin -Trigger | R133433 | 1 |
| 7 | Nipple - Air inlet | R075227 | 1 |
| 8 | Backhead | 1 | |
| 9 | Bushing - Throttle valve | R070106 | 1 |
| 10 | Bushing - Throttle valve stem | R070109 | 1 |
| 11 | Valve - Throttle (Includes item No.12, 13, 14 & 15) | R045370 | 1 |
| 12 | Valve - Throttle | 1 | |
| 13 | Seal - Valve | 1 | |
| 14 | Retainer - Seal | 1 | |
| 15 | Spring - Throttle valve | 1 | |
| 16 | Plug - Throttle valve bushing | R070108 | 1 |
| 17 | Backhead complete - Outside trigger | ||
| (Includes item No. 7, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28 & 29) | |||
| 18 | Backhead (Includes item No. 19, 23 & 24) | R070114 | 1 |
| 19 | Backhead | 1 | |
| 20 | Pin - Lever | A043627 | 1 |
| 21 | Lever - Throttle valve | P003070 | 1 |
| 22 | Pin - Push | P005156 | 1 |
| 23 | Bushing - Throttle valve | P005154 | 1 |
| 24 | Bushing - Push pin | P005157 | 1 |
| 25 | O-ring | 1 | |
| 26 | Valve - Throttle | 1 | |
| 27 | Retainer - O-ring | 1 | |
| 28 | Spring - Throttle | 1 | |
| 29 | Plug - Throttle valve | P001884 | 1 |
| 30 | Backhead complete - Inside trigger | ||
| (Includes item No. 7, 20,22, 23, 24, 25, 26, 27, 28, 29 ,31& 32) | |||
| 31 | Backhead | 1 | |
| 32 | Lever - Throttle valve | R093103 | 1 |
| 33 | Backhead and Extension handle complete | R079043 | |
| (Includes item No. 5, 7, 10, 12, 13, 14, 15, 35, 36, 37, 38 & 39) | |||
| 35 | Handle - Extension | 1 | |
| 36 | Plug - Oil regulating | R004976 | 1 |
| 37 | Lever - Throttle valve | P001903 | 1 |
| 38 | Cam - Lever | R085220 | 1 |
| 39 | Pin - Lever | P001921 | 2 |
| 63 | Throttle valve complete (Includes item No. 25, 26, 27 & 28) | Z8249416 | 1 |
| Sr. No | Description | Part Number | Quantity |
| 40 | Valve | R070103 | 1 |
| 41 | Block - Valve | R070104 | 1 |
| 42 | Piston | R070102 | 1 |
| 43 | Cylinder (Includes item No. 44 & 45) | 1 | |
| 44 | Cylinder | 1 | |
| 45 | Bushing - Chuck (1" Hex x 4 1/4") | R070112 | 1 |
| 46 | Nut - Backhead bolt (9/16"-18) | P006099 | 4 |
| 47 | Bolt - Backhead (9/16" - 18) | R070111 | 4 |
| 48 | Latch type retainer (Includes item No.49, 50, 51, 52, 53, | R092500 | 1 |
| 54, 55, 56, 57, 58 & 59) | |||
| 49 | Head - Latch retainer | 1 | |
| 50 | Nut - Head latch (1/2" - 13) | R000555 | 1 |
| 51 | Lockwasher - Head latch | C036717 | 1 |
| 52 | Bolt - Head latch (1/2" - 13 x 2 3/4") | P002123 | 1 |
| 53 | Bolt - Latch retainer (5/8"-18 x 3 1/2") | R092498 | 1 |
| 54 | Bushing - Latch retainer bolt | R092499 | 1 |
| 55 | Nut - Latch retainer (5/8" - 1.8) | P081091 | 1 |
| 56 | Spring - Latch retainer plunger | R086982 | 1 |
| 57 | Plunger - Latch retainer | R092497 | 1 |
| 58 | Bushing - Latch retainer | R048540 | 1 |
| 59 | Retainer - Latch | R092493 | 1 |
| 60 | Cylinder (Includes item No. 61 & 62) | 1 | |
| 61 | Cylinder | 1 | |
| 62 | Bushing - Chuck (7/8" Hex x 3 1/4") | F813919 | 1 |
Useful information
| Tool model | Chuck size | Backhead/Handle type | Throttle Lever | Part no. |
| CP0111 CHLA | 1" Hex. X 4 1/4" | Closed Handle | Outside trigger | T022078 |
| CP0111 THLA | 1" Hex. X 4 1/4" | Double grip | Outside trigger | T022079 |
| CP0111 Ext. Hdle. | 1" Hex. X 4 1/4" | Extended double grip | Outside trigger | T019354 |
| CP0111 CHIT PIC (7/8") | 7/8" Hex. X 3 1/4" | Closed Handle | Inside trigger | 8900000142 |
