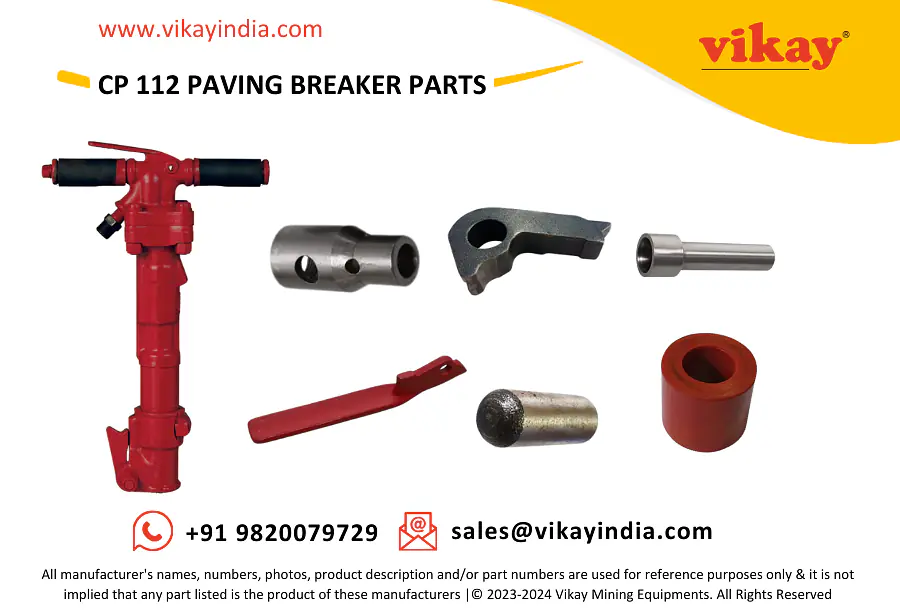

CP 112 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
CP 112 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION
CP 112 Chicago Pneumatic Paving Breaker Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts CP 112 Chicago Pneumatic Paving Breaker Parts from India.
CP 112 Chicago Pneumatic Paving Breaker Parts
| Sr. No | Description | Part No. | Qty |
| 1 | Lever - Throttle valve | R070110 | 1 |
| 2 | Handle - Rubber | R005716 | 2 |
| 3 | Plug - Oil | R000560 | 1 |
| 4 | Pin - Trigger | R133433 | 1 |
| 5 | Nipple - Air linlet | R075227 | 1 |
| 6(7-9) | Backhead, complete | R070105 | 1 |
| 7 | Backhead | - | 1 |
| 8 | Bushing - Throttle valve | R070106 | 1 |
| 9 | Bushing - Throttle valve stem | R070109 | 1 |
| 10(11-14) | Valve - Throttle, complete | R045370 | 1 |
| 11 | Valve - Throttle | - | 1 |
| 12 | Seal - Valve | - | 1 |
| 13 | Retainer - Seal | - | 1 |
| 14 | Spring - Throttle valve | - | 1 |
| 15 | Plug - Throttle valve bushing | R070108 | 1 |
| 16 | Valve | R070103 | 1 |
| 17 | Block - Valve | 3303005135 | 1 |
| 18 | Piston | R070102 | 1 |
| 19 | Cylinder | 1 | |
| 20 | Bushing Hexagon, 1" x 41⁄4" | R070112 | 1 |
| 21 | Nut - Backhead bolt 9⁄16" -18 | P006099 | 4 |
| 22 | Bolt - Backhead 9⁄16" -18 | R070111 | 4 |
| 23(24-34) | Latch retainer, complete | R092500 | 1 |
| 24 | Head - Latch retainer | 1 | |
| 25 | Nut - Head latch 1⁄2" -13 | R000555 | 1 |
| 26 | Lockwasher - Head latch | C036717 | 1 |
| 27 | Bolt - Head latch 1⁄2" -13 x 23⁄4" | P002123 | 1 |
| 28 | Bolt - Latch retainer 5⁄8" -18 x 31⁄2" | R092498 | 1 |
| 29 | Bushing - Latch retainer bolt | R092499 | 1 |
| 30 | Nut - Latch retainer 5⁄8" -18 | P081091 | 1 |
| 31 | Spring - Latch retainer plunger | R086982 | 1 |
| 32 | Plunger - Latch retainer | R092497 | 1 |
| 33 | Bushing - Latch retainer | R048540 | 1 |
| 34 | Retainer - Latch | R092493 | 1 |
